COGIS - WELL SCOUT CARD

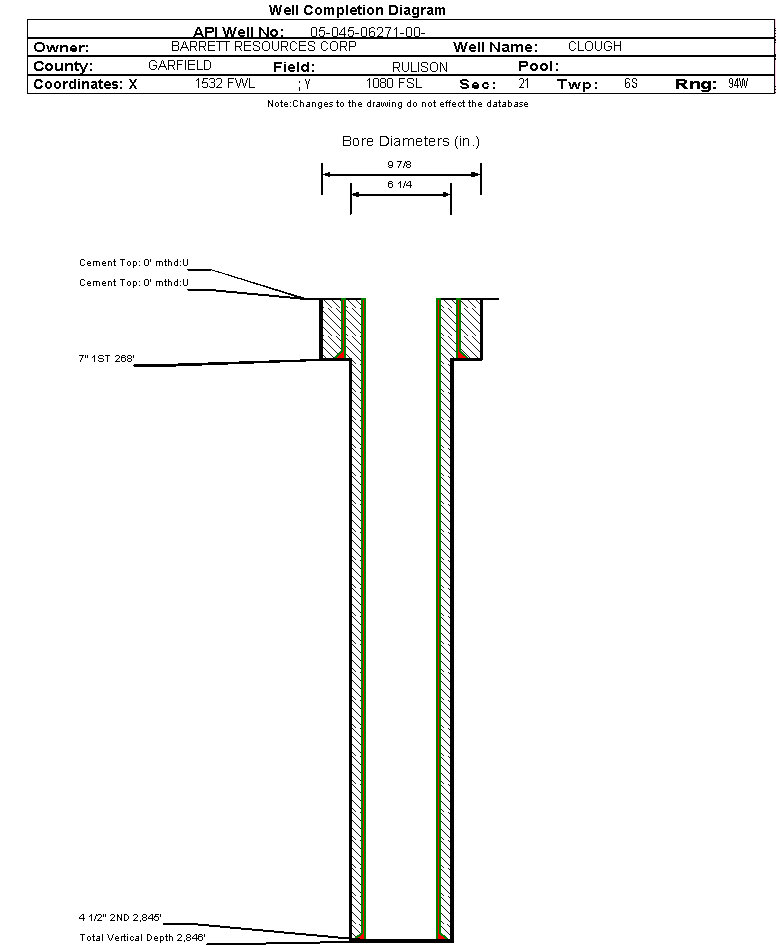

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06271		Well Classification: GW Status: PR - 11/24/1980
Well Name/No:CLOUGH #111
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12932
Facility Status:PRStatus Date11/24/1980
FacilityID:210515LocationID:322441
County:GARFIELD #045Location:SESW 21 6S94W 6
Field:RULISON - #75400Elevation:5290 ft.
Basin:PICEANCE BASIN
Planned Location:1080FSL  1532 FWLLat/Long: 39.506329 / -107.897310Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506516 / -107.897378Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/24/1980             Measured TD: 2846 ft.    Vertical TD: 2846 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/24/1980
Wellbore Permit
Permit #:800683 Expiration Date:6/6/1981
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:11/21/1980
Measured TD:2846 ft.Measured PB depth:2838 ft.
True Vertical TD:2846 ft.True Vertical PB depth:
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 268 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 2845 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 11/24/1980

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:104.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
No Perforation Data was found for formation WSTC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10800
GOR900000
GOR DeterminationMCFE
Average BOE per Day5.133
Average MCFE per Day29.796

 Federal Financial Assurance  i

 Tribal Well  i No
