COGIS - WELL SCOUT CARD

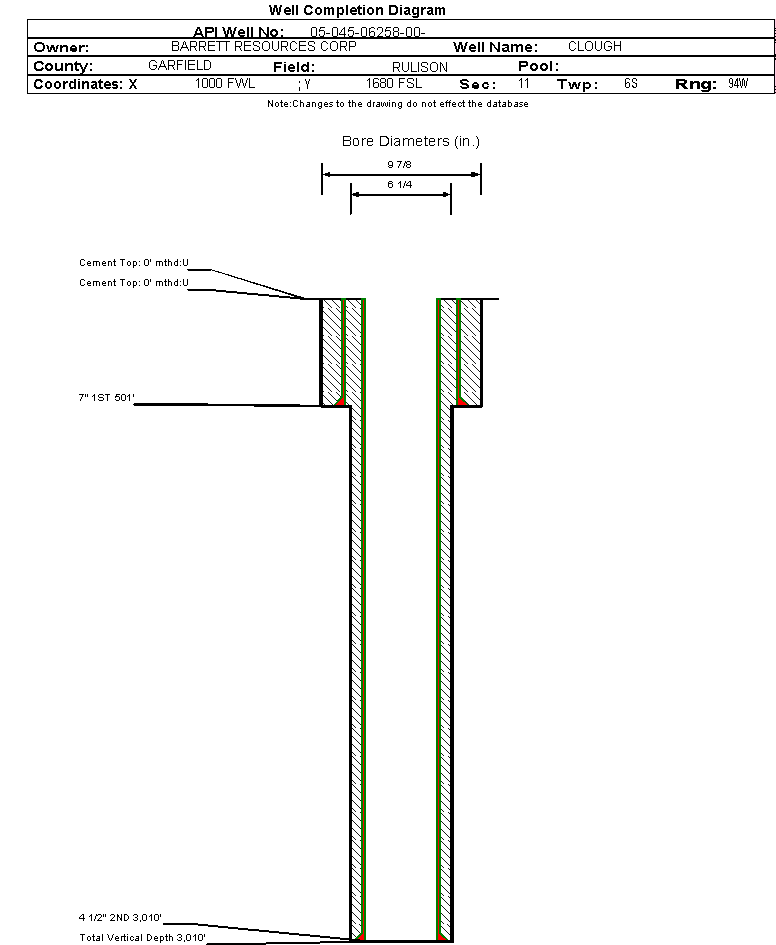

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06258		Well Classification: GW Status: PR - 9/18/1980
Well Name/No:CLOUGH #119
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12937
Facility Status:PRStatus Date9/18/1980
FacilityID:210502LocationID:322434
County:GARFIELD #045Location:NWSW 11 6S94W 6
Field:RULISON - #75400Elevation:5594 ft.
Basin:PICEANCE BASIN
Planned Location:1680FSL  1000 FWLLat/Long: 39.537039 / -107.861399Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.537519 / -107.861221Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/18/1980             Measured TD: 3010 ft.    Vertical TD: 3010 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/18/1980
Wellbore Permit
Permit #:800284 Expiration Date:7/19/1980
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 171, Drill Unit:
Wellbore Completed
Completion Date:9/30/1980
Measured TD:3010 ft.Measured PB depth:2965 ft.
True Vertical TD:3010 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 501 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 501 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 3010 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 0 ft., Bottom: 3010 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 9/18/1980                 Interval Top: 1660 ft.    Interval Bottom: 2947 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:308.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:2853 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:1660 ft.# Of Holes:
Interval Bottom:2947 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9413
GOR784416
GOR DeterminationMCFE
Average BOE per Day4.477
Average MCFE per Day25.975

 Federal Financial Assurance  i

 Tribal Well  i No
