Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-06216		Well Classification: GW	Status: PR - 1/1/2020
Well Name/No:	FEDERAL-RULISON #8 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	12919
Facility Status:	PR	Status Date	1/1/2020
FacilityID:	210460	LocationID:	311534
County:	GARFIELD #045	Location:	SESW 12 6S94W 6
Field:	RULISON - #75400	Elevation:	5440 ft.
Basin:	PICEANCE BASIN
Planned Location:	1050FSL 1500 FWL	Lat/Long: 39.535489 / -107.840779	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.535663 / -107.840710	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

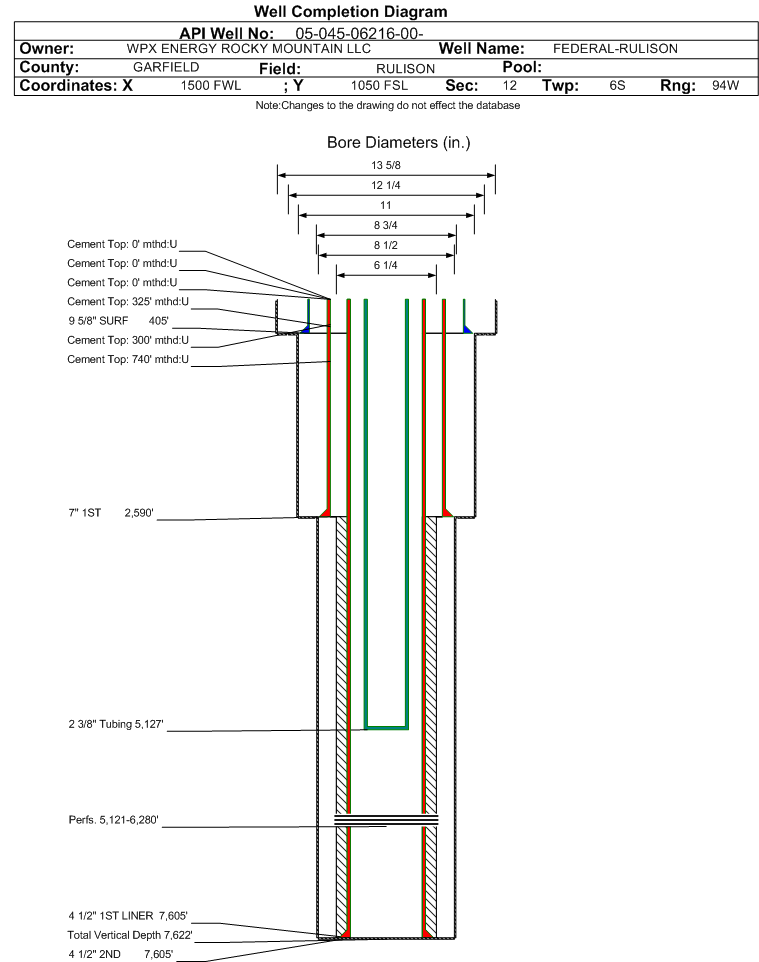

Wellbore #00 Wellbore Classification: GW Status: PR - 1/1/2020 Measured TD: 7622 ft. Vertical TD: 7622 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 1/1/2020
Wellbore Permit
Permit #:	800507	Expiration Date:	5/10/1980
Proposed Depth/Form:
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEDERAL	Surface Owner:	Not available
Unit:		Unit Number:	C-27822
Formation And Spacing:	Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 327, Drill Unit:

Wellbore Completed
Completion Date:	10/1/1980
Spud Date:	6/26/1980	Spud Date Is:	ACTUAL
Measured TD:	7622 ft.	Measured PB depth:	6430 ft.
True Vertical TD:	7622 ft.	True Vertical PB depth:
Casing:	String Type: SURF, Hole Size: , Size: 9.625 in., Top: , Depth: 405 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 300 ft., Bottom: , Determination Method:
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 405 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST, Hole Size: , Size: 7 in., Top: , Depth: 2590 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 325 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 2590 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 7605 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST LINER, Hole Size: , Size: 4.5 in., Top: , Depth: 7605 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 740 ft., Bottom: , Determination Method:
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH	0 ft.
MESAVERDE	4820 ft.

Formation WMFK Formation Classification: GW Status: PR - 1/1/2020 Interval Top: 5121 ft. Interval Bottom: 6280 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	10/19/1980	Choke Size:	0.234 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	10/1/1980
Treatment Summary:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	5127 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
CALC_MCF_GAS	1500

Perforation Data:
Interval Top:	5121 ft.	# Of Holes:	24
Interval Bottom:	6280 ft.	Hole Size:

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	6
Total Gas Produced (MCF)	4824
GOR	804000
GOR Determination	MCFE
Average BOE per Day	2.294
Average MCFE per Day	13.307

Federal Financial Assurance

Tribal Well
