Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2022 Measured TD: 6763 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2022 | | Wellbore Permit | | | Permit #: | 790853 | Expiration Date: | 4/18/1980 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit: W2 |
| | |

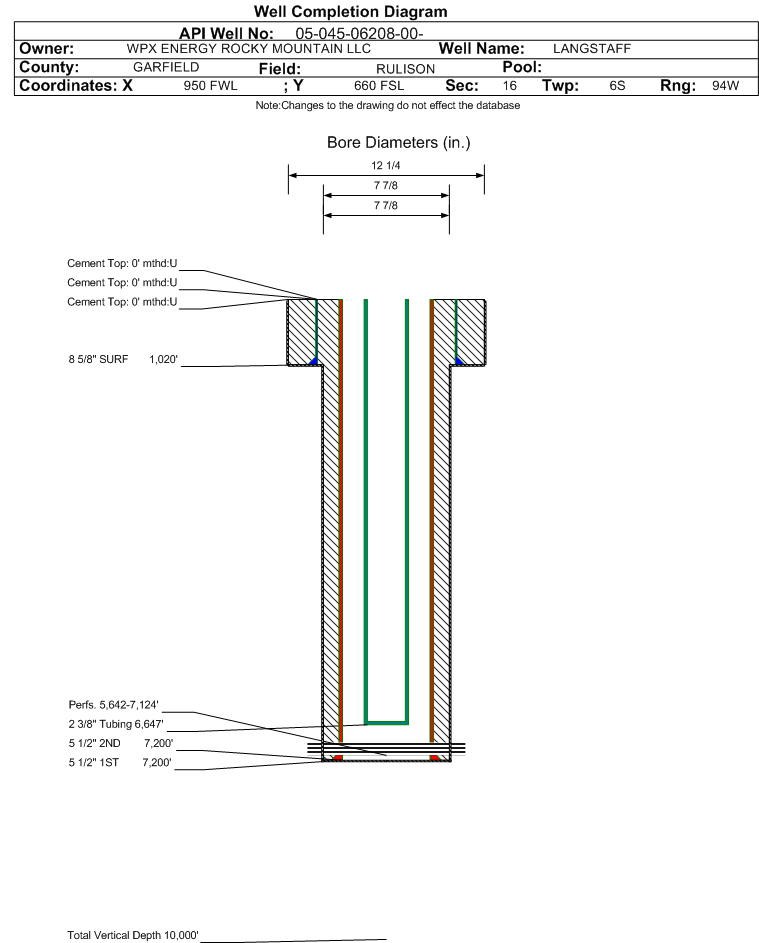

| Wellbore Completed | | Completion Date: | 4/14/1980 | | Spud Date: | 12/29/1979 | Spud Date Is: | ACTUAL | | Measured TD: | 6763 ft. | Measured PB depth: | 7190 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1020 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 755, Top: , Bottom: 1020 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7200 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7200 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 137, Top: , Bottom: 7200 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | | N | N | | OHIO CREEK | 4445 ft. | | N | N | | MESAVERDE | 4500 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/1/2022 Interval Top: 5642 ft. Interval Bottom: 7124 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/14/1980 | | Treatment Summary: | ORIGINAL COMPLETIN 5642-7124' HAD 47 PERFORATIONS AND WAS STIMULATED 03/19/1980. CURRESNT COMPLETION COVERS SAME GROSS INTERVAL, WITH AN ADDITIONAL 18 PERFORATIONS AND A RE-STIMULATION OF THE LOWER MESAVERDE (6321-7124') |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6647 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/2/2000 | Test Method: | FLOWING | | Hours Tested: | 12 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 6 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 368 | | CASING_PRESS | 526 | | MCF_GAS | 184 | | TUBING_PRESS | 378 |
| | Perforation Data: | | Interval Top: | 5642 ft. | # Of Holes: | 65 | | Interval Bottom: | 7124 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 9055 |
| GOR | 754583 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.312 |
| Average MCFE per Day | 25.032 |
| Federal Financial Assurance | i | |
|
|
