COGIS - WELL SCOUT CARD

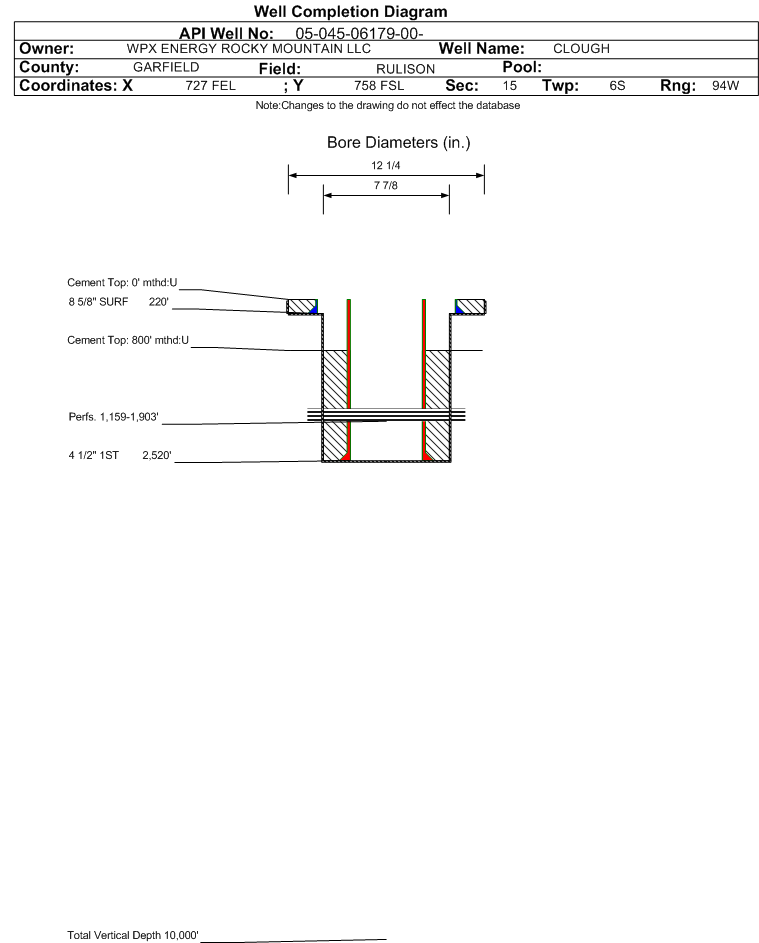

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06179		Well Classification: GW Status: PR - 10/1/1993
Well Name/No:CLOUGH #101
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12925
Facility Status:PRStatus Date10/1/1993
FacilityID:210423LocationID:322405
County:GARFIELD #045Location:SESE 15 6S94W 6
Field:RULISON - #75400Elevation:5525 ft.
Basin:PICEANCE BASIN
Planned Location:758FSL  727 FELLat/Long: 39.519969 / -107.867689Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.519990 / -107.867656Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/1993             Measured TD: 2520 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/1993
Wellbore Permit
Permit #:781086 Expiration Date:2/25/1979
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:6/5/1979
Spud Date:4/21/1979Spud Date Is:ACTUAL
Measured TD:2520 ft.Measured PB depth:2476 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: HISTORICAL
Cement:Sacks: 140, Top: 0 ft., Bottom: 220 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 2520 ft., Weight: 10.5 , Citings Type: HISTORICAL
Cement:Sacks: 550, Top: 800 ft., Bottom: 2520 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 6/5/1979                  Interval Top: 1159 ft.    Interval Bottom: 1903 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/5/1979Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CASING_PRESS 216
MCF_GAS 573
TUBING_PRESS 213
Perforation Data:
Interval Top:1159 ft.# Of Holes:
Interval Bottom:1903 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11527
GOR886692
GOR DeterminationMCFE
Average BOE per Day5.479
Average MCFE per Day31.794

 Federal Financial Assurance  i

 Tribal Well  i No
