 Surface Location
 API# 05-039-06392		Well Classification: OW Status: PR - 6/1/2025
Well Name/No:MILLER #6-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RENEGADE OIL & GAS COMPANY LLC - 74165
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2025
FacilityID:209487LocationID:322173
County:ELBERT #039Location:SWNE 6 6S62W 6
Field:COMANCHE CREEK - #11627Elevation:5753 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  1980 FELLat/Long: 39.558607 / -104.372932Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.558500 / -104.372870Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/1/2025             Measured TD: 7710 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/1/2025
Wellbore Permit
Permit #:19811718 Expiration Date:1/29/1982
Proposed Depth/Form:7750 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 40, Drill Unit: SWNE
Wellbore Completed
Completion Date:12/5/1981
Spud Date:11/4/1981Spud Date Is:ACTUAL
Measured TD:7710 ft.Measured PB depth:7690 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: CNFD, DI-SFL

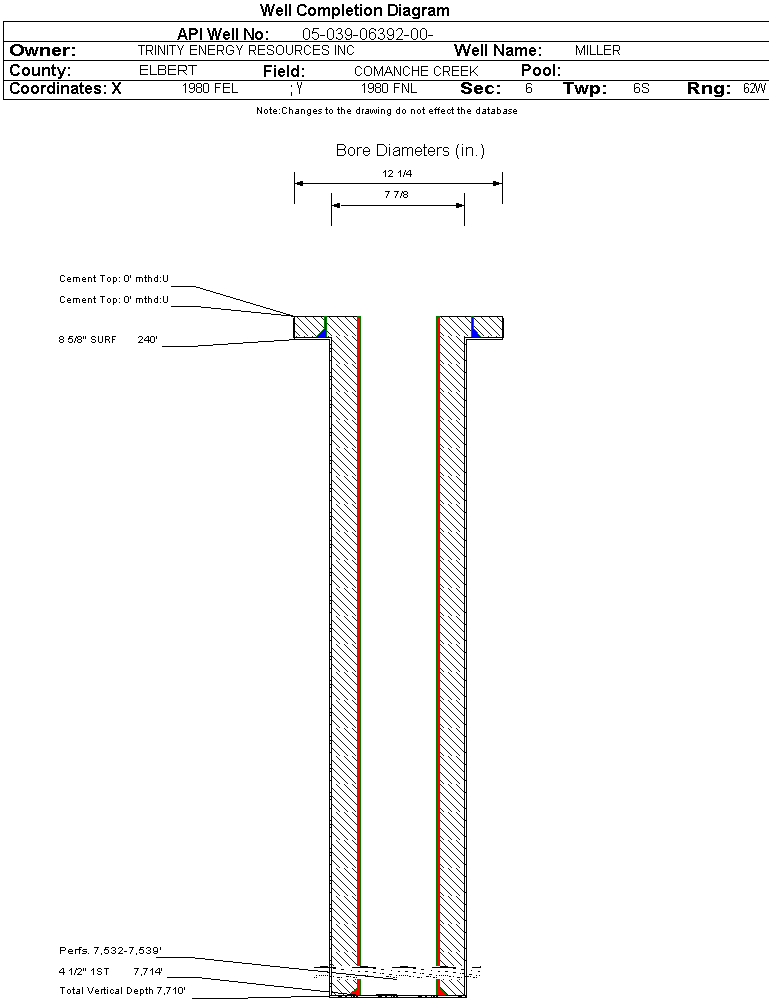

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 240 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7714 ft., Weight: 11.6/10.5, Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1300 ft.
SUSSEX4620 ft.
NIOBRARA6781 ft.
TIMPAS7127 ft.
BENTONITE7434 ft.
D SAND7530 ft.
J SAND7588 ft.

Formation DSND                     Formation Classification:  OW                     Status:  PR - 6/1/2025                  Interval Top: 7532 ft.    Interval Bottom: 7539 ft.

 Completed Information for Formation D SAND
1st Production Date:12/5/1981Choke Size:0.313 in.
Formation Name:D SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/5/1981
Treatment Summary:SEE SCANNED DOCUMENT #00444857
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/1981Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 74
CALC_BBLS_OIL 74
CALC_GOR 1189
CALC_MCF_GAS 88
CASING_PRESS 580
GRAVITY_OIL 41.3
MCF_GAS 88
TUBING_PRESS 115
Perforation Data:
Interval Top:7532 ft.# Of Holes:28
Interval Bottom:7539 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)127
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day0.348
Average MCFE per Day2.017

 Federal Financial Assurance  i

 Tribal Well  i No
