COGIS - WELL SCOUT CARD

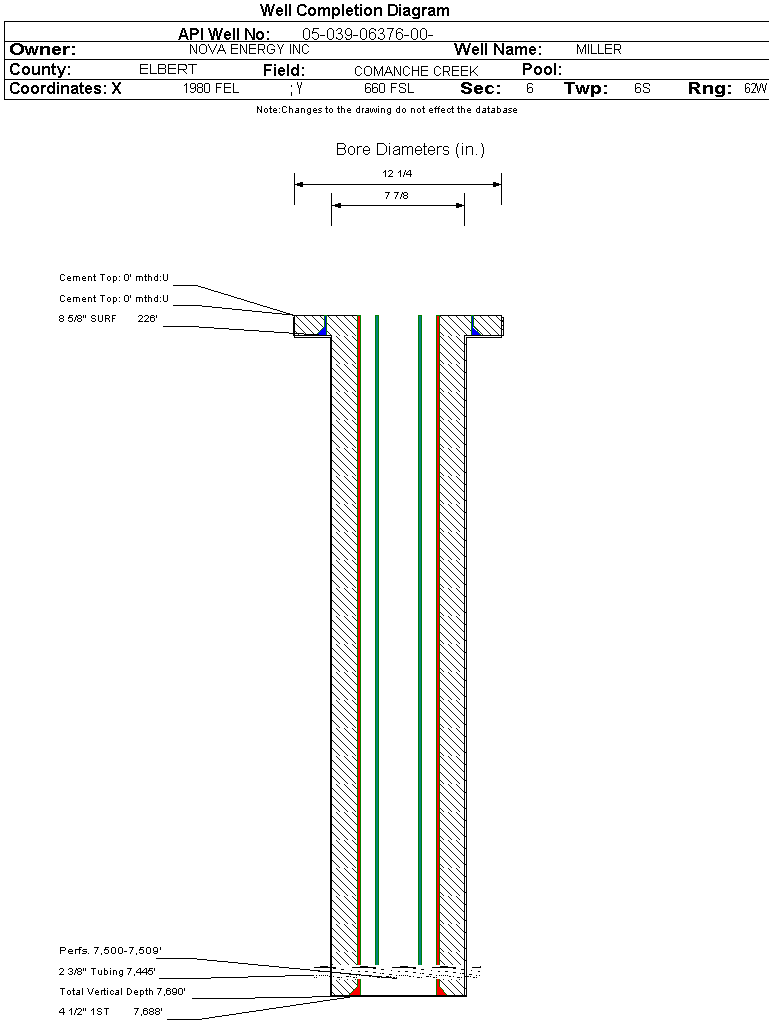

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-039-06376		Well Classification: GW Status: PR - 2/3/2004
Well Name/No:MILLER #6-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RENEGADE OIL & GAS COMPANY LLC - 74165
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/3/2004
FacilityID:209471LocationID:322170
County:ELBERT #039Location:SWSE 6 6S62W 6
Field:COMANCHE CREEK - #11627Elevation:5761 ft.
Planned Location:660FSL  1980 FELLat/Long: 39.551247 / -104.373192Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.551210 / -104.372980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/3/2004             Measured TD: 7690 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/3/2004
Wellbore Permit
Permit #:19810782 Expiration Date:9/11/1981
Proposed Depth/Form:7739 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 80, Drill Unit: E2SE
Wellbore Completed
Completion Date:9/30/1981
Spud Date:8/8/1981Spud Date Is:ACTUAL
Measured TD:7690 ft.Measured PB depth:7666 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: CNL-FDC, DIL-SFL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 226 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7688 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1310 ft.
SUSSEX4612 ft.
NIOBRARA6849 ft.
FORT HAYS7101 ft.
CARLILE7131 ft.
GREENHORN7180 ft.
BENTONITE7404 ft.
D SAND7493 ft.
HUNTSMAN7512 ft.
J SAND7526 ft.
SKULL CREEK7610 ft.

Formation DSND                     Formation Classification:  GW                     Status:  PR - 2/3/2004                  Interval Top: 7500 ft.    Interval Bottom: 7509 ft.

 Completed Information for Formation D SAND
1st Production Date:9/25/1981Choke Size:0.375 in.
Formation Name:D SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1981
Treatment Summary:SEE SCANNED DOCUMENT #00444817
Tubing Size:2.375 in.Tubing Setting Depth:7445 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/1981Test Method:FLOWING
Hours Tested:18Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 98
CALC_BBLS_OIL 131
CALC_GOR 1122
CALC_MCF_GAS 147
CASING_PRESS 720
MCF_GAS 110
TUBING_PRESS 40
Perforation Data:
Interval Top:7500 ft.# Of Holes:36
Interval Bottom:7509 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2024 - 01/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)112
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day0.307
Average MCFE per Day1.783

 Federal Financial Assurance  i

 Tribal Well  i No
