COGIS - WELL SCOUT CARD

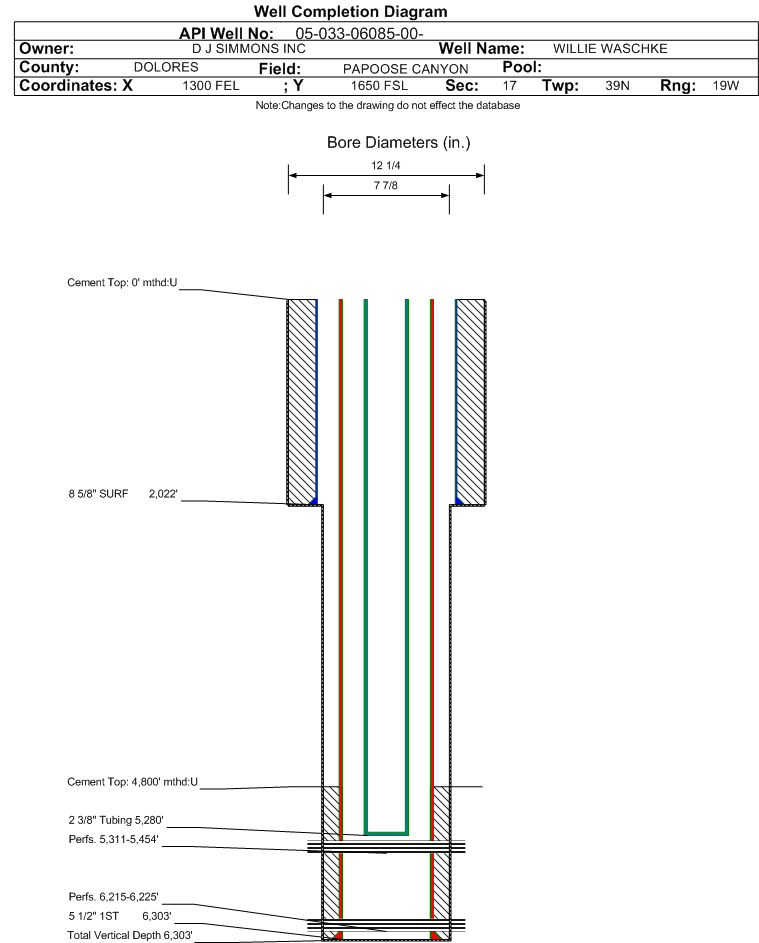

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-033-06085		Well Classification: GW Status: SI - 10/1/2017
Well Name/No:WILLIE WASCHKE #4-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-30926
Facility Status:SIStatus Date10/1/2017
FacilityID:208980LocationID:322107
County:DOLORES #033Location:NESE 17 39N19W N
Field:PAPOOSE CANYON - #67300Elevation:6659 ft.
Basin:PARADOX BASIN
Planned Location:1650FSL  1300 FELLat/Long: 37.636393 / -108.962685Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.636360 / -108.962460Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2017             Measured TD: 6303 ft.    Vertical TD: 6303 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2017
Wellbore Permit
Permit #:20064080 Expiration Date:9/26/2007
Proposed Depth/Form:6303 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DSCR , Formation: DESERT CREEK , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: HNKRT , Formation: HONAKER TRAIL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 2022 ft., Weight: 32 , Citings Type: PLANNED
Cement:Sacks: 1090, Top: 0 ft., Bottom: 2022 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6303 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 340, Top: 4800 ft., Bottom: 6303 ft.
Wellbore Completed
Completion Date:5/21/1984
Spud Date:4/13/1984Spud Date Is:ACTUAL
Measured TD:6303 ft.Measured PB depth:0 ft.
True Vertical TD:6303 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 2022 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 1090, Top: 0 ft., Bottom: 2022 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6303 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 4800 ft., Bottom: 6303 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
ISMAY5910 ft.
DESERT CREEK6160 ft.

Formation DSCR                     Formation Classification:  GW                     Status:  SI - 2/4/2015                  Interval Top: 6215 ft.    Interval Bottom: 6225 ft.

 Completed Information for Formation DESERT CREEK
1st Production Date:5/20/1984Choke Size:
Formation Name:DESERT CREEKCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSCR.
Perforation Data:
Interval Top:6215 ft.# Of Holes:
Interval Bottom:6225 ft.Hole Size:

Formation HNKRT                   Formation Classification:  GW                   Status:  SI - 8/1/2016                  Interval Top: 5311 ft.    Interval Bottom: 5454 ft.

 Completed Information for Formation HONAKER TRAIL
1st Production Date:10/28/2006Choke Size:
Formation Name:HONAKER TRAILCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/2/2006
Treatment Summary:500 GAL 15% HCC BREAKDOWN AND FRAC. W/15,000 GAL 2% KCL/N2 FOAM AND 35000# 20/40 SAND (5444-5454 WITH 40 PERFS). 750 GALS 15% SPEARHEAD ACID AND FRAC W/17,000 GAL 2% KCL/N2 FOAM AND 52500# 20/40 SAND (5311-5342 WITH 60 PERFS)
Tubing Size:2.375 in.Tubing Setting Depth:5280 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/28/2006Test Method:FLOW
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 23
BBLS_OIL 0
BTU_GAS 898
CALC_BBLS_H2O 23
CALC_MCF_GAS 68
CASING_PRESS 250
MCF_GAS 68
TUBING_PRESS 30
Perforation Data:
Interval Top:5311 ft.# Of Holes:100
Interval Bottom:5454 ft.Hole Size:0.34 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2016
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
