COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-031-06399		Well Classification: ERIW Status: PA - 10/24/2019
Well Name/No:CHAMPLIN 117 AMOCO A #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CITY & COUNTY OF DENVER - 17320
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/24/2019
FacilityID:208816LocationID:322020
Municipality/County:DENVER / DENVER #031Location:NESW 7 2S65W 6
Field:THIRD CREEK - #81800Elevation:5294 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1780 FWLLat/Long: 39.890731 / -104.708475Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.890820 / -104.708470Lat/Long Source: Field Measured

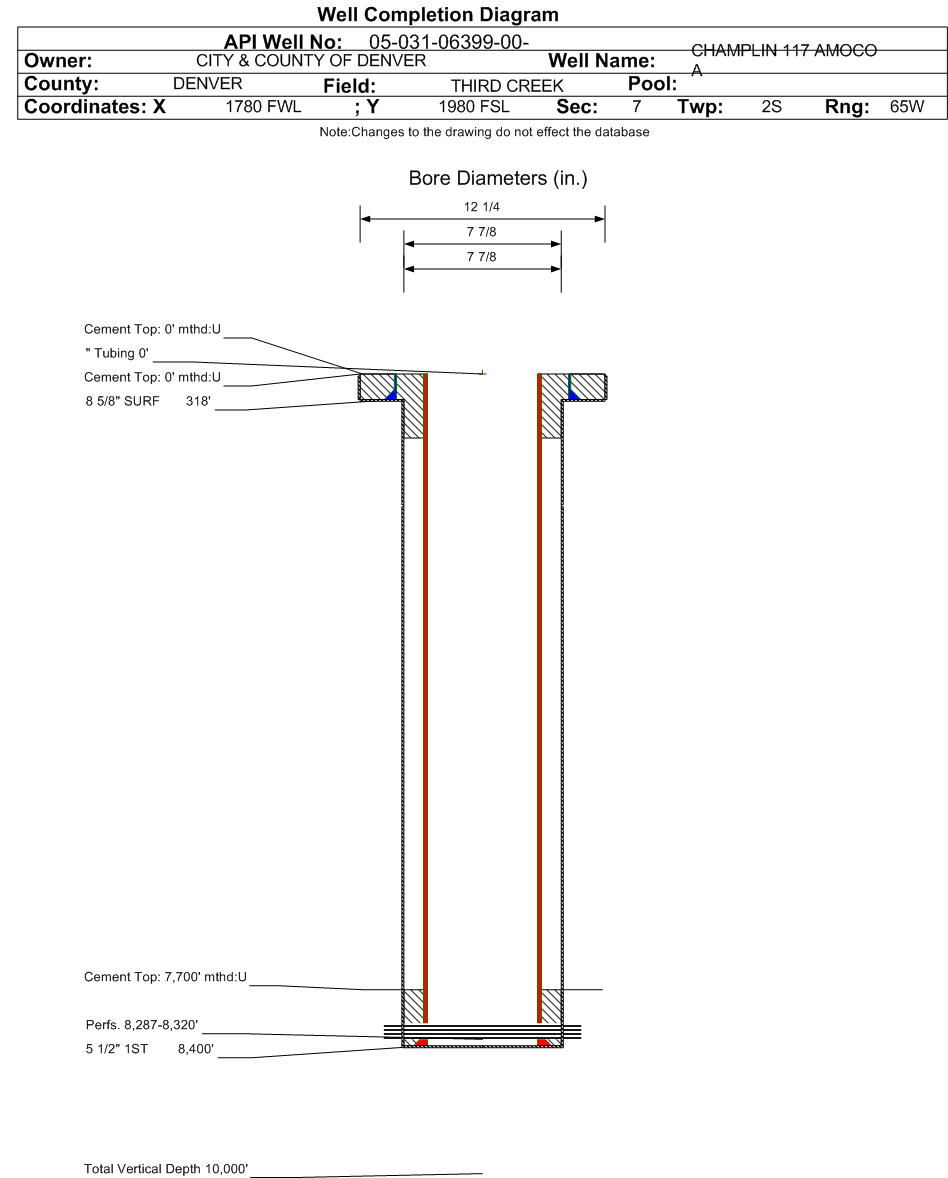

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 10/24/2019             Measured TD: 8400 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 10/24/2019
Wellbore Permit
Permit #:19710979 Expiration Date:12/7/1972
Proposed Depth/Form:8370 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDYD , Formation: MUDDY D , Order: , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:1/7/1972
Spud Date:12/14/1971Spud Date Is:ACTUAL
Measured TD:8400 ft.Measured PB depth:8348 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES,DENSITY,SP
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 318 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 318 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8400 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 7700 ft., Bottom: 8400 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 800 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 266, Top: 0 ft., Bottom: 800 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1635 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 892 ft., Bottom: 1635 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
D SAND8230 ft.
J SAND8280 ft.

Formation JSND                     Formation Classification:  ERIW                     Status:  AB - 10/24/2019                Interval Top: 8287 ft.    Interval Bottom: 8320 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 410
CALC_BBLS_H2O 4
CALC_BBLS_OIL 410
CALC_GOR 2120
CALC_MCF_GAS 870
CASING_PRESS 725
MCF_GAS 870
TUBING_PRESS 350
Perforation Data:
Interval Top:8287 ft.# Of Holes:29
Interval Bottom:8320 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/24/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
