COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-07547		Well Classification: LO Status: DG - 1/15/2021
Well Name/No:ADOBE #14-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HELENA RESOURCES INC - 10547
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:DGStatus Date1/15/2021
FacilityID:208612LocationID:381229
County:CHEYENNE #017Location:SESW 14 13S51W 6
Field:WILDCAT - #99999Elevation:4757 ft.
Basin:DENVER (DJ) BASIN
Planned Location:740FSL  2519 FWLLat/Long: 38.910510 / -103.080880Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 38.910510 / -103.080880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: LO             Status: DG - 1/15/2021             Measured TD: 6433 ft.

 Wellbore Data for Original WellboreWellbore Classification: LO        DG - 1/15/2021
Wellbore Permit
Permit #: Expiration Date:7/7/2022
Proposed Depth/Form:6430 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: 40, Drill Unit: Voluntary Pooling
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 40, Drill Unit: Voluntary Pooling
Formation And Spacing:Code: MM-MW , Formation: MARMATON-MORROW , Order: , Unit Acreage: 40, Drill Unit: Voluntary Pooling
Formation And Spacing:Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/22/1997
Spud Date:2/7/1997Spud Date Is:ACTUAL
Measured TD:6433 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SONIC/ DENSITY NEUTRON/ HRLD

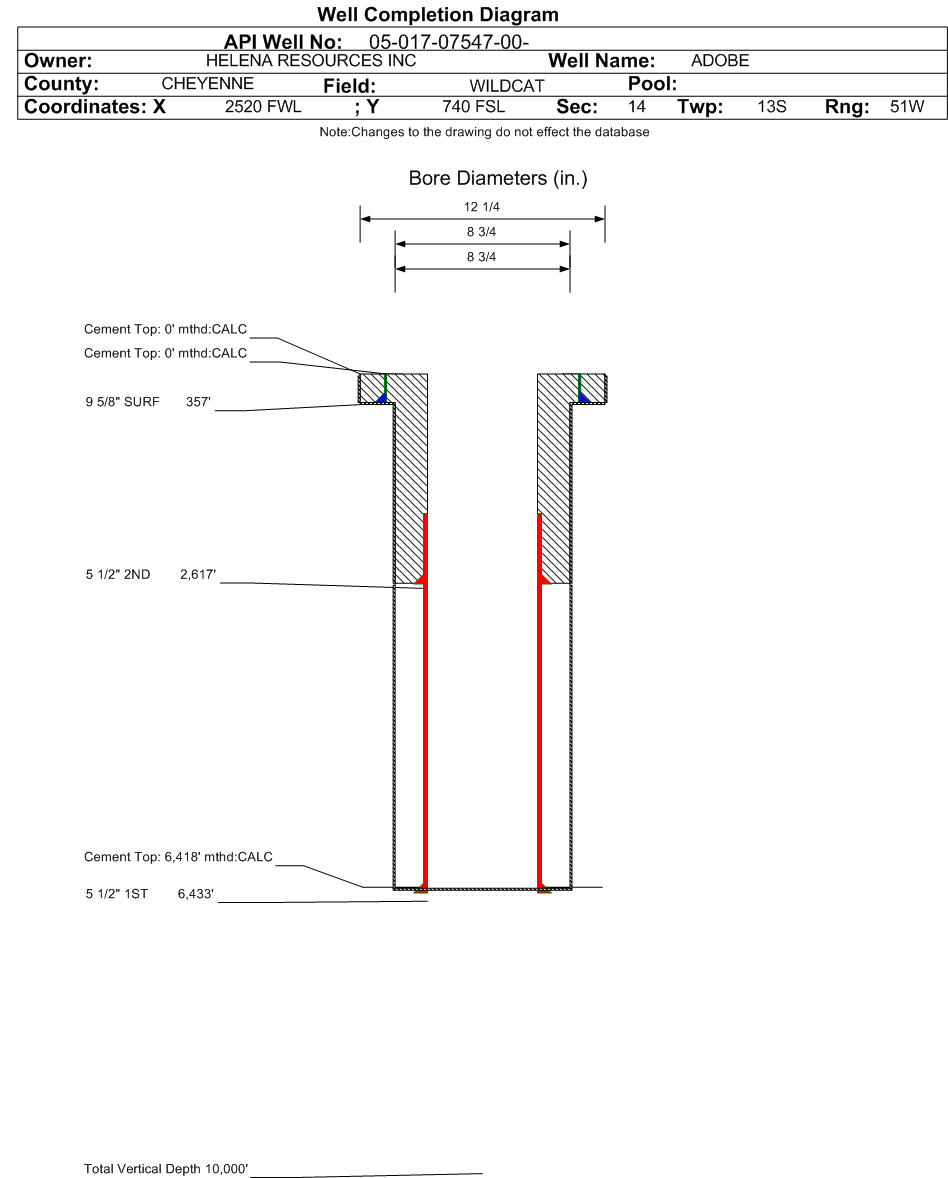

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 357 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 0 ft., Bottom: 370 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 6433 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 565, Top: 4770 ft., Bottom: 6433 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 2630 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 165, Top: 1770 ft., Bottom: 2630 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
DAKOTA2344 ft.
CHEYENNE2486 ft.
MORRISON2574 ft.
PERMIAN3186 ft.
BLAINE3450 ft.
CEDAR HILLS3670 ft.
STONE CORRAL3754 ft.
NEVA4378 ft.
FORAKER4452 ft.
SHAWNEE4748 ft.
TOPEKA4928 ft.
MARMATON5374 ft.Y
PAWNEE5408 ft.YY
FORT SCOTT5488 ft.
CHEROKEE K5534 ft.
ATOKA5760 ft.
MORROW6006 ft.
MORROW V-76130 ft.YY
ST LOUIS6288 ft.
SPERGEN6320 ft.
  No formation data to display.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY06/07/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
