COGIS - WELL SCOUT CARD

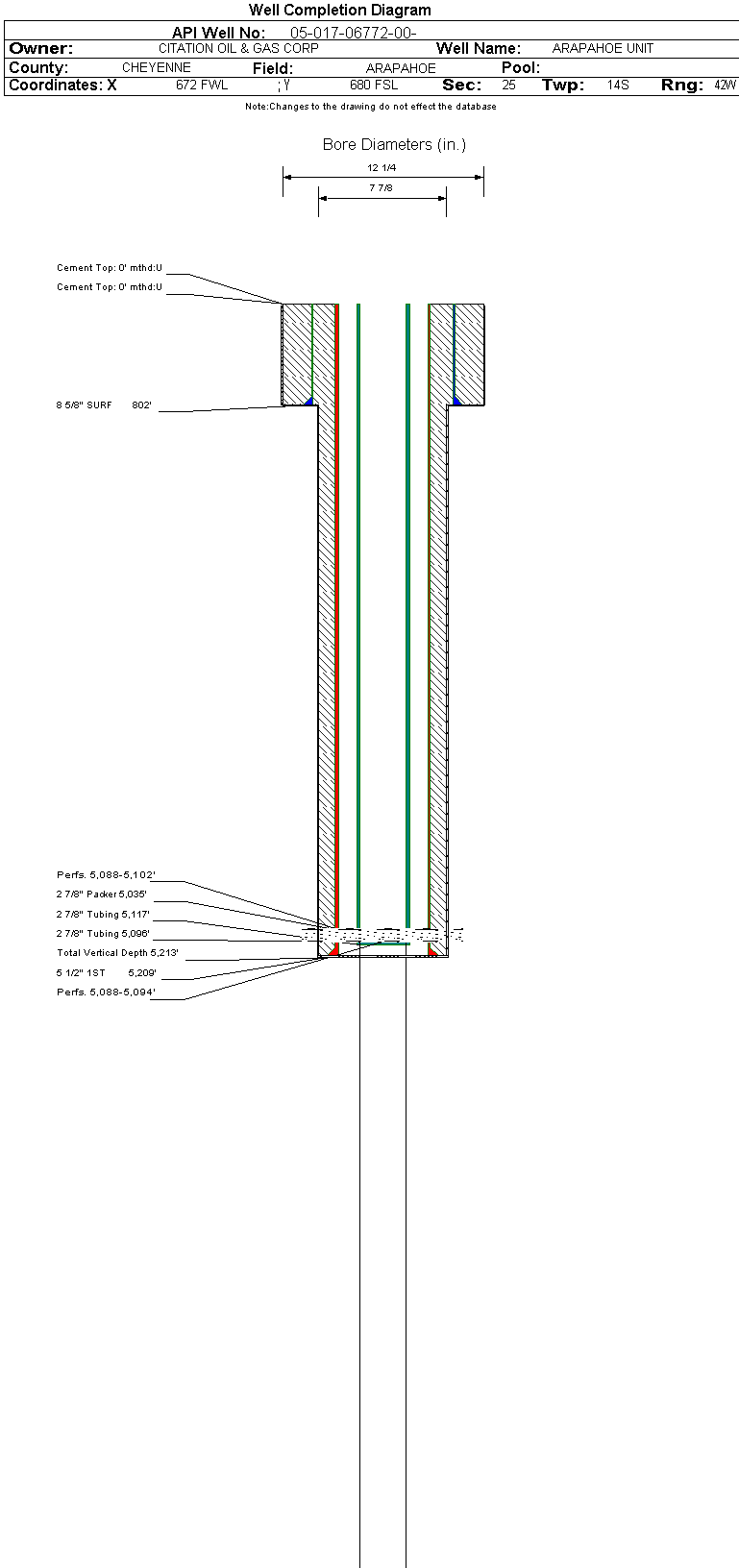

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06772		Well Classification: GW Status: PR - 4/1/2025
Well Name/No:ARAPAHOE UNIT #130(14-25)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CITATION OIL & GAS CORP - 17180
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2025
FacilityID:207837LocationID:321715
County:CHEYENNE #017Location:SWSW 25 14S42W 6
Field:ARAPAHOE - #2875Elevation:3897 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:680FSL  672 FWLLat/Long: 38.800228 / -102.069565Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.800338 / -102.069481Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2025             Measured TD: 5213 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2025
Wellbore Permit
Permit #:19880051 Expiration Date:5/19/1988
Proposed Depth/Form:5180 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MRRWB , Formation: MORROW B , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:5/11/1988
Spud Date:2/17/1988Spud Date Is:ACTUAL
Measured TD:5213 ft.Measured PB depth:5162 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIG-GR; SPECTRAL-DEN.-DSN
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 802 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5209 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT HAYS1255 ft.NN
CODELL1329 ft.NN
CARLILE1344 ft.NN
GREENHORN1487 ft.NN
GRANEROS1557 ft.NN
BENTONITE1631 ft.NN
DAKOTA1704 ft.NN
SKULL CREEK1870 ft.NN
CHEYENNE1994 ft.NN
MORRISON2194 ft.NN
BLAINE2525 ft.NN
CEDAR HILLS2631 ft.NN
STONE CORRAL2810 ft.NN
WOLFCAMP3104 ft.NN
NEVA3491 ft.NN
FORAKER3560 ft.NN
WABAUNSEE3786 ft.NN
SHAWNEE3898 ft.NN
LANSING-KANSAS CITY4175 ft.NN
MARMATON4558 ft.NN
CHEROKEE K4714 ft.NN
ATOKA4856 ft.NN
MORROW4983 ft.NN
KEYES5109 ft.NN

Formation MRRW                     Formation Classification:  GW                     Status:  PR - 4/1/2025                  Interval Top: 5088 ft.    Interval Bottom: 5102 ft.

 Completed Information for Formation MORROW
1st Production Date:N/AChoke Size:
Formation Name:MORROWCommingled:No
Production Method:2.5 X 1.5 RWBC PUMP WITH RODS
Open Hole Completion:No
Formation Treatment
Treatment Date:5/23/2005
Treatment Summary:ACIDIZED WITH 800 GALS 15% HCL, 30 GALS S-3000 AND 1 GAL PHENO IRON CONTROL WITH 2% KCL TO FLUSH. PUMPED 50 BBLS HOT-OIL DEISEL BREAK-DOWN TREATMENT FOLLOWED BY 30 BBLS FLUSH.
Tubing Size:2.875 in.Tubing Setting Depth:5117 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/2005Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 15
CALC_BBLS_H2O 0
CALC_BBLS_OIL 15
CALC_MCF_GAS 0
CASING_PRESS 30
GRAVITY_OIL 39
MCF_GAS 0
TUBING_PRESS 30
Perforation Data:
Interval Top:5088 ft.# Of Holes:56
Interval Bottom:5102 ft.Hole Size:0.36 in.

Formation MRRWB                   Formation Classification:  GW                   Status:  AB - 6/7/2005                  Interval Top: 5088 ft.    Interval Bottom: 5094 ft.

 Completed Information for Formation MORROW B
1st Production Date:12/1/1989Choke Size:0.281 in.
Formation Name:MORROW BCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1988
Treatment Summary:NONE
Tubing Size:2.875 in.Tubing Setting Depth:5096 ft.
Tubing Packer Depth:5055 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/1/1988Test Method:4-POINT TEST
Hours Tested:6Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
CALC_MCF_GAS 879
MCF_GAS 119
TUBING_PRESS 435
Perforation Data:
Interval Top:5088 ft.# Of Holes:24
Interval Bottom:5094 ft.Hole Size:0.51 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)452
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day1.231
Average MCFE per Day7.144

 Federal Financial Assurance  i Y

 Tribal Well  i No
