COGIS - WELL SCOUT CARD

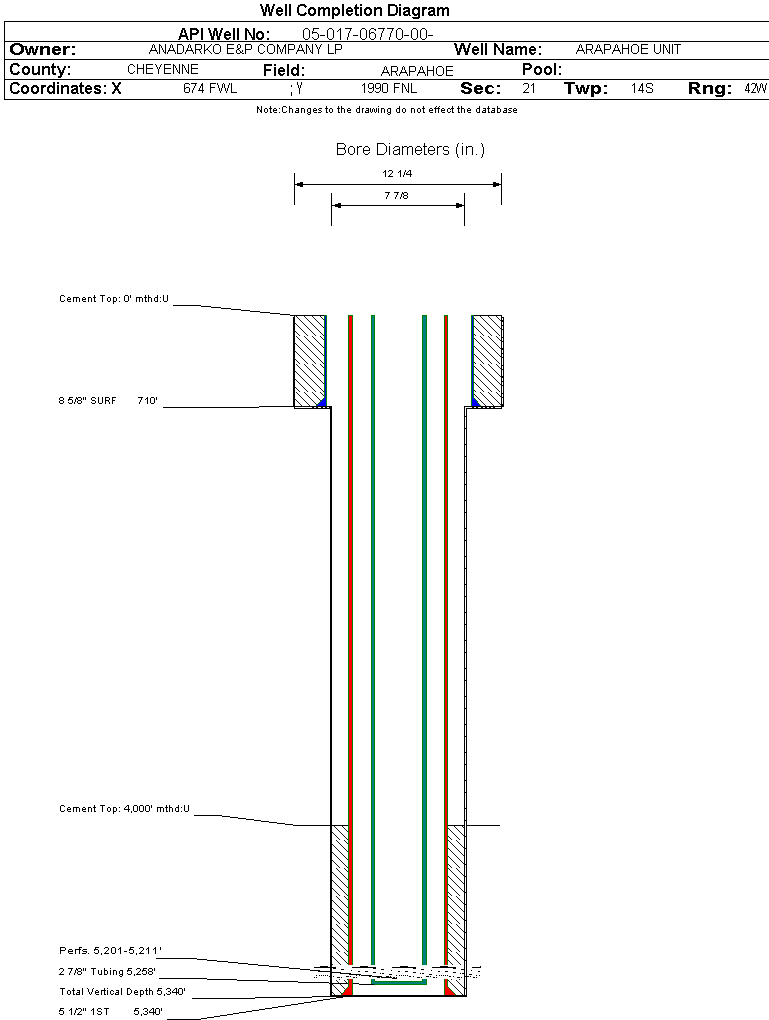

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06770		Well Classification: OW Status: SI - 9/1/2025
Well Name/No:ARAPAHOE UNIT #158 (12-21)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CITATION OIL & GAS CORP - 17180
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date9/1/2025
FacilityID:207835LocationID:321713
County:CHEYENNE #017Location:SWNW 21 14S42W 6
Field:ARAPAHOE - #2875Elevation:3955 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1990FNL  674 FWLLat/Long: 38.822297 / -102.125427Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.822413 / -102.125644Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 9/1/2025             Measured TD: 5340 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 9/1/2025
Wellbore Permit
Permit #:19880049 Expiration Date:5/19/1988
Proposed Depth/Form:5245 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MRRW , Formation: MORROW , Order: 317 H,I , Unit Acreage: 80, Drill Unit: SWNW
Wellbore Completed
Completion Date:3/27/1988
Spud Date:2/3/1988Spud Date Is:ACTUAL
Measured TD:5340 ft.Measured PB depth:5291 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL-GR; LDT-CNL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 710 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5340 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4000 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT HAYS1188 ft.NN
CODELL1263 ft.NN
CARLILE1278 ft.NN
GREENHORN1426 ft.NN
GRANEROS1491 ft.NN
BENTONITE1569 ft.NN
DAKOTA1640 ft.NN
SKULL CREEK1805 ft.NN
CHEYENNE1935 ft.NN
MORRISON2145 ft.NN
BLAINE2471 ft.NN
CEDAR HILLS2746 ft.NN
STONE CORRAL2901 ft.NN
WOLFCAMP3220 ft.NN
NEVA3569 ft.NN
FORAKER3646 ft.NN
WABAUNSEE3855 ft.NN
SHAWNEE3981 ft.NN
LANSING-KANSAS CITY4245 ft.NN
MARMATON4635 ft.NN
CHEROKEE K4793 ft.NN
ATOKA4963 ft.NN
MORROW5076 ft.NN
KEYES5246 ft.NN

Formation MRRWB                   Formation Classification:  OW                   Status:  SI - 9/1/2025                  Interval Top: 5201 ft.    Interval Bottom: 5211 ft.

 Completed Information for Formation MORROW B
1st Production Date:2/20/1988Choke Size:0.406 in.
Formation Name:MORROW BCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:3/27/1988
Treatment Summary:NONE
Tubing Size:2.875 in.Tubing Setting Depth:5258 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/27/1988Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 281
CALC_BBLS_OIL 281
CALC_GOR 103
CALC_MCF_GAS 29
CASING_PRESS 50
GRAVITY_OIL 40
MCF_GAS 29
Perforation Data:
Interval Top:5201 ft.# Of Holes:40
Interval Bottom:5211 ft.Hole Size:0.51 in.
