COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06103		Well Classification: DA Status: PA - 1/16/1971
Well Name/No:FROETSCHNER #33-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RESOURCES COMPANY - 91100
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/16/1971
FacilityID:207168LocationID:381233
County:CHEYENNE #017Location:NWSE 13 15S45W 6
Field:LADDER CREEK - #47600Elevation:4334 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FELLat/Long: 38.745367 / -102.394865Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 1/16/1971             Measured TD: 5633 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 1/16/1971
Wellbore Permit
Permit #:19700738 Expiration Date:4/17/1971
Proposed Depth/Form:5550 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:1/16/1971
Spud Date:12/28/1970Spud Date Is:ACTUAL
Measured TD:5633 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SIDEWALL NEUTRON W/GAMMA RAY, GAMMA RAY-SONIC LOG

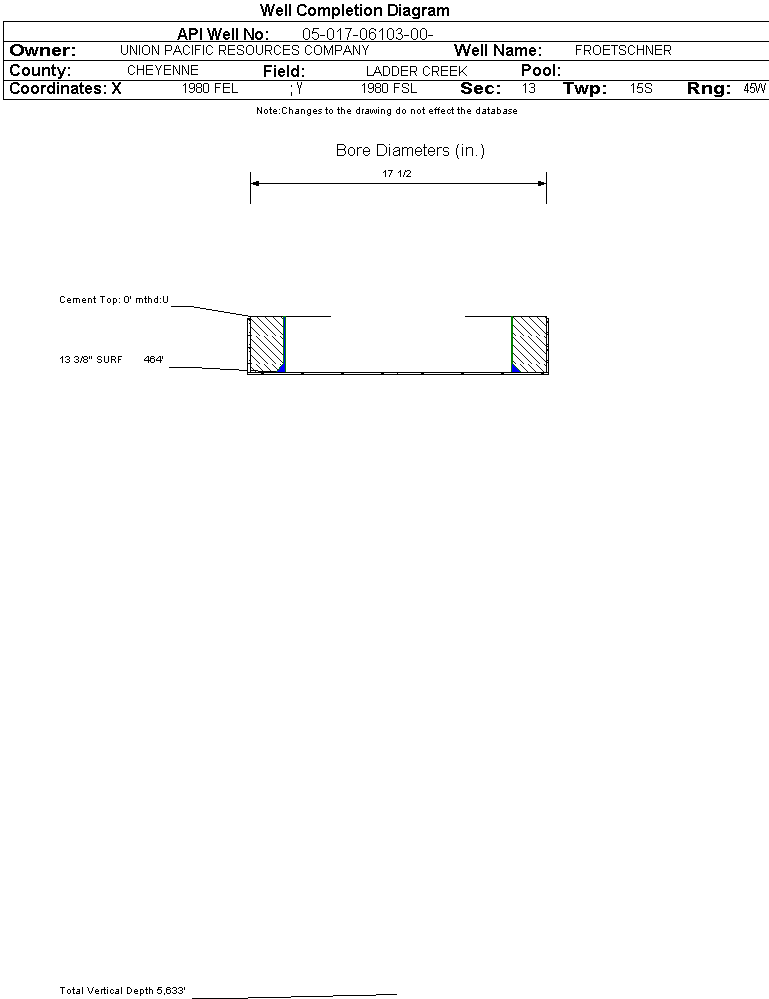

Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 464 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
LYONS2891 ft. Y
NEVA3672 ft.
MISSOURI4305 ft.
ATOKA4946 ft.
MORROW5058 ft.
ST LOUIS5243 ft.
SPERGEN5342 ft.YY
ARBUCKLE5603 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/16/1971
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
