COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06097		Well Classification: DA Status: PA - 9/24/1983
Well Name/No:S-S-M BLEDSOE #1-2 WD
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/24/1983
FacilityID:207162LocationID:380190
County:CHEYENNE #017Location:NENE 2 13S51W 6
Field:GOPHER - #30790Elevation:4832 ft.
Basin:DENVER (DJ) BASIN
Planned Location:658FNL  663 FELLat/Long: 38.950371 / -103.072567Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/24/1983             Measured TD: 6430 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/24/1983
Wellbore Permit
Permit #:19700358 Expiration Date:1/10/1984
Proposed Depth/Form:6300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MSSP , Formation: MISSISSIPPIAN , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/24/1983
Spud Date:9/30/1970Spud Date Is:ACTUAL
Measured TD:6430 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION, COMP. DEN. / COMP. NEUTRON

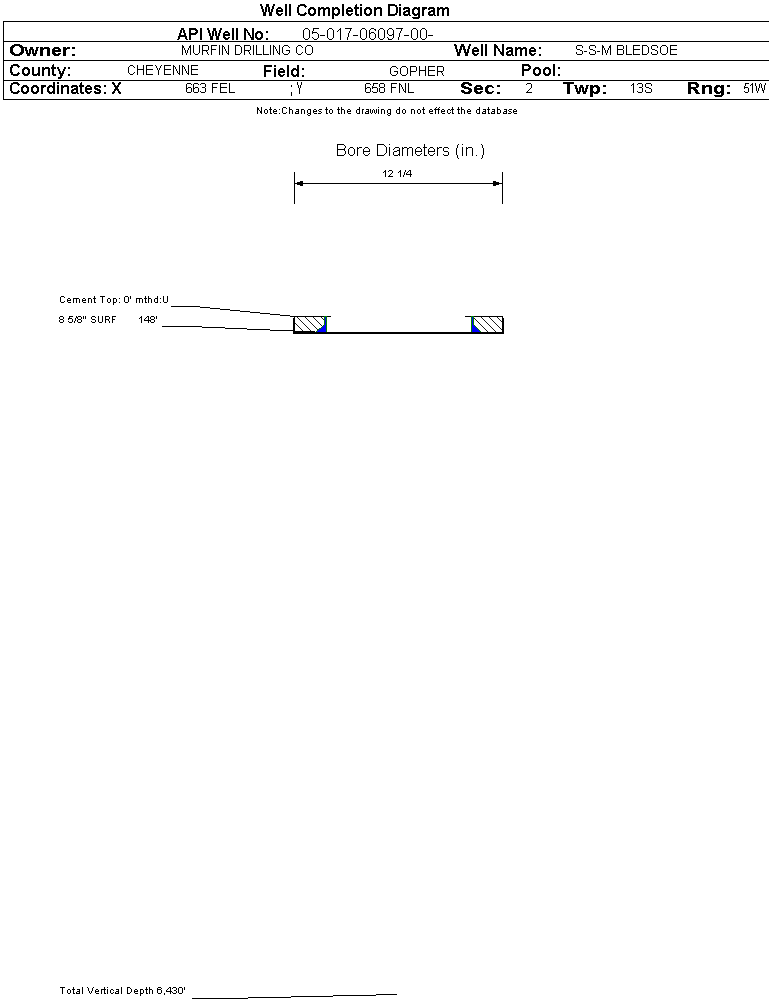

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 148 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT HAYS2046 ft.N
CODELL2113 ft.N
MARMATON5486 ft.N
CHEROKEE K5634 ft.N
MORROW6090 ft.NY
ST LOUIS6298 ft.NY
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/24/1983
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
