COGIS - WELL SCOUT CARD

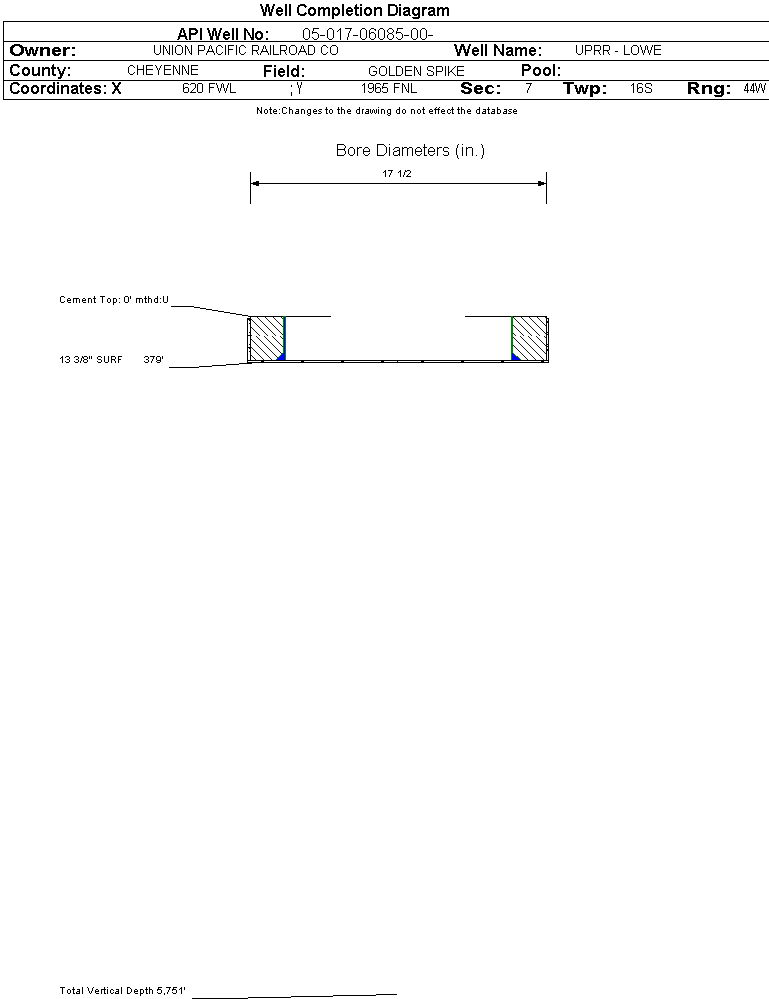

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06085		Well Classification: DA Status: PA - 4/4/1970
Well Name/No:UPRR - LOWE #12-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RAILROAD CO - 91108
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/4/1970
FacilityID:207150LocationID:380178
County:CHEYENNE #017Location:SWNW 7 16S44W 6
Field:GOLDEN SPIKE - #30650Elevation:4305 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1965FNL  620 FWLLat/Long: 38.681958 / -102.399845Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 4/4/1970             Measured TD: 5751 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 4/4/1970
Wellbore Permit
Permit #:19700090 Expiration Date:3/6/1971
Proposed Depth/Form:5950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: ABCK , Formation: ARBUCKLE , Order: 0 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:4/4/1970
Spud Date:3/14/1970Spud Date Is:ACTUAL
Measured TD:5751 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: SIDEWALL NEUTRON POROSITY LOG
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: , Depth: 379 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 405, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NEVA3637 ft.
VIRGIL3864 ft.
SHAWNEE4061 ft.
MISSOURI4287 ft.
DES MOINES4696 ft.
ATOKA5011 ft.
MORROW5148 ft.
ST LOUIS5332 ft.
SPERGEN5479 ft.
OSAGE5604 ft.
ARBUCKLE5730 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/04/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
