COGIS - WELL SCOUT CARD

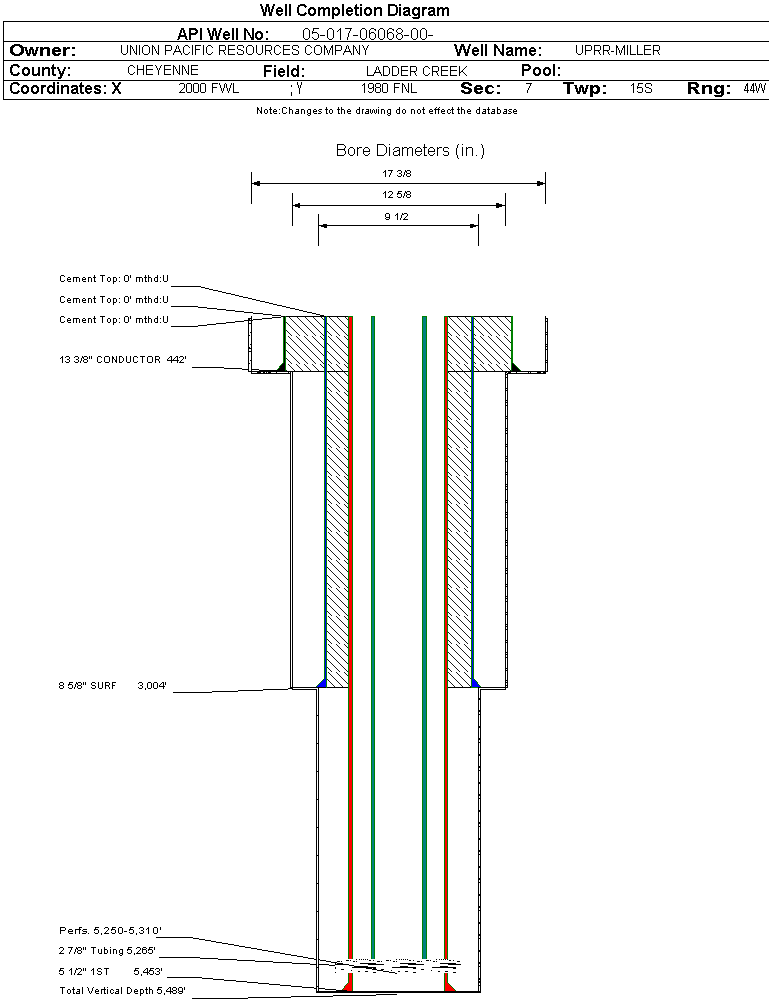

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06068		Well Classification: OW Status: PA - 9/23/1988
Well Name/No:UPRR-MILLER #22-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RESOURCES COMPANY - 91100
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/23/1988
FacilityID:207133LocationID:380162
County:CHEYENNE #017Location:SENW 7 15S44W 6
Field:LADDER CREEK - #47600Elevation:4255 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  2000 FWLLat/Long: 38.763617 / -102.381195Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 9/23/1988             Measured TD: 5489 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 9/23/1988
Wellbore Permit
Permit #:19690584 Expiration Date:1/18/1970
Proposed Depth/Form:5500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: ABCK , Formation: ARBUCKLE , Order: 0 , Unit Acreage: 80, Drill Unit: E2NW
Wellbore Completed
Completion Date:3/9/1970
Spud Date:1/29/1970Spud Date Is:ACTUAL
Measured TD:5489 ft.Measured PB depth:5472 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION LATEROLOG, SIDEWALL NEUTRON POROSITY, PROXIMITY LOG - MICROLOG
Casing:String Type: CONDUCTOR, Hole Size: , Size: 13.375 in., Top: , Depth: 442 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: , Depth: 3004 ft., Weight: 28,24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 5.5 in., Top: , Depth: 5453 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NEVA3614 ft.
VIRGIL3832 ft.
SHAWNEE4017 ft. Y
MISSOURI4228 ft.
ATOKA4856 ft. Y
MORROW4968 ft.
ST LOUIS5140 ft. Y
SPERGEN5241 ft.YY
OSAGE5376 ft.YY
ARBUCKLE5485 ft.

Formation SPGN                     Formation Classification:  GW                     Status:  AB - 9/23/1988                 Interval Top: 5250 ft.    Interval Bottom: 5310 ft.

 Completed Information for Formation SPERGEN
1st Production Date:3/23/1970Choke Size:
Formation Name:SPERGENCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.875 in.Tubing Setting Depth:5265 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/22/1970Test Method:PUMPING
Hours Tested:23Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 60
CALC_BBLS_H2O 6
CALC_BBLS_OIL 63
GRAVITY_OIL 37.4
Perforation Data:
Interval Top:5250 ft.# Of Holes:55
Interval Bottom:5310 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/23/1988
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
