COGIS - WELL SCOUT CARD

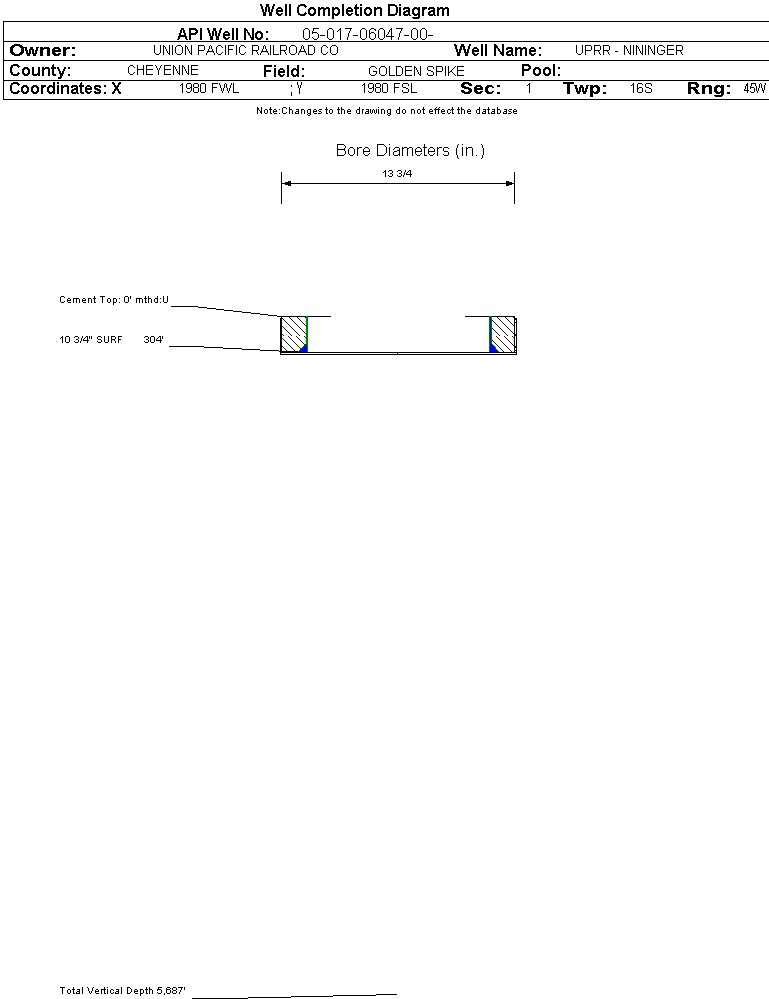

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-017-06047		Well Classification: DA Status: PA - 8/5/1969
Well Name/No:UPRR - NININGER #23-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RAILROAD CO - 91108
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/5/1969
FacilityID:207112LocationID:380143
County:CHEYENNE #017Location:NESW 1 16S45W 6
Field:GOLDEN SPIKE - #30650Elevation:4336 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FWLLat/Long: 38.692588 / -102.413695Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 8/5/1969             Measured TD: 5687 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 8/5/1969
Wellbore Permit
Permit #:19690354 Expiration Date:6/27/1970
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: ABCK , Formation: ARBUCKLE , Order: 0 , Unit Acreage: 97, Drill Unit:
Wellbore Completed
Completion Date:8/5/1969
Spud Date:7/6/1969Spud Date Is:ACTUAL
Measured TD:5687 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: INDUCTION LATEROLOG, FORMATION DENSITY LOG, SIDEWALL NEUTRON POROSITY LOG, PROXIMITY LOG, NEUTRON F LOG
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: , Depth: 304 ft., Weight: 31 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NEVA3653 ft.
VIRGIL3878 ft.
MISSOURI4242 ft.
DES MOINES4675 ft.
ATOKA4976 ft.
MORROW5044 ft.
ST LOUIS5281 ft.
SPERGEN5393 ft.
OSAGE5511 ft.
ST JOE5552 ft.
ARBUCKLE5633 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/05/1969
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
