Wellbore #00 Wellbore Classification: OW Status: PR - 10/13/2019 Measured TD: 18618 ft. Vertical TD: 8046 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/13/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/14/2021 | | Proposed Top PZ Location: | Sec:3 Twp: 1S 68W | Footage: 150 FSL 2517 FWL | | Bottom Hole Location: | Sec:34 Twp: 1N 68W | Footage: 460 FNL 2317 FEL | | Proposed Depth/Form: | 18662 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 720, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18662 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2501, Top: , Bottom: 18662 ft. |
| | |

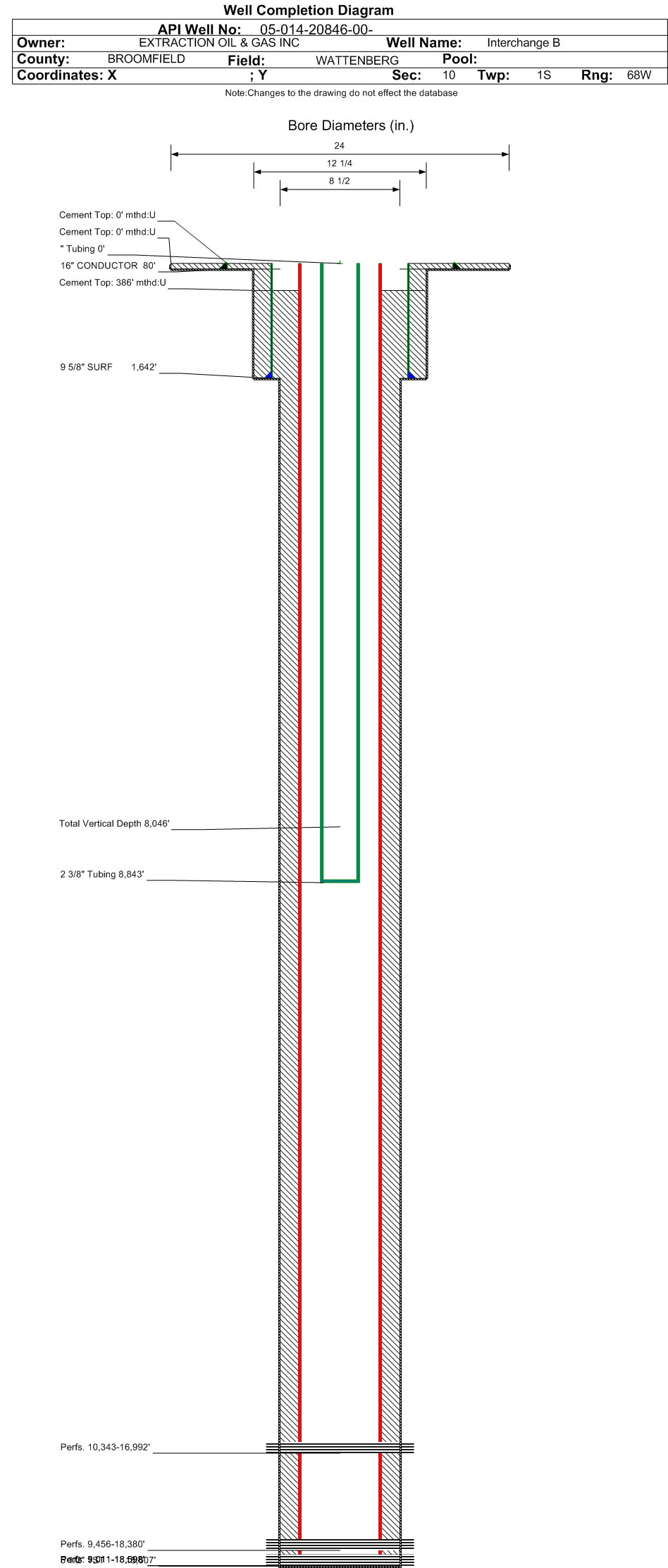

| Wellbore Completed | | Completion Date: | 5/2/2019 | | Spud Date: | 4/3/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 18618 ft. | Measured PB depth: | 18602 ft. | | True Vertical TD: | 8046 ft. | True Vertical PB depth: | 8046 ft. | | Top PZ Location: | Sec:3 Twp: 1S 68W | Footage: 192 FSL 2515 FWL | | Bottom Hole Location: | Sec:34 Twp: 1N 68W | Footage: 506 FNL 2339 FEL | | Log Types: | CBL, Mud Log, MWD/LWD, RES | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1642 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 1642 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18607 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2910, Top: 386 ft., Bottom: 18618 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4850 ft. | | N | N | | SUSSEX | 5241 ft. | | N | N | | SHANNON | 5804 ft. | | N | N | | SHARON SPRINGS | 8161 ft. | | N | N | | NIOBRARA | 8214 ft. | | N | N | | FORT HAYS | 8761 ft. | | N | N | | CODELL | 8821 ft. | | N | N | | CARLILE | 8883 ft. | | | |
Formation FTHYS Formation Classification: OW Status: CM - 11/6/2019 Interval Top: 10343 ft. Interval Bottom: 16992 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 10/2/2019 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/24/2019 | | Treatment Summary: | Perforated Intervals: 10343'-10344'; 13942'-14074'; 16916'-16992'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 10343 ft. | # Of Holes: | 33 | | Interval Bottom: | 16992 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: OW Status: CM - 11/6/2019 Interval Top: 9456 ft. Interval Bottom: 18380 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 10/2/2019 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/24/2019 | | Treatment Summary: | Perforated Intervals: 9456'-10320'; 10367'-11928'; 12034'-13919'; 14097'-16893'; 17013'-17038'; 17540'-18380'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 9456 ft. | # Of Holes: | 966 | | Interval Bottom: | 18380 ft. | Hole Size: | 0.38 in. |
|
Formation CARL Formation Classification: OW Status: CM - 11/6/2019 Interval Top: 9011 ft. Interval Bottom: 18598 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | 10/2/2019 | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/24/2019 | | Treatment Summary: | Perforated Intervals: 9011'-9430'; 11950'-12000'; 17072'-17518'; 18404'-18598'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 9011 ft. | # Of Holes: | 136 | | Interval Bottom: | 18598 ft. | Hole Size: | 0.38 in. |
|
Formation CLCDFH Formation Classification: OW Status: PR - 10/13/2019 Interval Top: 9011 ft. Interval Bottom: 18598 ft.| Completed Information for Formation CARLILE-CODELL-FORT HAYS | | 1st Production Date: | 10/2/2019 | Choke Size: | | | Formation Name: | CARLILE-CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/24/2019 | | Treatment Summary: | Frac'd Carlile-Codell-Fort Hays with a 39-stage plug-and-perf;
141564 total bbls fluid pumped: 126815 bbls gelled fluid and 14749 bbls fresh water;
7312990 total lbs proppant pumped: all 30/50 sand. | | Total fluid used in treatment (bbls): | 141564 | Max pressure during treatment (psi): | 8652 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 39 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 10420 | | Fresh water used in treatment (bbls): | 14749 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 7312990 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8843 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/13/2019 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 163 | | BBLS_OIL | 401 | | BTU_GAS | 1300 | | CALC_BBLS_H2O | 163 | | CALC_BBLS_OIL | 401 | | CALC_GOR | 1923 | | CALC_MCF_GAS | 771 | | CASING_PRESS | 2347 | | GRAVITY_OIL | 49 | | MCF_GAS | 771 | | TUBING_PRESS | 1793 |
| | Perforation Data: | | Interval Top: | 9011 ft. | # Of Holes: | 1135 | | Interval Bottom: | 18598 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6820 |
| Total Gas Produced (MCF) | 183455 |
| GOR | 26899 |
| GOR Determination | MCFE |
| Average BOE per Day | 105.192 |
| Average MCFE per Day | 610.110 |
| Federal Financial Assurance | i | |
|
|
