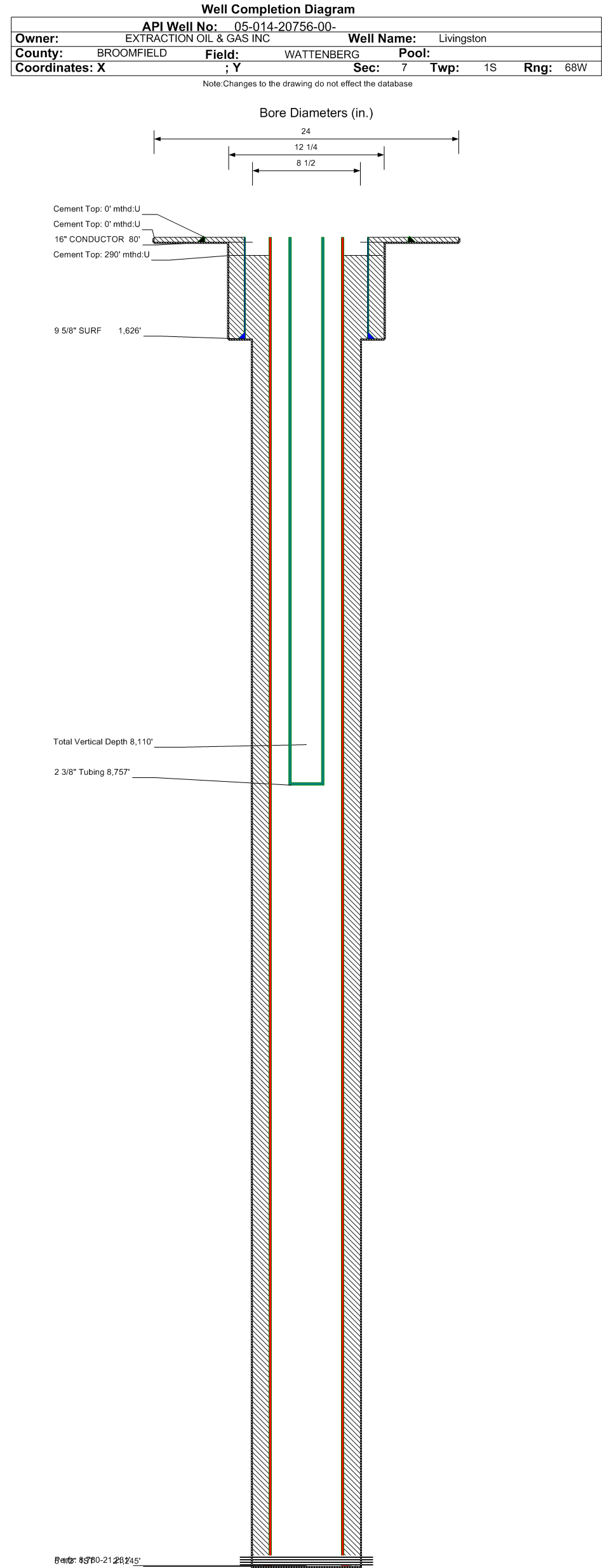

Wellbore #00 Wellbore Classification: OW Status: PR - 8/1/2023 Measured TD: 21250 ft. Vertical TD: 8110 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/31/2020 | | Proposed Top PZ Location: | Sec:7 Twp: 1S 68W | Footage: 2461 FSL 1333 FWL | | Bottom Hole Location: | Sec:19 Twp: 1S 68W | Footage: 460 FSL 1301 FWL | | Proposed Depth/Form: | 21363 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-2274 , Unit Acreage: 1600, Drill Unit: 7: S/2, 18 & 19: ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 21363 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2894, Top: 1500 ft., Bottom: 21363 ft. |
| | |
| Wellbore Completed | | Completion Date: | 7/10/2019 | | Spud Date: | 6/6/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 21250 ft. | Measured PB depth: | 21240 ft. | | True Vertical TD: | 8110 ft. | True Vertical PB depth: | 8110 ft. | | Top PZ Location: | Sec:7 Twp: 1S 68W | Footage: 2424 FSL 1348 FWL | | Bottom Hole Location: | Sec:19 Twp: 1S 68W | Footage: 510 FSL 1305 FWL | | Log Types: | CBL, Mud Log, MWD/LWD, (Resistivity on 014-20753). | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1626 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 1628 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 21245 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 3437, Top: 290 ft., Bottom: 21250 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4901 ft. | | N | N | | SUSSEX | 5295 ft. | | N | N | | SHANNON | 5806 ft. | | N | N | | SHARON SPRINGS | 8460 ft. | | N | N | | NIOBRARA | 8496 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 8/1/2023 Interval Top: 8780 ft. Interval Bottom: 21231 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/19/2020 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/21/2019 | Treatment End Date: | 1/8/2020 | | Treatment Summary: | 62-stage plug-and-perf completion;
306239 total bbls fluid pumped: 275862 bbls gelled fluid and 30377 bbls fresh water (no acid).
12400135 total lbs proppant pumped: all 40/70 mesh. | | Total fluid used in treatment (bbls): | 306239 | Max pressure during treatment (psi): | 8373 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 62 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 21069 | | Fresh water used in treatment (bbls): | 30377 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 12400135 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8757 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/27/2020 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 500 | | BBLS_OIL | 680 | | BTU_GAS | 1390 | | CALC_BBLS_H2O | 500 | | CALC_BBLS_OIL | 680 | | CALC_GOR | 2018 | | CALC_MCF_GAS | 1372 | | CASING_PRESS | 2735 | | GRAVITY_OIL | 52 | | MCF_GAS | 1372 | | TUBING_PRESS | 2195 |
| | Perforation Data: | | Interval Top: | 8780 ft. | # Of Holes: | 1465 | | Interval Bottom: | 21231 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 9315 |
| Total Gas Produced (MCF) | 206884 |
| GOR | 22209 |
| GOR Determination | MCFE |
| Average BOE per Day | 123.268 |
| Average MCFE per Day | 714.952 |
| Federal Financial Assurance | i | |
|
|
