COGIS - WELL SCOUT CARD

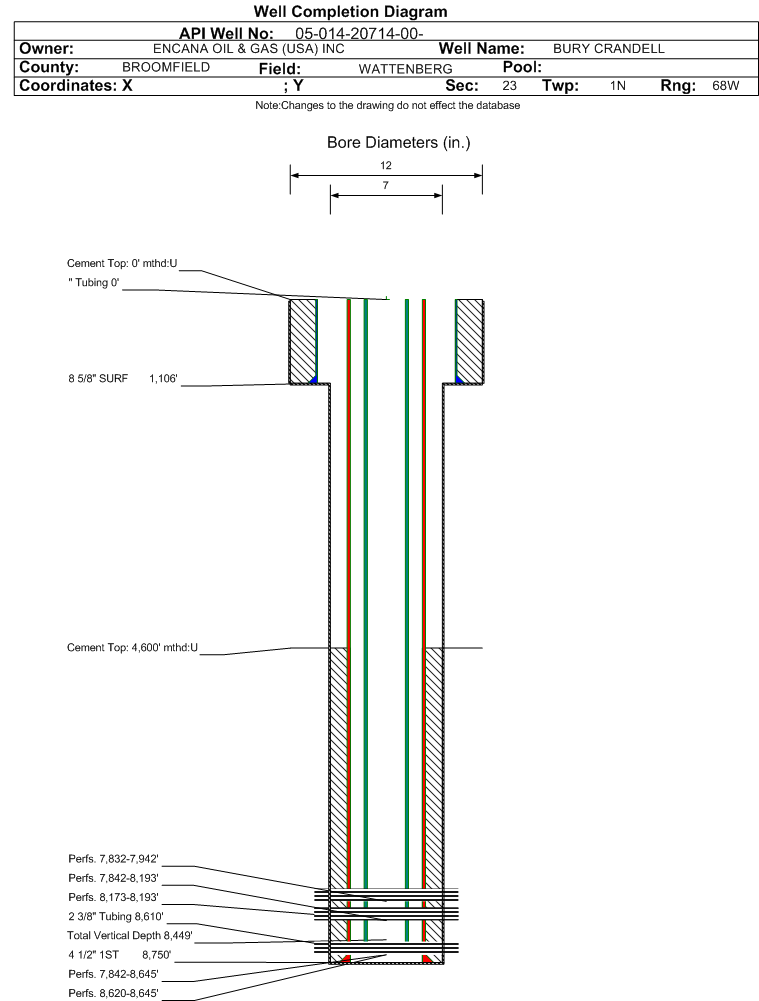

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-014-20714		Well Classification: GW Status: PA - 10/21/2022
Well Name/No:BURY CRANDELL #8-4-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/21/2022
FacilityID:428841LocationID:321535
Municipality/County:BROOMFIELD / BROOMFIELD #014Location:NENE 23 1N68W 6
Field:WATTENBERG - #90750Elevation:5112 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1046FNL  1019 FELLat/Long: 40.041310 / -104.964850Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.041311 / -104.964864Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/2/2015
End Date: 3/5/2015
Reported: 12/16/2015
Days to report: 286
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/21/2022             Measured TD: 8762 ft.    Vertical TD: 8449 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/21/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:4/7/2012
Proposed Top PZ Location:Sec:23 Twp: 1N 68W Footage: 2637 FNL  130 FEL
Bottom Hole Location:Sec:23 Twp: 1N 68W Footage: 2637 FNL  130 FEL
Proposed Depth/Form:8728 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1090 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 350, Top: 0 ft., Bottom: 1090 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8728 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 310, Top: 7537 ft., Bottom: 8728 ft.
Wellbore Completed
Completion Date:1/17/2012
Spud Date:1/11/2012Spud Date Is:ACTUAL
Measured TD:8762 ft.Measured PB depth:8703 ft.
True Vertical TD:8449 ft.True Vertical PB depth:8396 ft.
Top PZ Location:Sec:23 Twp: 1N 68WFootage: 2637 FNL  130 FEL
Bottom Hole Location:Sec:23 Twp: 1N 68WFootage: 2637 FNL  130 FEL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1106 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 1106 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8750 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 740, Top: 4600 ft., Bottom: 8750 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX5027 ft.
NIOBRARA7842 ft.
CODELL8173 ft.
J SAND8611 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/21/2022                Interval Top: 8620 ft.    Interval Bottom: 8645 ft.

 Completed Information for Formation J SAND
1st Production Date:4/9/2012Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/2/2012
Treatment Summary:Frac'd the J-Sand 8620’-8645’, (50 holes)w/ 64,302 gal 18 # pHaser Hybrid cross linked gel containing 250,000 # 20/40 Sand. 03-02-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8620 ft.# Of Holes:50
Interval Bottom:8645 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/18/2022                 Interval Top: 8173 ft.    Interval Bottom: 8193 ft.

 Completed Information for Formation CODELL
1st Production Date:4/9/2012Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/5/2012
Treatment Summary:Set CFP @ 8243. 03-02-12 Frac'd the Codell 8,173’ – 8,193’ (40 holes) w/ 89,460 gal 22# pHaser Hybrid cross linked gel containing 49,080 # 30/50 sand. 03-05-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8173 ft.# Of Holes:40
Interval Bottom:8193 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:                     Status:  CM - 4/16/2012                 Interval Top: 7842 ft.    Interval Bottom: 8645 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/16/2012
Treatment Summary:Set CBP @ 7800'. 04-01-12 Drilled out CBP @ 7800', CFP @ 7972', 8243' to commingle the JSND-NBRR-CDL. 04-02-12
Tubing Size:2.375 in.Tubing Setting Depth:8610 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/16/2012Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 89
BTU_GAS 1308
CALC_BBLS_H2O 55
CALC_BBLS_OIL 89
CALC_GOR 2966
CALC_MCF_GAS 264
CASING_PRESS 1530
GRAVITY_OIL 50
MCF_GAS 264
TUBING_PRESS 420
Perforation Data:
Interval Top:7842 ft.# Of Holes:202
Interval Bottom:8645 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/21/2022                Interval Top: 7842 ft.    Interval Bottom: 8193 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/9/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7842 ft.# Of Holes:154
Interval Bottom:8193 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/18/2022                 Interval Top: 7842 ft.    Interval Bottom: 7932 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/9/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/5/2012
Treatment Summary:Set CFP @ 7982'. 03-05-12 Frac'd the Niobrara 7,842’ – 7,932’ (112 holes), w/ 99,078 gals 18 # pHaser Hybrid cross linked gel containing 49,240 # 30/50 sand. 03-05-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7842 ft.# Of Holes:112
Interval Bottom:7932 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/21/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
