COGIS - WELL SCOUT CARD

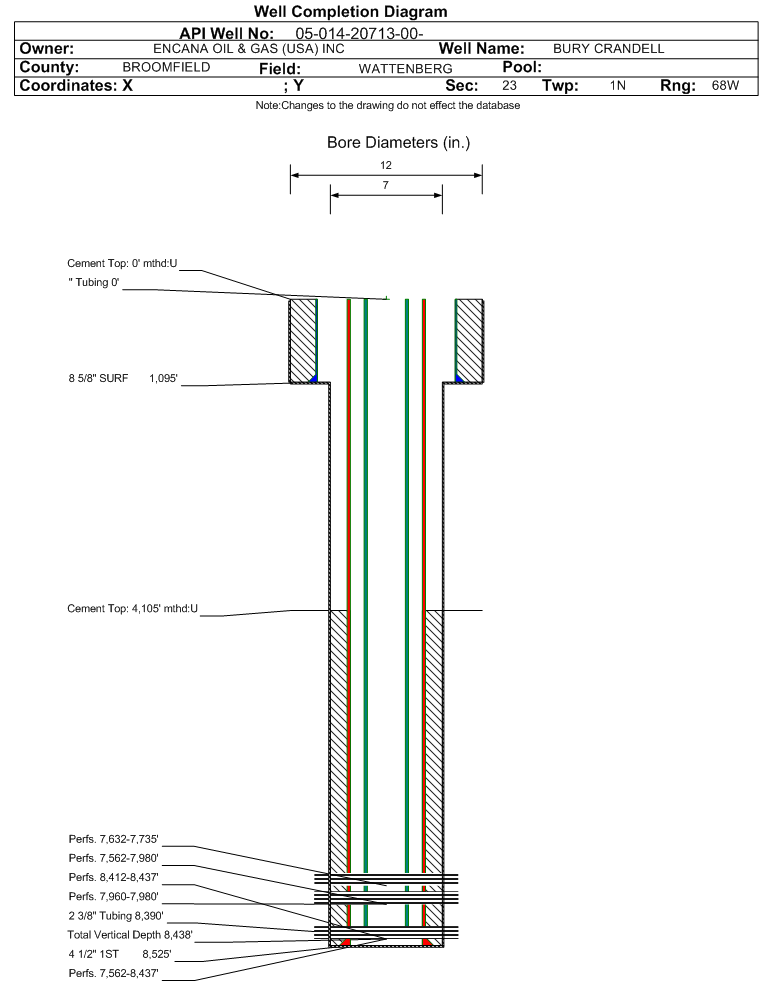

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-014-20713		Well Classification: GW Status: PR - 3/1/2025
Well Name/No:BURY CRANDELL #8-2-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:423160LocationID:321535
Municipality/County:BROOMFIELD / BROOMFIELD #014Location:NENE 23 1N68W 6
Field:WATTENBERG - #90750Elevation:5113 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1036FNL  1003 FELLat/Long: 40.041330 / -104.964790Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.041336 / -104.964812Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/1/2012
End Date: 3/1/2012
Reported: 5/2/2012
Prior to rule 205A.b.(2)(A)
Days to report: 62
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2025             Measured TD: 8545 ft.    Vertical TD: 8438 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/11/2013
Proposed Top PZ Location:Sec:23 Twp: 1N 68W Footage: 1325 FNL  50 FEL
Bottom Hole Location:Sec:23 Twp: 1N 68W Footage: 1325 FNL  50 FEL
Proposed Depth/Form:8539 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1090 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 397, Top: 0 ft., Bottom: 1090 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8539 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 191, Top: 7353 ft., Bottom: 8539 ft.
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5179 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 83, Top: 4579 ft., Bottom: 5179 ft.
Wellbore Completed
Completion Date:1/2/2012
Spud Date:12/27/2011Spud Date Is:ACTUAL
Measured TD:8545 ft.Measured PB depth:8480 ft.
True Vertical TD:8438 ft.True Vertical PB depth:8372 ft.
Top PZ Location:Sec:23 Twp: 1N 68WFootage: 1325 FNL  50 FEL
Bottom Hole Location:Sec:23 Twp: 1N 68WFootage: 1325 FNL  50 FEL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12 in., Size: 8.625 in., Top: 0 ft., Depth: 1095 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 1095 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7 in., Size: 4.5 in., Top: 0 ft., Depth: 8525 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 740, Top: 4105 ft., Bottom: 8525 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4775 ft.
NIOBRARA7562 ft.
CODELL7960 ft.
J SAND8400 ft.

Formation JSND                     Formation Classification:                       Status:  PR - 3/1/2025                  Interval Top: 8412 ft.    Interval Bottom: 8437 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/1/2012
Treatment Summary:Frac'd the J-Sand 8412’-8437’, (50 holes)w/ 61,656 gal 18 # pHaser Hybrid cross linked gel containing 250,080 # 20/40 Sand. 03-01-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8412 ft.# Of Holes:50
Interval Bottom:8437 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:                       Status:  CM - 6/26/2012                 Interval Top: 7960 ft.    Interval Bottom: 7980 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/3/2012
Treatment Summary:Set CFP @ 8020'. 03-02-12 Frac'd the Codell 7,960’ – 7,980’ (40 holes) w/ 73,710 gal 22# pHaser Hybrid cross linked gel containing 100,160 # 30/50 sand. 03-03-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7960 ft.# Of Holes:40
Interval Bottom:7980 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:                       Status:  CM - 6/26/2012                 Interval Top: 7632 ft.    Interval Bottom: 7735 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/5/2012
Treatment Summary:Set CFP @ 7775'. 03-03-12 Frac'd the Niobrara 7,632’ – 7,735’ (112 holes), w/ 81,480 gals 18 # pHaser Hybrid cross linked gel containing 99,520 # 30/50 sand. 03-05-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7632 ft.# Of Holes:112
Interval Bottom:7735 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:                     Status:  CM - 4/17/2012                 Interval Top: 7562 ft.    Interval Bottom: 8437 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/17/2012
Treatment Summary:Set CBP @ 7520'. 04-05-12 Drilled out CBP @ 7520', CFP's @ 7775', CFP @ 8020' to commingle the JSND-NBRR-CDL. 04-06-12
Tubing Size:2.375 in.Tubing Setting Depth:8390 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/17/2012Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BBLS_OIL 75
BTU_GAS 1308
CALC_BBLS_H2O 35
CALC_BBLS_OIL 75
CALC_GOR 4507
CALC_MCF_GAS 338
CASING_PRESS 1381
GRAVITY_OIL 49
MCF_GAS 338
TUBING_PRESS 629
Perforation Data:
Interval Top:7562 ft.# Of Holes:202
Interval Bottom:8437 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:                     Status:  PR - 3/1/2025                  Interval Top: 7562 ft.    Interval Bottom: 7980 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7562 ft.# Of Holes:152
Interval Bottom:7980 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)8312
GOR
GOR DeterminationMCFE
Average BOE per Day4.251
Average MCFE per Day24.622

 Federal Financial Assurance  i

 Tribal Well  i No
