Wellbore #00 Wellbore Classification: GW Status: AB - 2/14/2024 Measured TD: 8680 ft. Vertical TD: 8571 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 2/14/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/20/2012 | | Proposed Top PZ Location: | Sec:26 Twp: 1N 68W | Footage: 2590 FNL 50 FWL | | Bottom Hole Location: | Sec:26 Twp: 1N 68W | Footage: 2590 FNL 50 FWL | | Proposed Depth/Form: | 8651 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1150 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 1150 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8651 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 320, Top: 7416 ft., Bottom: 8651 ft. |
| | |

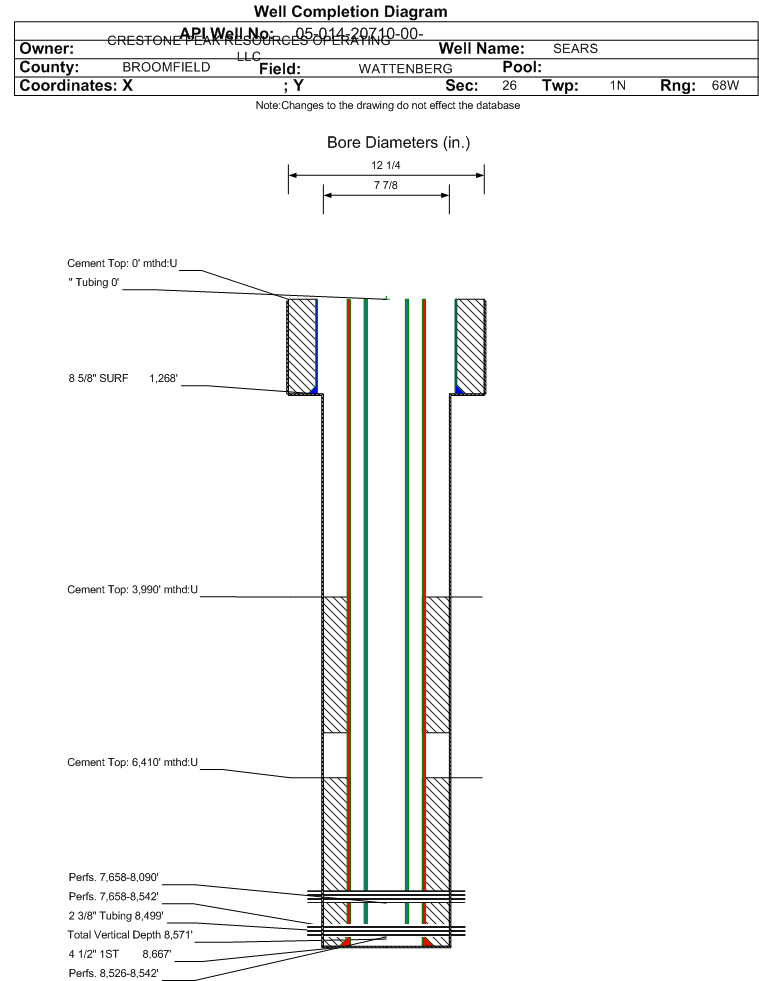

| Wellbore Completed | | Completion Date: | 6/9/2011 | | Spud Date: | 6/2/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8680 ft. | Measured PB depth: | 8625 ft. | | True Vertical TD: | 8571 ft. | True Vertical PB depth: | 8516 ft. | | Top PZ Location: | Sec:26 Twp: 1N 68W | Footage: 2518 FNL 87 FWL | | Bottom Hole Location: | Sec:26 Twp: 1N 68W | Footage: 2481 FNL 117 FWL | | Log Types: | CBL/DUAL IND/COMPENSATED DENSITY/COMPENSATED NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1268 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1268 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8667 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 340, Top: 6410 ft., Bottom: 8667 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5808 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 295, Top: 4020 ft., Bottom: 5808 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4920 ft. | | | | | NIOBRARA | 7650 ft. | | | | | CODELL | 8072 ft. | | | | | J SAND | 8512 ft. | | | |
Formation JSND Formation Classification: GW Status: AB - 2/14/2024 Interval Top: 8526 ft. Interval Bottom: 8542 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/23/2011 | | Treatment Summary: | J SAND COMPLETION. FRAC'D THE J-SAND 8526'-8542'. (32 HOLES) W/151,158 GAL 18 # VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,600 # 20/40 SAND. 06/23/2011. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 8526 ft. | # Of Holes: | 32 | | Interval Bottom: | 8542 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: CM - 12/20/2023 Interval Top: 8072 ft. Interval Bottom: 8090 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8072 ft. | # Of Holes: | 36 | | Interval Bottom: | 8090 ft. | Hole Size: | |
|
Formation JNBCD Formation Classification: GW Status: CM - 7/23/2011 Interval Top: 7658 ft. Interval Bottom: 8542 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/23/2011 | | Treatment Summary: | JSND-NBRR-CDL COMMINGLE. SET CBP @7610. 07/18/2011. DRILLED OUT CBP @ 7610', CFP @ 7950', 8190' TO COMMINGLE THE JSND-NBRR-CDL. 07/19/2011. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8499 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/23/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 35 | | BBLS_OIL | 130 | | BTU_GAS | 1219 | | CALC_BBLS_H2O | 35 | | CALC_BBLS_OIL | 130 | | CALC_GOR | 2692 | | CALC_MCF_GAS | 350 | | CASING_PRESS | 1818 | | GRAVITY_OIL | 50 | | MCF_GAS | 350 | | TUBING_PRESS | 895 |
| | Perforation Data: | | Interval Top: | 7658 ft. | # Of Holes: | 196 | | Interval Bottom: | 8542 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: AB - 2/14/2024 Interval Top: 7658 ft. Interval Bottom: 8090 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/22/2011 | | Treatment Summary: | CDL-NBRR COMPLETION. SET CFP @ 8190'. 06/23/2011. FRAC'D THE CODELL 8072'-8090' (36 HOLES) W/108,948 GAL 22 # VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,580 # 20/40 SAND. 06/23/2011. SET CFP @ 7950'. 06/23/2011. FRAC'D THE NIOBRARA 7658'-7672', 7832'-7850' (128 HOLES) W/131,124 GALS 18 # VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,660 # 20/40 SAND. 06/23/2011. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7658 ft. | # Of Holes: | 164 | | Interval Bottom: | 8090 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 12/20/2023 Interval Top: 7658 ft. Interval Bottom: 7850 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7658 ft. | # Of Holes: | 128 | | Interval Bottom: | 7850 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/14/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
