Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2025 Measured TD: 8290 ft. Vertical TD: 8178 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/19/2014 | | Proposed Top PZ Location: | Sec:36 Twp: 2N 69W | Footage: 1995 FNL 1936 FWL | | Bottom Hole Location: | Sec:36 Twp: 2N 69W | Footage: 1962 FNL 1956 FWL | | Proposed Depth/Form: | 8278 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NW/4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: NW/4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: NW/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 850 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 850 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8278 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 177, Top: 7178 ft., Bottom: 8278 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5208 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 152, Top: 4103 ft., Bottom: 5208 ft. |
| | |

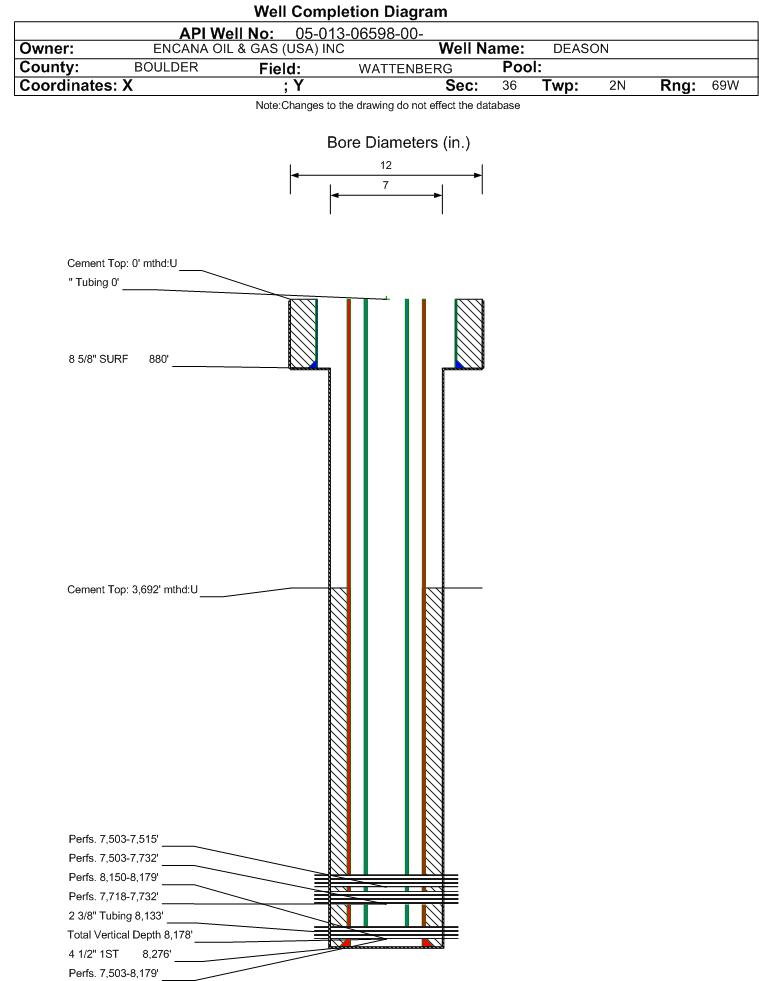

| Wellbore Completed | | Completion Date: | 8/19/2012 | | Spud Date: | 8/13/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8290 ft. | Measured PB depth: | 8228 ft. | | True Vertical TD: | 8178 ft. | True Vertical PB depth: | 8116 ft. | | Top PZ Location: | Sec:36 Twp: 2N 69W | Footage: 1995 FNL 1936 FWL | | Bottom Hole Location: | Sec:36 Twp: 2N 69W | Footage: 1962 FNL 1956 FWL | | Log Types: | CBL, Dual Ind/Compensated Density/Compensated Neutron | | Casing: | String Type: SURF, Hole Size: 12 in., Size: 8.625 in., Top: 0 ft., Depth: 880 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 890 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7 in., Size: 4.5 in., Top: 0 ft., Depth: 8276 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 720, Top: 3692 ft., Bottom: 8290 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4338 ft. | | | | | NIOBRARA | 7420 ft. | | | | | CODELL | 7716 ft. | | | | | J SAND | 8148 ft. | | | |
Formation JSND Formation Classification: OW Status: PR - 11/1/2025 Interval Top: 8150 ft. Interval Bottom: 8179 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 10/14/2012 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/13/2012 | Treatment End Date: | 11/20/2012 | | Treatment Summary: | Frac'd the J-Sand 8150'-8155’, 8160'-8179', (48 holes)w/ 64,680 gal 18 # Vistar
Hybrid cross linked gel containing 250,420 # 20/40 Sand. 09-14-12 | | Total fluid used in treatment (bbls): | 3824 | Max pressure during treatment (psi): | 3695 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.57 | | Recycled water used in treatment (bbls): | 3824 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 250420 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 8150 ft. | # Of Holes: | 48 | | Interval Bottom: | 8179 ft. | Hole Size: | 0.42 in. |
|
Formation CODL Formation Classification: OW Status: CM - 3/7/2013 Interval Top: 7718 ft. Interval Bottom: 7732 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 10/14/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/13/2012 | Treatment End Date: | 9/20/2012 | | Treatment Summary: | Set CFP @ 7778'. 09-14-12
Frac'd the Codell 7718'-7732’ (42 holes) w/ 88,620 gal 22# Vistar Hybrid cross linked gel
containing 253,220 # 30/50 sand. 09-15-12 | | Total fluid used in treatment (bbls): | 2732 | Max pressure during treatment (psi): | 5026 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 2732 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 253220 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7718 ft. | # Of Holes: | 42 | | Interval Bottom: | 7732 ft. | Hole Size: | 0.42 in. |
|
Formation JNBCD Formation Classification: OW Status: CM - 10/14/2012 Interval Top: 7503 ft. Interval Bottom: 8179 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 10/14/2012 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/14/2012 | Treatment End Date: | N/A | | Treatment Summary: | Set CBP @ 7470'. 09-19-12
Drilled out CBP and CFP's to commingle the JSND-NBRR-CDL. 09-20-12 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8133 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/14/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 74 | | BBLS_OIL | 85 | | BTU_GAS | 1269 | | CALC_BBLS_H2O | 74 | | CALC_BBLS_OIL | 85 | | CALC_GOR | 4871 | | CALC_MCF_GAS | 414 | | CASING_PRESS | 1984 | | GRAVITY_OIL | 52 | | MCF_GAS | 414 | | TUBING_PRESS | 1361 |
| | Perforation Data: | | Interval Top: | 7503 ft. | # Of Holes: | 132 | | Interval Bottom: | 8179 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: PR - 11/1/2025 Interval Top: 7503 ft. Interval Bottom: 7732 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 10/14/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7503 ft. | # Of Holes: | 90 | | Interval Bottom: | 7732 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 3/7/2013 Interval Top: 7503 ft. Interval Bottom: 7515 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/14/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/13/2012 | Treatment End Date: | 9/20/2012 | | Treatment Summary: | Set CFP @ 7565'. 09-15-12
Frac'd the Niobrara 7503-7515’, (48 holes), w/ 102,900 gals 18 # Vistar Hybrid cross linked
gel containing 250,640 # 30/50 sand. 09-17-12 | | Total fluid used in treatment (bbls): | 3387 | Max pressure during treatment (psi): | 4396 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.76 | | Recycled water used in treatment (bbls): | 3387 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 250640 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7503 ft. | # Of Holes: | 48 | | Interval Bottom: | 7515 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 13 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.008 |
| Average MCFE per Day | 0.036 |
| Federal Financial Assurance | i | |
|
|
