Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2022 Measured TD: 8700 ft. Vertical TD: 8531 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091696 | Expiration Date: | 5/27/2010 | | Proposed Top PZ Location: | Sec:23 Twp: 1N 69W | Footage: 718 FSL 1974 FWL | | Bottom Hole Location: | Sec:23 Twp: 1N 69W | Footage: 720 FSL 1974 FWL | | Proposed Depth/Form: | 8498 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SW4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 700 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 700 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8650 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: , Bottom: 8650 ft. |
| | |

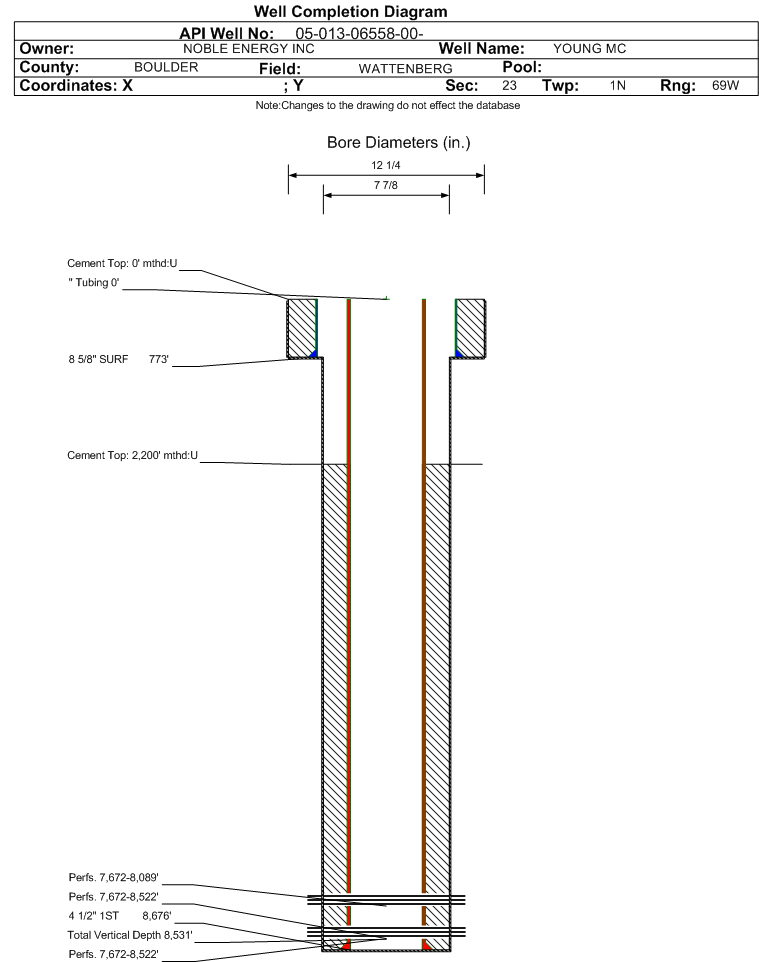

| Wellbore Completed | | Completion Date: | 9/8/2009 | | Spud Date: | 8/30/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8700 ft. | Measured PB depth: | 8632 ft. | | True Vertical TD: | 8531 ft. | True Vertical PB depth: | 8463 ft. | | Top PZ Location: | Sec:23 Twp: 1N 69W | Footage: 718 FSL 1974 FWL | | Bottom Hole Location: | Sec:23 Twp: 1N 69W | Footage: 720 FSL 1974 FWL | | Log Types: | CBL/GR/CCL, CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 773 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 277, Top: 0 ft., Bottom: 782 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8676 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 2200 ft., Bottom: 8676 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 7636 ft. | | | | | FORT HAYS | 8050 ft. | | | | | CODELL | 8070 ft. | | | | | D SAND | 8432 ft. | | | | | MOWRY | 8482 ft. | | | | | J SAND | 8495 ft. | | | |
Formation JNBCD Formation Classification: OW Status: CM - 1/20/2010 Interval Top: 7672 ft. Interval Bottom: 8522 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 1/12/2010 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/13/2009 | | Treatment Summary: | COMMINGLE CODELL/NIOBRARA/J-SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/20/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 90 | | BTU_GAS | 1252 | | CALC_BBLS_OIL | 90 | | CALC_GOR | 3466 | | CALC_MCF_GAS | 312 | | CASING_PRESS | 500 | | GRAVITY_OIL | 52 | | MCF_GAS | 312 |
| | Perforation Data: | | Interval Top: | 7672 ft. | # Of Holes: | 164 | | Interval Bottom: | 8522 ft. | Hole Size: | |
|
Formation JSND Formation Classification: OW Status: SI - 4/1/2022 Interval Top: 7672 ft. Interval Bottom: 8522 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 1/12/2010 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/13/2009 | | Treatment Summary: | FRAC'D J-SAND W/176568 GALS OF SILVERSTIM AND SLICKWATER WITH 335,000 #'S OF OTTAWA SAND.THE J-SAND IS PRODUCING THROUGH A COMPOSITE FLOW THROUGH PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7672 ft. | # Of Holes: | 48 | | Interval Bottom: | 8522 ft. | Hole Size: | 0.41 in. |
|
Formation NB-CD Formation Classification: OW Status: SI - 6/1/2022 Interval Top: 7672 ft. Interval Bottom: 8089 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/12/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/13/2009 | | Treatment Summary: | FRAC'D NIOBRARA W/175560 GALS OF SILVERSTIM AND SLICKWATER WITH 250,000 #'S OF OTTAWA SAND. NB PERFS 7672-7876, 48 HOLES, SIZE 0.73". CD PERFS 8071-8089, 68 HOLES, SIZE 0.41". FRAC'D CD W/133602 GALS SILVERSTIM & SW W/270,00#'S OTTAWA SAND. CD PRODUCING THROUGH COMPOSITE FLOW THROUGH PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7672 ft. | # Of Holes: | 116 | | Interval Bottom: | 8089 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2027 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI) | Y | Last Production
05/31/2022 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
