COGIS - WELL SCOUT CARD

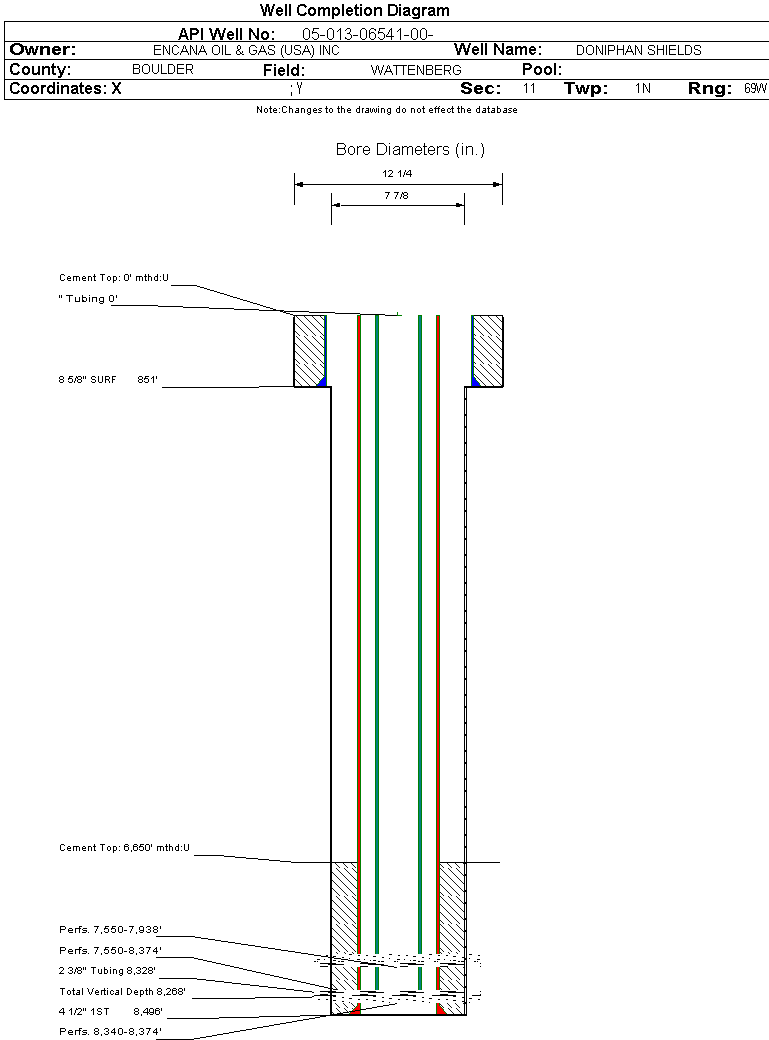

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-013-06541		Well Classification: GW Status: PA - 6/6/2024
Well Name/No:DONIPHAN SHIELDS #12-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/6/2024
FacilityID:289602LocationID:336380
County:BOULDER #013Location:NENW 11 1N69W 6
Field:WATTENBERG - #90750Elevation:5000 ft.
Planned Location:1192FNL  1811 FWLLat/Long: 40.069670 / -105.086690Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.069660 / -105.086690Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 6/6/2024             Measured TD: 8510 ft.    Vertical TD: 8268 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 6/6/2024
Wellbore PermitDIRECTIONAL
Permit #:20070468 Expiration Date:3/5/2008
Proposed Top PZ Location:Sec:11 Twp: 1N 69W Footage: 2129 FNL  589 FWL
Bottom Hole Location:Sec:11 Twp: 1N 69W Footage: 2129 FNL  589 FWL
Proposed Depth/Form:8468 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: NW
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: N2
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: NW
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5272 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 230, Top: 4323 ft., Bottom: 5272 ft.
Wellbore Completed
Completion Date:5/23/2007
Spud Date:5/15/2007Spud Date Is:ACTUAL
Measured TD:8510 ft.Measured PB depth:8382 ft.
True Vertical TD:8268 ft.True Vertical PB depth:8140 ft.
Top PZ Location:Sec:11 Twp: 1N 69WFootage: 2129 FNL  589 FWL
Bottom Hole Location:Sec:11 Twp: 1N 69WFootage: 2129 FNL  589 FWL
Log Types:CBL, CCL, VDL, GAMMA RAY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 851 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 0 ft., Bottom: 851 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8496 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 6650 ft., Bottom: 8496 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5470 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 5085 ft., Bottom: 5470 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4678 ft.NN
SHANNON5082 ft.NN
NIOBRARA7550 ft.NN
CODELL7922 ft.NN
J SAND8340 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/6/2024                  Interval Top: 8340 ft.    Interval Bottom: 8374 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2007
Treatment Summary:JSND COMPLETION FRAC'D THE J SAND W/ 238,620# SAND, 12,000# 20/40 SUPER LC. 180,848 GAL FRAC FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8340 ft.# Of Holes:44
Interval Bottom:8374 ft.Hole Size:0.73 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/29/2024                 Interval Top: 7922 ft.    Interval Bottom: 7938 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7922 ft.# Of Holes:64
Interval Bottom:7938 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/12/2007                 Interval Top: 7550 ft.    Interval Bottom: 8374 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2007
Treatment Summary:JSND-NBRR-CDL COMMINGLE DRILLED OUT CFP @ 7800' AND 8020' TO COMMINGLE THE JSND-NBRR-CDL
Tubing Size:2.375 in.Tubing Setting Depth:8328 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/12/2007Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 91
BBLS_OIL 56
CALC_BBLS_H2O 91
CALC_BBLS_OIL 56
CALC_GOR 2536
CALC_MCF_GAS 142
CASING_PRESS 356
MCF_GAS 142
Perforation Data:
Interval Top:7550 ft.# Of Holes:156
Interval Bottom:8374 ft.Hole Size:0.73 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/6/2024                  Interval Top: 7550 ft.    Interval Bottom: 7938 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2007
Treatment Summary:NBRR-CDL RECOMPLETION SET CFP @ 8020' 6/01/07 FRAC'D THE CODELL W/ 238,340# SAND, 12,000 20/40 SUPER LC, 117,090 GAL FRAC FLUID// SET CFP @ 7800" 06/01/07 FRAC'D THE NIOBRARA W/ 238,880# 20/40 SAND, 174,847 GAL FRAC FLUID, 12,000# SUPER LC
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7550 ft.# Of Holes:112
Interval Bottom:7938 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 1/29/2024                 Interval Top: 7550 ft.    Interval Bottom: 7700 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7550 ft.# Of Holes:48
Interval Bottom:7700 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/06/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
