COGIS - WELL SCOUT CARD

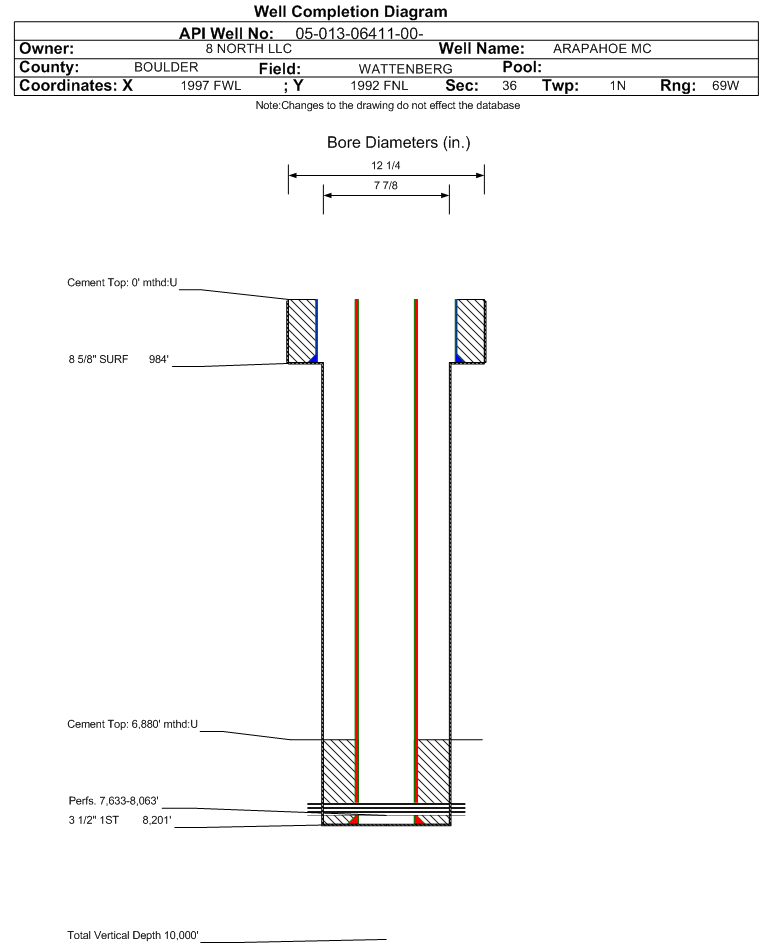

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-013-06411		Well Classification: GW Status: PA - 2/21/2018
Well Name/No:ARAPAHOE MC #36-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/21/2018
FacilityID:206916LocationID:321420
County:BOULDER #013Location:SENW 36 1N69W 6
Field:WATTENBERG - #90750Elevation:5138 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1992FNL  1997 FWLLat/Long: 40.009348 / -105.067338Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.009360 / -105.067350Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/21/2018             Measured TD: 8227 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/21/2018
Wellbore Permit
Permit #:20010657 Expiration Date:5/28/2003
Proposed Depth/Form:8700 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NW
Wellbore Completed
Completion Date:9/8/1993
Spud Date:8/12/1993Spud Date Is:ACTUAL
Measured TD:8227 ft.Measured PB depth:8182 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CD, CIL, CBL/CCL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 984 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 680, Top: 0 ft., Bottom: 984 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: , Depth: 8201 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 6880 ft., Bottom: 8201 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4760 ft.
NIOBRARA7590 ft.
FORT HAYS8027 ft.
CODELL8048 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/21/2018                 Interval Top: 7633 ft.    Interval Bottom: 8063 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/8/1993Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/8/1993
Treatment Summary:101,220 GAL YF535-40HT W/ 300,000# 20/40 M
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/7/1993Test Method:FLOWING
Hours Tested:8Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 15
CALC_BBLS_H2O 12
CALC_BBLS_OIL 45
CALC_GOR 4667
CALC_MCF_GAS 210
CASING_PRESS 480
MCF_GAS 70
Perforation Data:
Interval Top:7633 ft.# Of Holes:13
Interval Bottom:8063 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/21/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
