COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-013-06410		Well Classification: GW Status: PA - 2/15/2019
Well Name/No:ARAPAHOE MC #36-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/15/2019
FacilityID:206915LocationID:321419
Municipality/County:ERIE / BOULDER #013Location:SWNW 36 1N69W 6
Field:WATTENBERG - #90750Elevation:5164 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1997FNL  665 FWLLat/Long: 40.009378 / -105.072098Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.009400 / -105.072100Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/15/2019             Measured TD: 8278 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/15/2019
Wellbore Permit
Permit #:19930964 Expiration Date:11/20/1993
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:8/30/1993
Spud Date:8/5/1993Spud Date Is:ACTUAL
Measured TD:8278 ft.Measured PB depth:8230 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CDL, DIL, CBL/CCL/GR

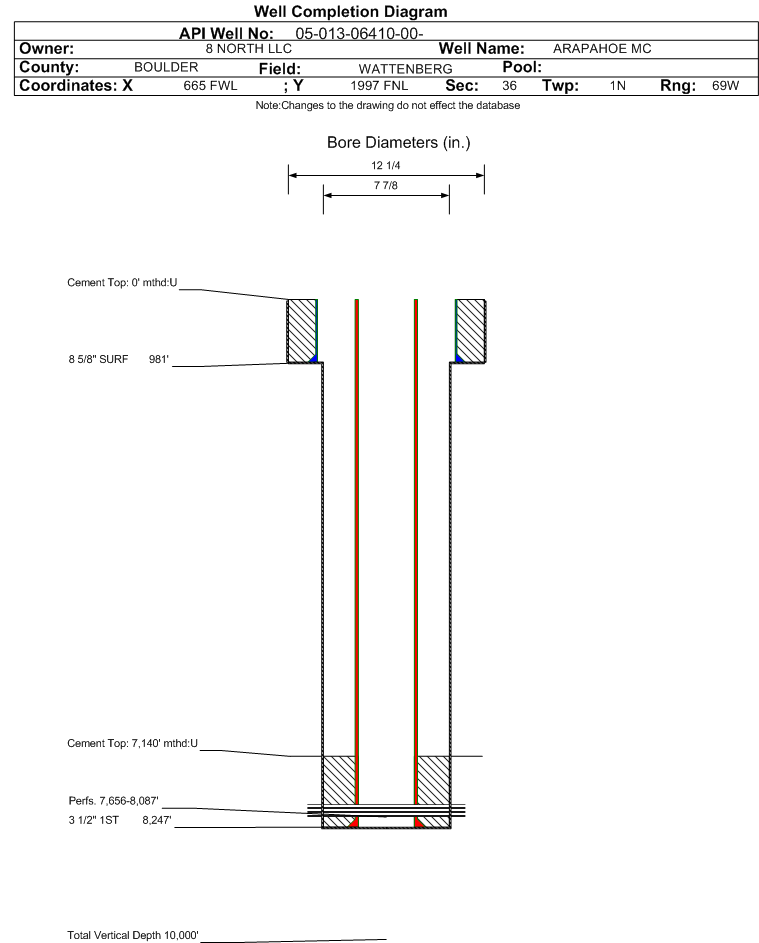

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 981 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 981 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 8247 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7140 ft., Bottom: 8247 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4270 ft.
NIOBRARA7297 ft.
CODELL7644 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/15/2019                 Interval Top: 7656 ft.    Interval Bottom: 8087 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/30/1993Choke Size:0.172 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/30/1993
Treatment Summary:106,554 GAL YF535-40HT W/ 300,000# 20/40 M
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/15/1993Test Method:FLOWING
Hours Tested:8Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 20
CALC_BBLS_H2O 12
CALC_BBLS_OIL 60
CALC_GOR 5000
CALC_MCF_GAS 300
CASING_PRESS 860
MCF_GAS 100
Perforation Data:
Interval Top:7656 ft.# Of Holes:13
Interval Bottom:8087 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/15/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
