Wellbore #00 Wellbore Classification: OW Status: PA - 6/30/2021 Measured TD: 8667 ft. Vertical TD: 8542 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 6/30/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030009 | Expiration Date: | 5/27/2010 | | Proposed Top PZ Location: | Sec:26 Twp: 1N 69W | Footage: 614 FNL 1961 FEL | | Bottom Hole Location: | Sec:26 Twp: 1N 69W | Footage: 614 FNL 1961 FEL | | Proposed Depth/Form: | 8542 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW/4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: NW/4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW/4 |
| | |

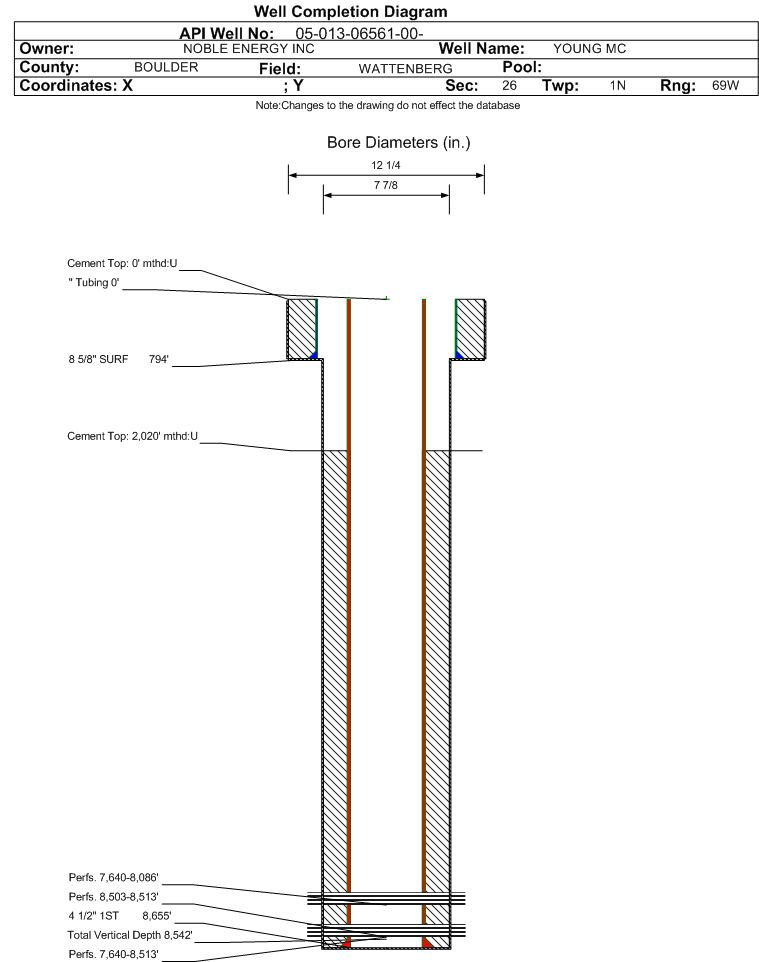

| Wellbore Completed | | Completion Date: | 8/27/2009 | | Spud Date: | 8/22/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8667 ft. | Measured PB depth: | 8579 ft. | | True Vertical TD: | 8542 ft. | True Vertical PB depth: | 8454 ft. | | Top PZ Location: | Sec:26 Twp: 1N 69W | Footage: 614 FNL 1961 FEL | | Bottom Hole Location: | Sec:26 Twp: 1N 69W | Footage: 614 FNL 1961 FEL | | Log Types: | CBL/GR/CCL, NO OPEN HOLE LOGS RAN. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 794 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 245, Top: 0 ft., Bottom: 794 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8655 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 6648 ft., Bottom: 8655 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6648 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 1700 ft., Bottom: 6648 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 7640 ft. | | N | N | | FORT HAYS | 8051 ft. | | N | N | | CODELL | 8072 ft. | | N | N | | GREENHORN | 8171 ft. | | N | N | | D SAND | 8425 ft. | | N | N | | MOWRY | 8474 ft. | | N | N | | J SAND | 8488 ft. | | N | N | | J-3 SAND | 8498 ft. | | N | N |
Formation JSND Formation Classification: OW Status: AB - 6/30/2021 Interval Top: 8503 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 12/1/2009 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/30/2009 | | Treatment Summary: | FRAC'D J SAND W/179088 GALS OF SLICKWATER & SILVERSTIM W/335280# OTTAWA SAND. J-SAND PRODUCING THROUGH FLOW PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | No Perforation Data was found for formation JSND. |
|
Formation JNBCD Formation Classification: OW Status: CM - 12/18/2009 Interval Top: 7640 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/30/2009 | | Treatment Summary: | COMMINGLE NIOBRARA, CODELL, AND J-SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/18/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 86 | | BBLS_OIL | 106 | | BTU_GAS | 1210 | | CALC_BBLS_OIL | 106 | | CALC_GOR | 5896 | | CALC_MCF_GAS | 625 | | CASING_PRESS | 690 | | GRAVITY_OIL | 56 | | MCF_GAS | 625 | | TUBING_PRESS | 0 |
| | No Perforation Data was found for formation JNBCD. |
|
Formation NB-CD Formation Classification: OW Status: AB - 6/30/2021 Interval Top: 7640 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/1/2009 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/30/2009 | | Treatment Summary: | NB PERFS 7640-7840, 48 HOLES@.73". FRAC'D NB W/ 177,954 GALS SLICKWTR & SILVERSTIM W/250,420#'S OTTAWA SAND. CD PERFS 8075-8086, 44 HOLES@.41". FRAC'D CD W/133560 GALS SLICKWTR, SILVERSTIM & 15% HCL W/270460# OTTAWA SND. CD PROD THRU FLOW PLUGS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | No Perforation Data was found for formation NB-CD. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/30/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
