 Surface Location
 API# 05-013-06284		Well Classification: OW Status: PA - 7/7/2021
Well Name/No:YOUNG #5-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/7/2021
FacilityID:206789LocationID:335559
Municipality/County:ERIE / BOULDER #013Location:SWSW 23 1N69W 6
Field:WATTENBERG - #90750Elevation:5123 ft.
Planned Location:630FSL  730 FWLLat/Long: 40.030947 / -105.090558Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.030850 / -105.090540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/7/2021             Measured TD: 8455 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/7/2021
Wellbore PermitDRIFTED
Permit #:19921375 Expiration Date:10/16/1993
Proposed Depth/Form:8520 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: SW
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: SW
Wellbore Completed
Completion Date:10/29/1992
Spud Date:10/17/1992Spud Date Is:ACTUAL
Measured TD:8455 ft.Measured PB depth:8455 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNDL

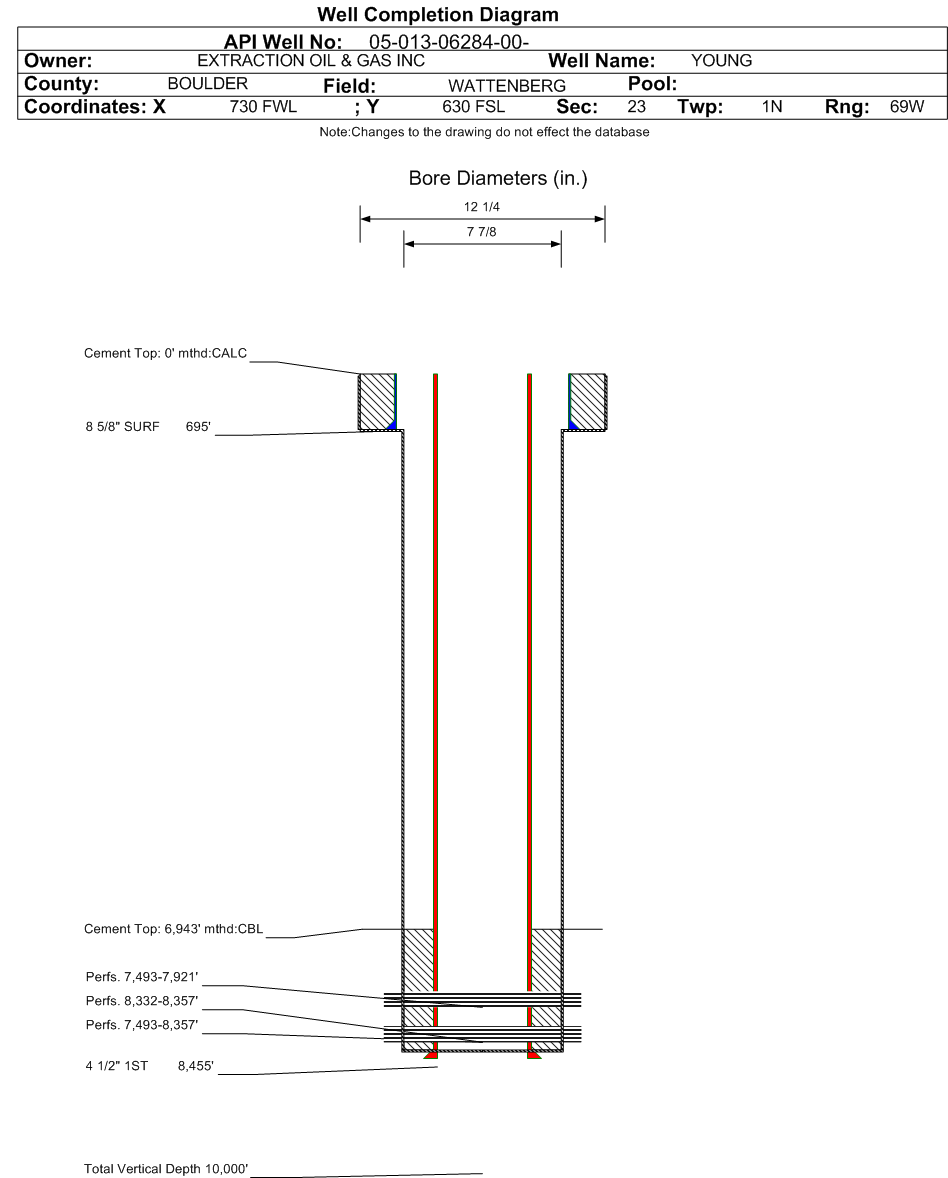

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 695 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 490, Top: 0 ft., Bottom: 695 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8455 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 322, Top: 6918 ft., Bottom: 8455 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7474 ft.
CODELL7909 ft.
J SAND8332 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/7/2021                  Interval Top: 8332 ft.

 Completed Information for Formation J SAND
1st Production Date:12/9/1992Choke Size:0.156 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/29/1992
Treatment Summary:22,400# 100 M & 514,000# 20/40 M
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/31/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
CASING_PRESS 570
MCF_GAS 150
TUBING_PRESS 360
No Perforation Data was found for formation JSND.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 5/1/2020                  Interval Top: 7493 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:5/15/1993Choke Size:0.188 in.
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/22/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 17
CALC_GOR 9411
CASING_PRESS 700
MCF_GAS 160
TUBING_PRESS 500
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/7/2021                  Interval Top: 7493 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/27/1993Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/29/1992
Treatment Summary:500 GAL 7.5% HCL ACID, 103,270 GAL YF540HT & 300,000# SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/30/1993Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 30
CALC_GOR 5000
CASING_PRESS 800
MCF_GAS 150
TUBING_PRESS 600
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/07/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
