 Surface Location
 API# 05-013-06257		Well Classification: GW Status: PA - 10/13/2012
Well Name/No:YOUNG #6-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/13/2012
FacilityID:206762LocationID:321354
Municipality/County:ERIE / BOULDER #013Location:NWSE 23 1N69W 6
Field:WATTENBERG - #90750Elevation:5164 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FSL  1785 FELLat/Long: 40.033907 / -105.080848Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.033920 / -105.080980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/13/2012             Measured TD: 8499 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/13/2012
Wellbore Permit
Permit #:19911298 Expiration Date:11/25/1992
Proposed Depth/Form:8600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:3/4/1992
Spud Date:2/3/1992Spud Date Is:ACTUAL
Measured TD:8499 ft.Measured PB depth:8499 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNDL

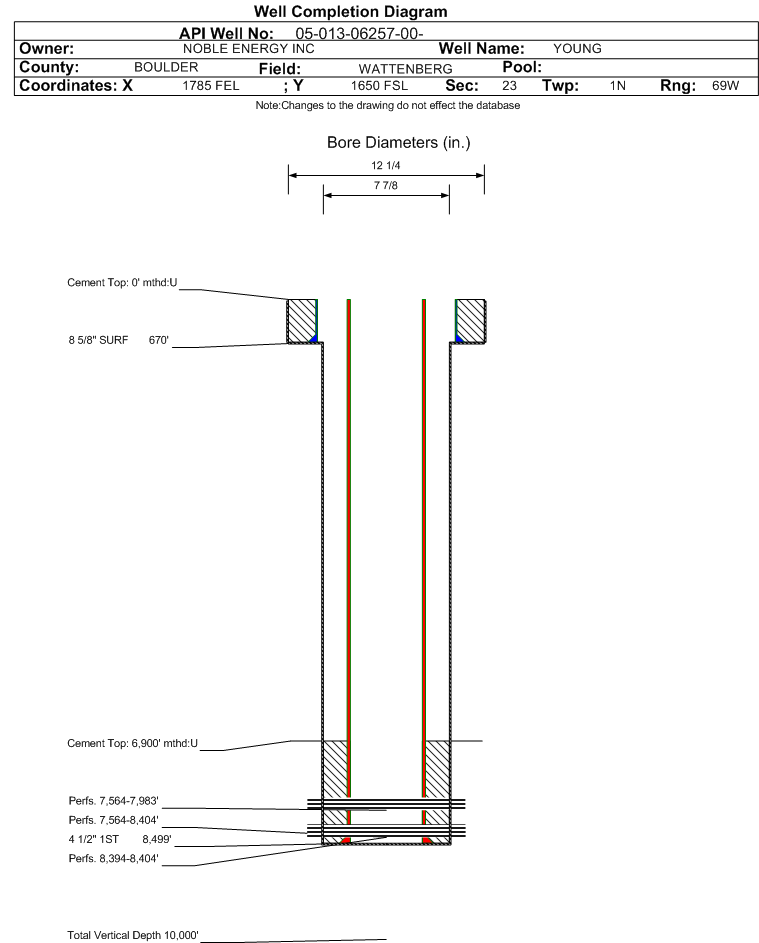

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 670 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 670 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8499 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 335, Top: 6900 ft., Bottom: 8499 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4578 ft.
NIOBRARA7524 ft.
CODELL7968 ft.
J SAND8380 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/13/2012                Interval Top: 8394 ft.

 Completed Information for Formation J SAND
1st Production Date:3/29/1992Choke Size:0.156 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/4/1992
Treatment Summary:24,000# 100 M & 521,000# 20/40 M
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/15/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 40
CASING_PRESS 750
MCF_GAS 240
TUBING_PRESS 500
No Perforation Data was found for formation JSND.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/13/2012                Interval Top: 7564 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:3/2/1993Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 13
CALC_GOR 25000
CASING_PRESS 600
MCF_GAS 325
TUBING_PRESS 250
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/13/2012                Interval Top: 7564 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/10/1992Choke Size:0.000 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/4/1992
Treatment Summary:24,000# 100 M & 455,000# 20/40 M
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/17/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 47
CALC_GOR 2127
MCF_GAS 100
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/13/2012
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
