COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-013-06252		Well Classification: GW Status: PA - 10/10/2013
Well Name/No:YOUNG #3-25
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/10/2013
FacilityID:206757LocationID:321349
Municipality/County:ERIE / BOULDER #013Location:NWSE 25 1N69W 6
Field:WATTENBERG - #90750Elevation:5118 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FSL  1650 FELLat/Long: 40.019307 / -105.061307Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.019330 / -105.061260Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

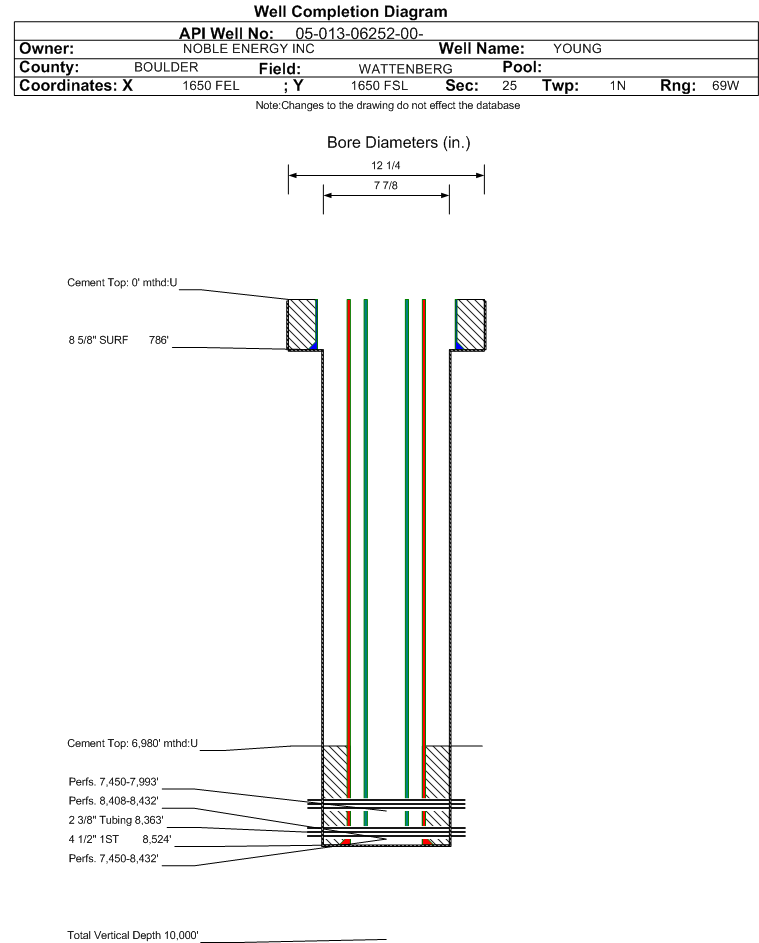

Wellbore #00             Wellbore Classification: GW             Status: PA - 10/10/2013             Measured TD: 8525 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/10/2013
Wellbore Permit
Permit #:19910427 Expiration Date:5/30/1992
Proposed Depth/Form:8620 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SE
Wellbore Completed
Completion Date:8/29/1991
Spud Date:7/22/1991Spud Date Is:ACTUAL
Measured TD:8525 ft.Measured PB depth:8524 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNDL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 786 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 786 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8524 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 458, Top: 6980 ft., Bottom: 8524 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4560 ft.
NIOBRARA7510 ft.
CODELL7978 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/10/2013                Interval Top: 8408 ft.

 Completed Information for Formation J SAND
1st Production Date:9/12/1991Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/29/1991
Treatment Summary:24,000# 100 M, 522,000# 20/40 M
Tubing Size:2.375 in.Tubing Setting Depth:8363 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/20/1991Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 21
CASING_PRESS 1300
MCF_GAS 450
TUBING_PRESS 1240
No Perforation Data was found for formation JSND.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/10/2013                Interval Top: 7450 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:8/18/1992Choke Size:0.156 in.
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8363 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/31/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 30
CALC_GOR 11867
CASING_PRESS 1100
GRAVITY_OIL 44
MCF_GAS 356
TUBING_PRESS 700
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/10/2013                Interval Top: 7450 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/11/1992Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/29/1991
Treatment Summary:25,600# 100 M, 448,300#
Tubing Size:2.375 in.Tubing Setting Depth:8363 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/22/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 13
CALC_GOR 14154
CASING_PRESS 600
GRAVITY_OIL 48
MCF_GAS 184
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/10/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
