COGIS - WELL SCOUT CARD
API number must be numeric.

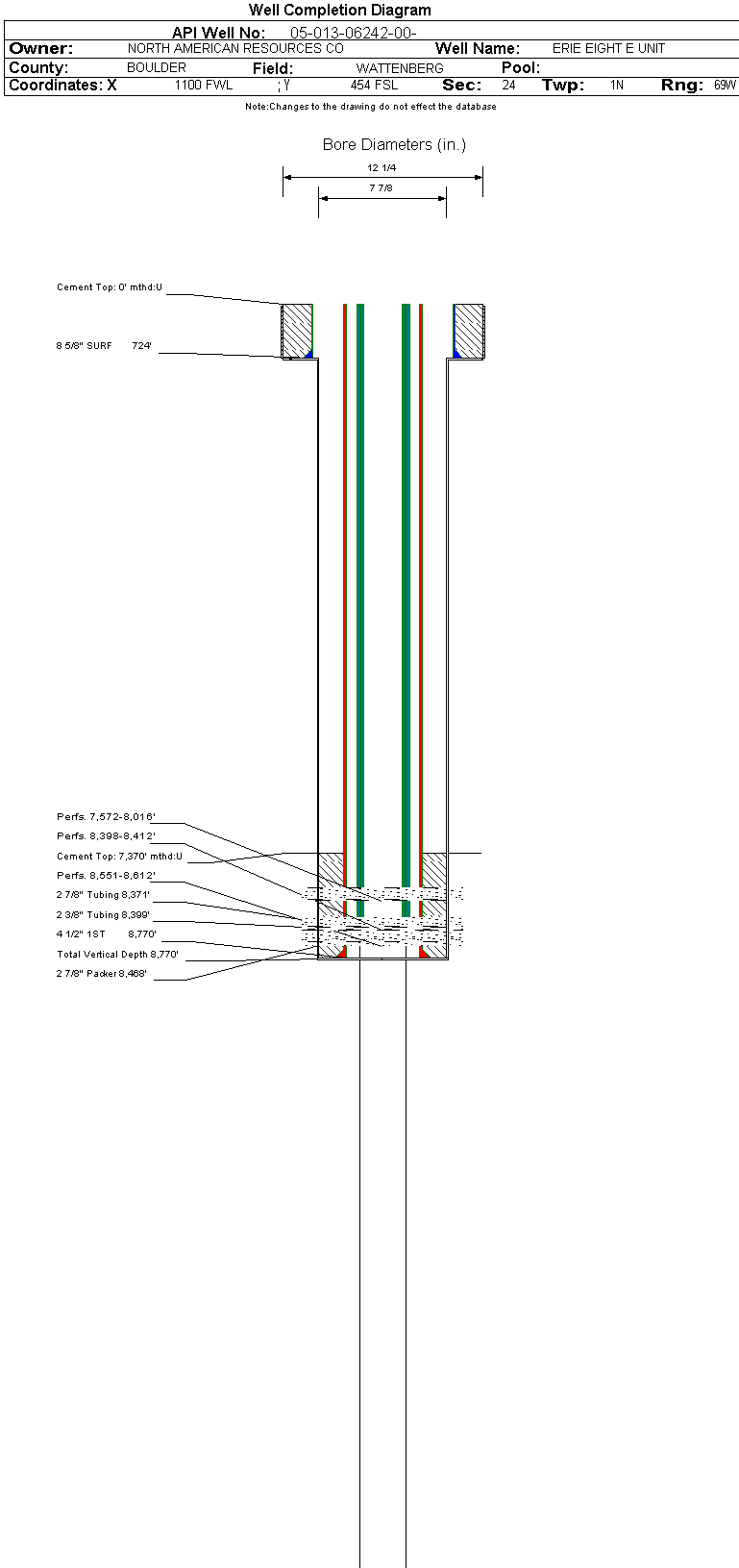

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-013-06242		Well Classification: GW Status: PA - 1/16/2001
Well Name/No:ERIE EIGHT E UNIT #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NORTH AMERICAN RESOURCES COMPANY - 63800
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/16/2001
FacilityID:206747LocationID:379816
Municipality/County:ERIE / BOULDER #013Location:SWSW 24 1N69W 6
Field:WATTENBERG - #90750Elevation:5156 ft.
Planned Location:454FSL  1100 FWLLat/Long: 40.030687 / -105.070538Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/16/2001             Measured TD: 8770 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/16/2001
Wellbore Permit
Permit #:19870756 Expiration Date:10/14/1988
Proposed Depth/Form:8770 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 318 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:3/10/1988
Spud Date:3/1/1988Spud Date Is:ACTUAL
Measured TD:8770 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:MICRO, DIL, SDL, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 724 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8770 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 7370 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN4222 ft.
SUSSEX4650 ft.
SHANNON5248 ft.
NIOBRARA7532 ft.
FORT HAYS7980 ft.
CODELL8000 ft.
BENTONITE8217 ft.
J SAND8397 ft.
DAKOTA8550 ft.
MORRISON8630 ft.

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 1/16/2001                 Interval Top: 8551 ft.

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/10/1988
Treatment Summary:FRAC'D W/ NITROGEN ASSISTED VIKING ID 35 LHT W/ 51,240 GAL GEL, W/ 12,740# 100 M., 70,160# 20/40 M WHITE SAND & 10,180# PR 6000 20/40 M
Tubing Size:2.875 in.Tubing Setting Depth:8371 ft.
Tubing Packer Depth:8488 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CASING_PRESS 550
TUBING_PRESS 280
No Perforation Data was found for formation DKTA.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/16/2001                 Interval Top: 8398 ft.

 Completed Information for Formation J SAND
1st Production Date:6/28/1988Choke Size:0.750 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/10/1988
Treatment Summary:FRAC W/ 360,000# 20/40 M IN 115,000 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:8399 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/28/1988Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 47
CASING_PRESS 560
MCF_GAS 160
TUBING_PRESS 90
No Perforation Data was found for formation JSND.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/16/2001                 Interval Top: 7572 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/10/1988
Treatment Summary:CODL: FRAC W/ 160,000# 10/40 M IN 68,000 GAL GEL. NBRR: FRAC W/ 300,000# 20/40 M IN 94,500 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:8399 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/16/2001
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
