COGIS - WELL SCOUT CARD
API number must be numeric.

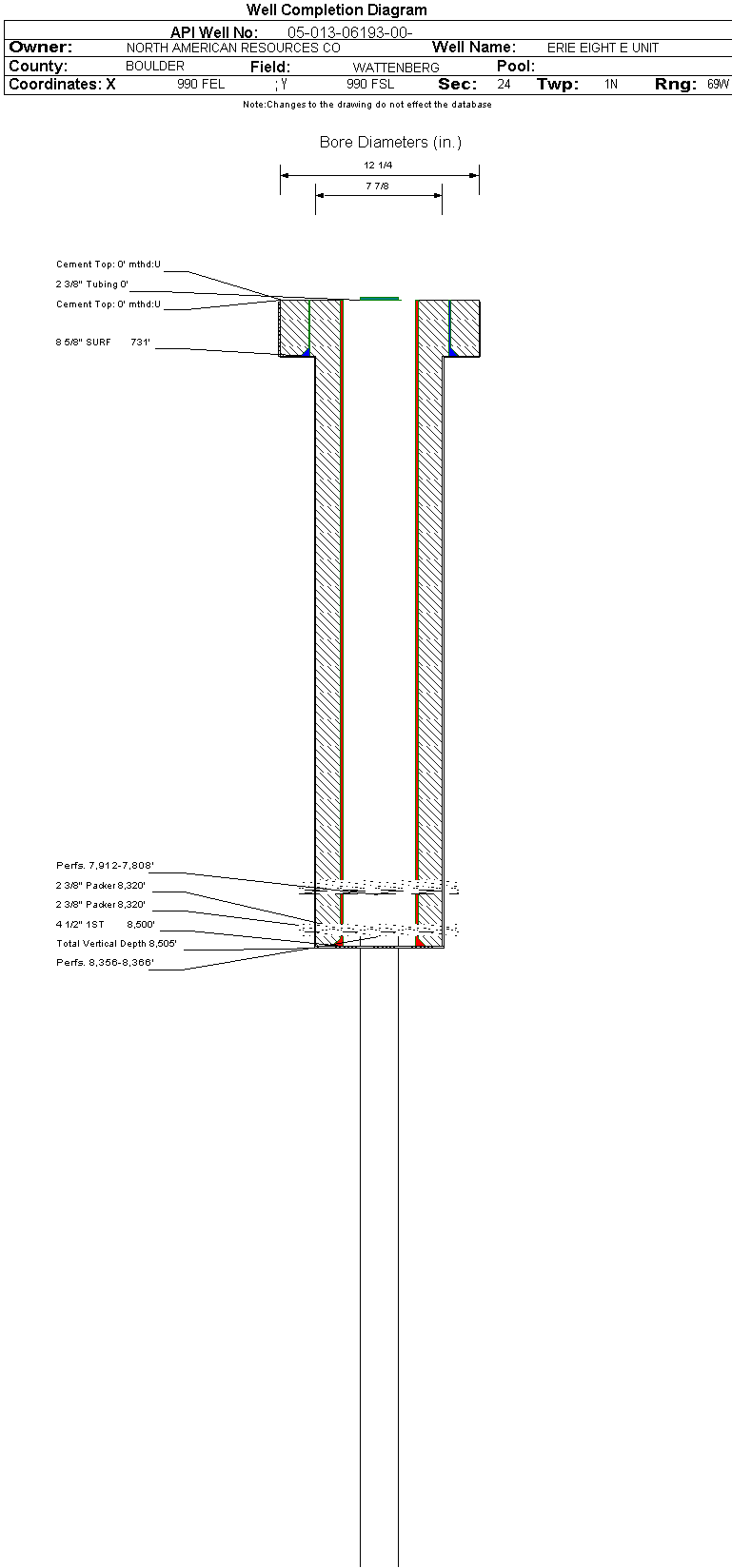

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-013-06193		Well Classification: GW Status: PA - 1/17/2001
Well Name/No:ERIE EIGHT E UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NORTH AMERICAN RESOURCES COMPANY - 63800
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/17/2001
FacilityID:206698LocationID:379777
Municipality/County:ERIE / BOULDER #013Location:SESE 24 1N69W 6
Field:WATTENBERG - #90750Elevation:5110 ft.
Planned Location:990FSL  990 FELLat/Long: 40.032037 / -105.058888Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/17/2001             Measured TD: 8505 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/17/2001
Wellbore Permit
Permit #:19841724 Expiration Date:11/26/1985
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:5/11/1994
Spud Date:2/19/1985Spud Date Is:ACTUAL
Measured TD:8505 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CDL, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 731 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8500 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4232 ft.
SHANNON5198 ft.
NIOBRARA7483 ft.
TIMPAS7889 ft.
CODELL7910 ft.
GREENHORN7970 ft.
J SAND8353 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/17/2001                 Interval Top: 8356 ft.

 Completed Information for Formation J SAND
1st Production Date:6/28/1985Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1994
Treatment Summary:FRAC W/ 325,000# 20/40 M IN 99,000 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:8340 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/28/1985Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
CASING_PRESS 380
GRAVITY_OIL 514
TUBING_PRESS 160
No Perforation Data was found for formation JSND.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/17/2001                 Interval Top: 7808 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1994
Treatment Summary:CODL: FRAC W/ 334,000# 20/40 M IN 89,340 GAL FLUID. NBRR: FRAC W/ 300,000# 20/40 M IN 93,000 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:8340 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/17/2001
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
