COGIS - WELL SCOUT CARD

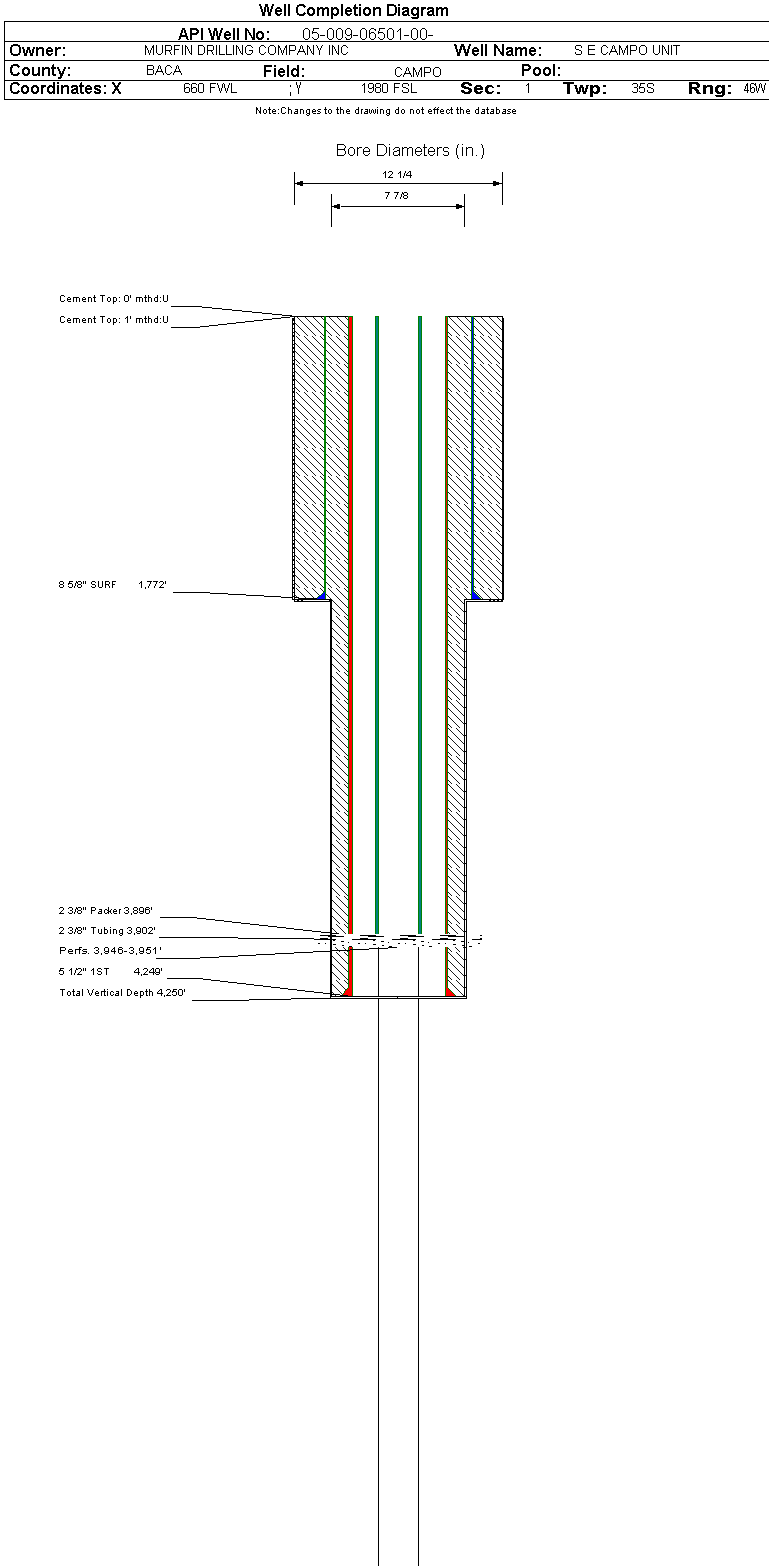

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06501		Well Classification: ERIW Status: TA - 9/10/2024
Well Name/No:S E CAMPO UNIT #607W
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date9/10/2024
FacilityID:206085LocationID:321118
County:BACA #009Location:NWSW 1 35S46W 6
Field:CAMPO - #9850Elevation:4134 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  660 FWLLat/Long: 37.023595 / -102.558759Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.023673 / -102.558737Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 9/10/2024             Measured TD: 4250 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 9/10/2024
Wellbore Permit
Permit #:19920029 Expiration Date:5/8/1992
Proposed Depth/Form:4250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 40, Drill Unit: NWSW
Wellbore Completed
Completion Date:4/1/1992
Spud Date:3/22/1992Spud Date Is:ACTUAL
Measured TD:4250 ft.Measured PB depth:4013 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DUAL INDUCTION, DENSILOG, MICROLOG, BHC ACOUSTILOG
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 1, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1772 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 655, Top: 0 ft., Bottom: 1772 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4249 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 2970 ft., Bottom: 4249 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 2970 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 2970 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
WOLFCAMP2481 ft.
NEVA2861 ft.
TOPEKA3151 ft.
LANSING3351 ft.
DES MOINES4081 ft.

Formation LNSNG                   Formation Classification:  ERIW                   Status:  TA - 9/10/2024                 Interval Top: 3946 ft.    Interval Bottom: 4034 ft.

 Completed Information for Formation LANSING
1st Production Date:6/9/1992Choke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/1/1992
Treatment Summary:SEE SCANNED DOCS #638379, #638366
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 140
Perforation Data:
Interval Top:3946 ft.# Of Holes:44
Interval Bottom:4034 ft.Hole Size:0.5 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY12/12/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/06/2023
Defined Inactive (TA )YDefined Inactive
12/31/2018
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
