COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06494		Well Classification: OW Status: TA - 6/22/2023
Well Name/No:S.E. CAMPO UNIT #1201
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date6/22/2023
FacilityID:206078LocationID:321112
County:BACA #009Location:NWSE 1 35S46W 6
Field:CAMPO - #9850Elevation:4152 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  1980 FELLat/Long: 37.023595 / -102.549698Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.023679 / -102.549693Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 6/22/2023             Measured TD: 4253 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 6/22/2023
Wellbore Permit
Permit #:19910364 Expiration Date:9/11/1991
Proposed Depth/Form:4250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 40, Drill Unit: NWSE
Wellbore Completed
Completion Date:8/7/1991
Spud Date:6/22/1991Spud Date Is:ACTUAL
Measured TD:4253 ft.Measured PB depth:4209 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DUAL INDUCTION LOGS

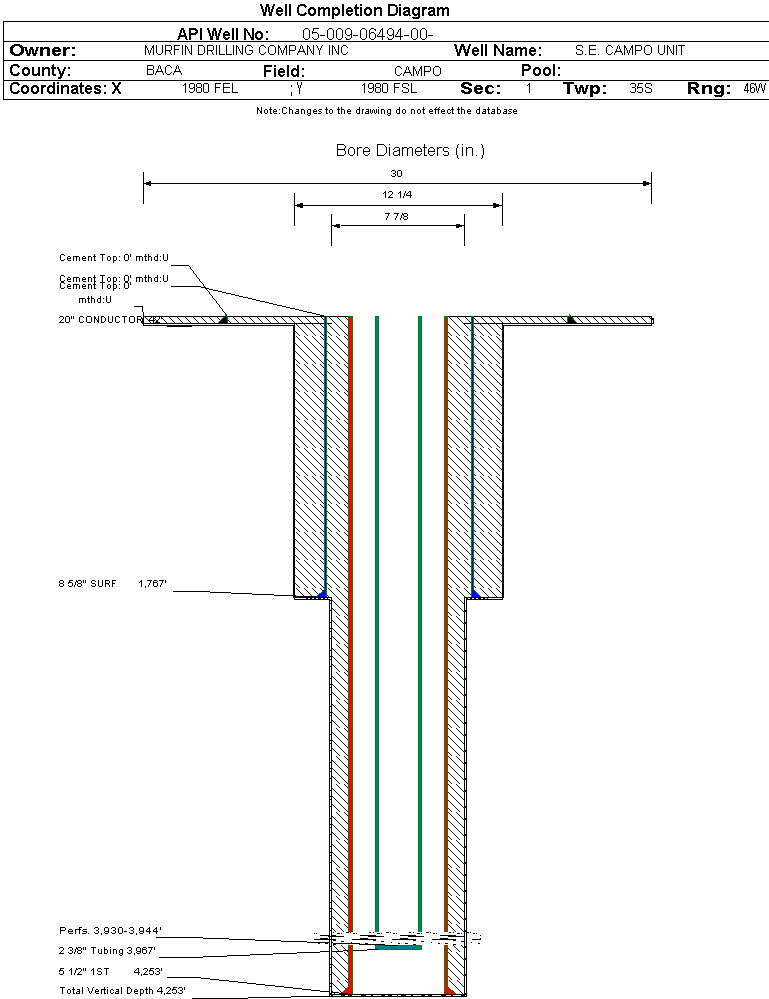

Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 42 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1767 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 765, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4253 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 1035, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
GLORIETA1370 ft.
LANSING3360 ft.
DES MOINES4092 ft.

Formation LNSNG                   Formation Classification:  OW                   Status:  TA - 6/22/2023                 Interval Top: 3930 ft.    Interval Bottom: 3944 ft.

 Completed Information for Formation LANSING
1st Production Date:7/27/1991Choke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/7/1991
Treatment Summary:SEE SCANNED DOC #638432
Tubing Size:2.375 in.Tubing Setting Depth:3930 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 92
CASING_PRESS 280
GRAVITY_OIL 41.4
MCF_GAS 320
Perforation Data:
Interval Top:3930 ft.# Of Holes:4
Interval Bottom:3944 ft.Hole Size:0.5 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/06/2023
Defined Inactive (TA)YLast Production
12/31/2018
Low ProducingYProduction Period
02/2025 - 01/2026

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
