COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06447		Well Classification: DA Status: PA - 1/6/1986
Well Name/No:BALDWIN FARMS #1-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/6/1986
FacilityID:206031LocationID:379285
County:BACA #009Location:NWSE 23 28S44W 6
Field:WILDCAT - #99999Elevation:4043 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:1980FSL  1980 FELLat/Long: 37.591616 / -102.335005Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: AB - 1/6/1986             Measured TD: 6053 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        AB - 1/6/1986
Wellbore Permit
Permit #:19851374 Expiration Date:2/6/1986
Proposed Depth/Form:6100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: KEYES , Formation: KEYES , Order: 0 , Unit Acreage: 320, Drill Unit: NWSE
Wellbore Completed
Completion Date:1/4/1986
Spud Date:12/16/1985Spud Date Is:ACTUAL
Measured TD:6053 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:MLL/DLL/GR; BHCAL/GR/CAL; SL/CDL/CN/CAL

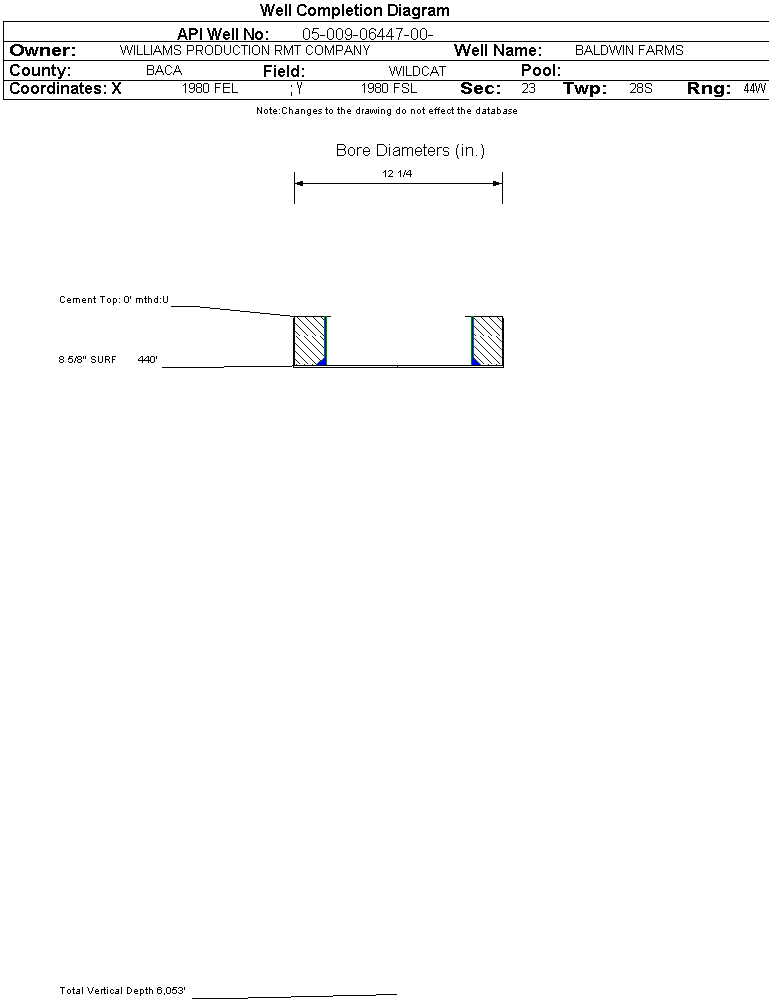

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 440 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
STONE CORRAL1696 ft.
NEVA2734 ft.
LANSING3580 ft.
CHEROKEE K4436 ft.
MORROW5190 ft.
KEYES5510 ft.
MISSISSIPPIAN5691 ft.
ST GENEVIEVE5728 ft.

Formation KEYES                   Formation Classification:  GW                   Status:  AB - 1/6/1986                  Interval Top: 5510 ft.

 Completed Information for Formation KEYES
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:KEYESCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation KEYES.
No Perforation Data was found for formation KEYES.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/06/1986
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
