COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06388		Well Classification: ERIW Status: TA - 7/6/2023
Well Name/No:S E CAMPO UNIT #201W
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date7/6/2023
FacilityID:205973LocationID:321080
County:BACA #009Location:SESW 35 34S46W 6
Field:CAMPO - #9850Elevation:4231 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:660FSL  1980 FWLLat/Long: 37.034545 / -102.572319Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.034551 / -102.572323Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

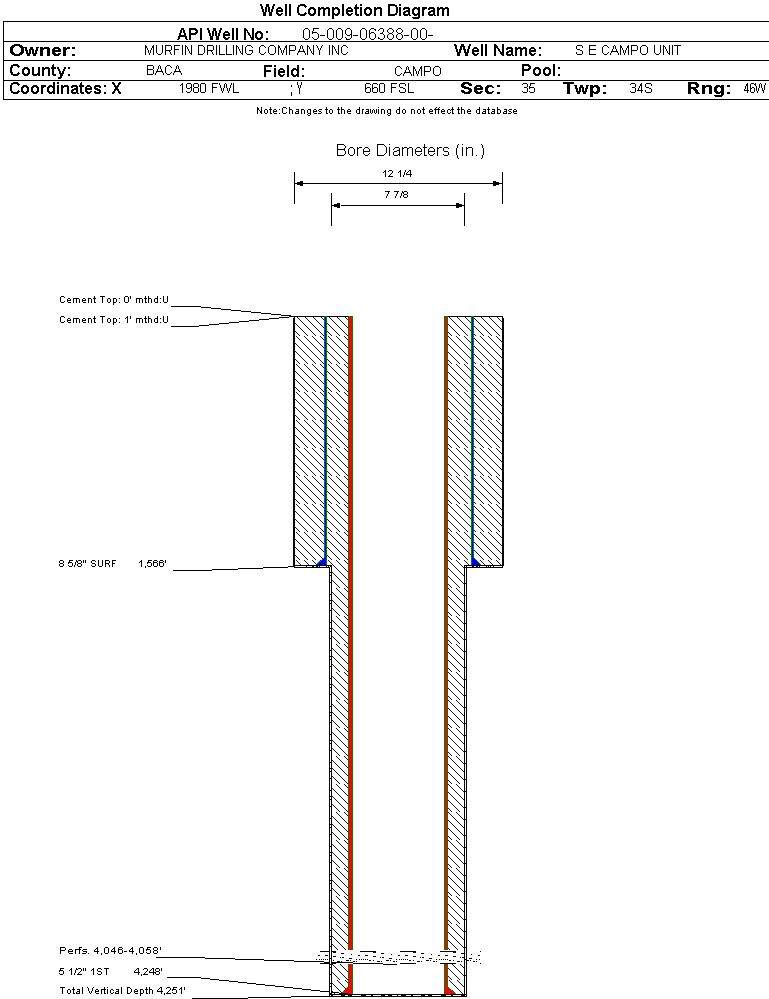

Wellbore #00             Wellbore Classification: ERIW             Status: TA - 7/6/2023             Measured TD: 4251 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        TA - 7/6/2023
Wellbore Permit
Permit #:19831264 Expiration Date:2/11/1984
Proposed Depth/Form:4250 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:12/17/1983
Spud Date:10/17/1983Spud Date Is:ACTUAL
Measured TD:4251 ft.Measured PB depth:4100 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:COMP NEUTRON LD, GR, CCL, CBL
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 20 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 3, Top: 0 ft., Bottom: 20 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1566 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 0 ft., Bottom: 1566 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4248 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 2050 ft., Bottom: 4248 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1825 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 1825 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
NEVA3008 ft.
LANSING3500 ft.
DES MOINES4214 ft.

Formation LNSNG                   Formation Classification:  ERIW                   Status:  TA - 7/6/2023                  Interval Top: 4046 ft.    Interval Bottom: 4058 ft.

 Completed Information for Formation LANSING
1st Production Date:12/12/1983Choke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/1983
Treatment Summary:SEE SCANNED DOC #636560
Tubing Size:2.375 in.Tubing Setting Depth:3994 ft.
Tubing Packer Depth:3996 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation LNSNG.
Perforation Data:
Interval Top:4046 ft.# Of Holes:48
Interval Bottom:4058 ft.Hole Size:0.5 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY09/10/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/05/2023
Defined Inactive (TA )YDefined Inactive
12/31/2018
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
