COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06383		Well Classification: OW Status: TA - 7/6/2023
Well Name/No:SE CAMPO UNIT #405
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date7/6/2023
FacilityID:205968LocationID:321076
County:BACA #009Location:NENE 2 35S46W 6
Field:CAMPO - #9850Elevation:4201 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:660FNL  660 FELLat/Long: 37.030915 / -102.563249Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.030930 / -102.563279Lat/Long Source: Field Measured

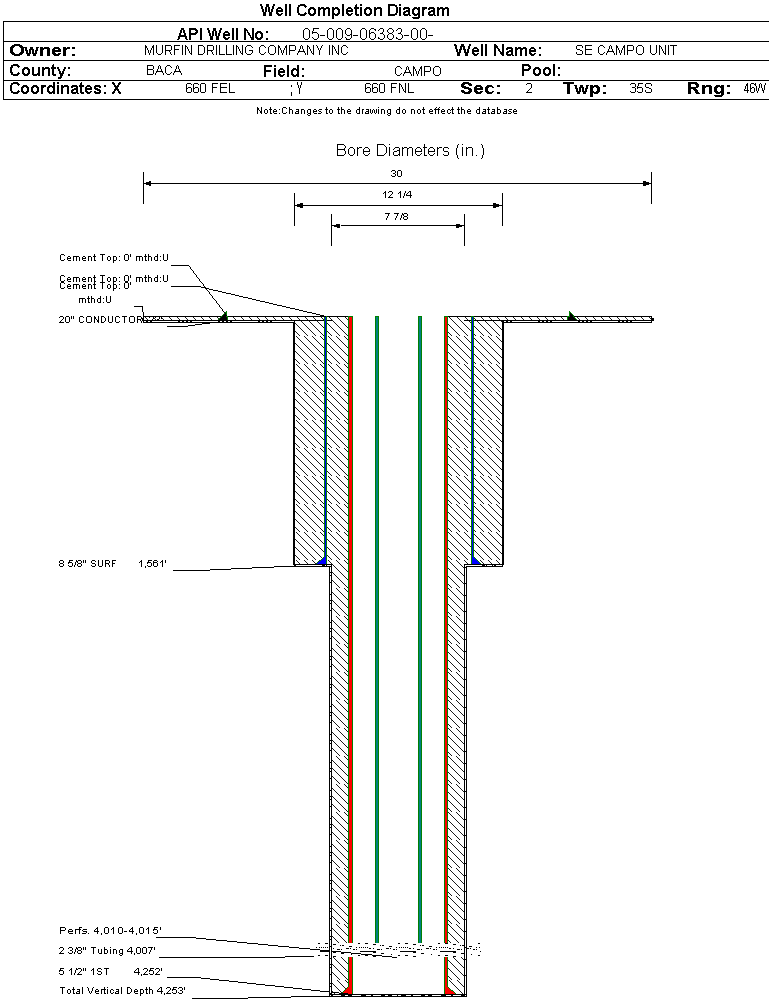

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 7/6/2023             Measured TD: 4253 ft.    Vertical TD: 4253 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 7/6/2023
Wellbore Permit
Permit #:19831145 Expiration Date:1/21/1984
Proposed Depth/Form:4500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:11/23/1983
Spud Date:10/4/1983Spud Date Is:ACTUAL
Measured TD:4253 ft.Measured PB depth:4210 ft.
True Vertical TD:4253 ft.True Vertical PB depth:
Log Types:di-sfl w/sp & gr, cnl-ldc w/gr
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 23 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 23 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1561 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 0 ft., Bottom: 1561 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4252 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 3308 ft., Bottom: 4252 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NEVA2955 ft.
LANSING3445 ft.
DES MOINES4174 ft.

Formation LNSNG                   Formation Classification:  OW                   Status:  TA - 7/6/2023                  Interval Top: 4010 ft.    Interval Bottom: 4015 ft.

 Completed Information for Formation LANSING
1st Production Date:11/12/1983Choke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/23/1983
Treatment Summary:500 GALS DIESEL OIL BRKDN
Tubing Size:2.375 in.Tubing Setting Depth:4007 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 148.74
MCF_GAS 20.5
Perforation Data:
Interval Top:4010 ft.# Of Holes:20
Interval Bottom:4015 ft.Hole Size:2.375 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY09/17/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/05/2023
Defined Inactive (TA )YDefined Inactive
12/31/2018
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
