COGIS - WELL SCOUT CARD

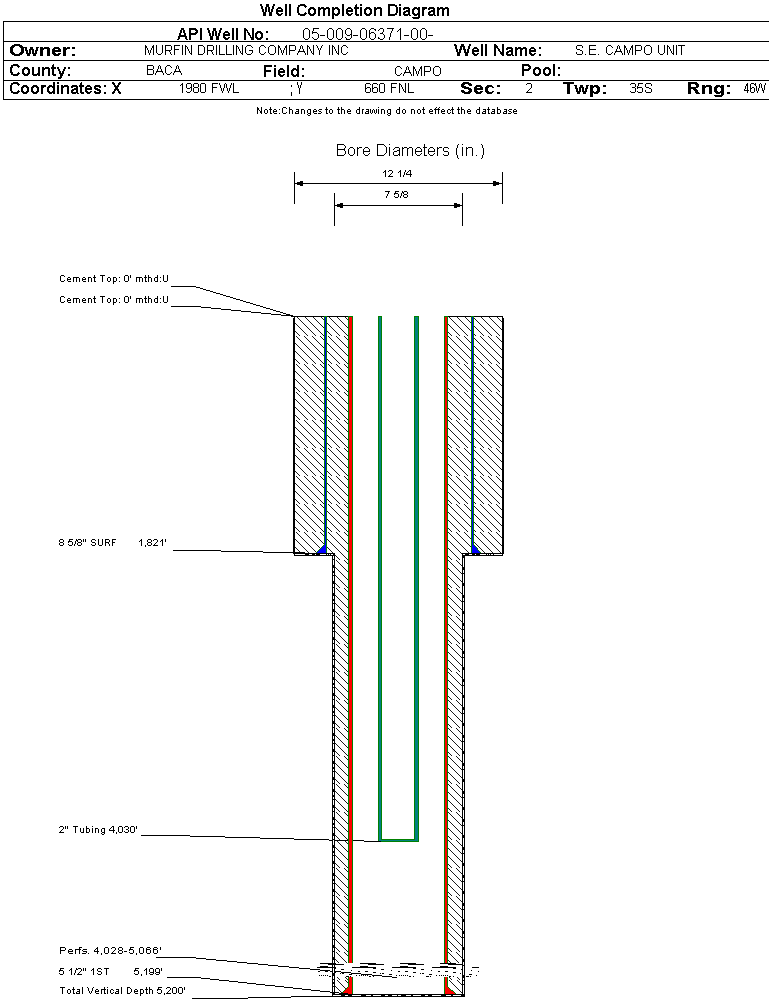

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-009-06371		Well Classification: OW Status: TA - 7/6/2023
Well Name/No:S.E. CAMPO UNIT #401
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MURFIN DRILLING COMPANY INC - 61650
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:8100
Facility Status:TAStatus Date7/6/2023
FacilityID:205956LocationID:321072
County:BACA #009Location:NENW 2 35S46W 6
Field:CAMPO - #9850Elevation:4229 ft.
Basin:HUGOTON EMBAYMENT
Planned Location:660FNL  1980 FWLLat/Long: 37.030915 / -102.572309Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.030920 / -102.572319Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 7/6/2023             Measured TD: 5200 ft.    Vertical TD: 5200 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 7/6/2023
Wellbore Permit
Permit #:19821746 Expiration Date:3/3/1983
Proposed Depth/Form:5200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: 0 , Unit Acreage: 640, Drill Unit:
Wellbore Completed
Completion Date:3/9/1983
Spud Date:11/17/1982Spud Date Is:ACTUAL
Measured TD:5200 ft.Measured PB depth:4083 ft.
True Vertical TD:5200 ft.True Vertical PB depth:
Log Types:cnl-fdc w/gr and caliper, borehole comp, sonic electric
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: UNK , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1821 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 0 ft., Bottom: 900 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.625 in., Size: 5.5 in., Top: 0 ft., Depth: 5199 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 4358 ft., Bottom: 5199 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: 3604 ft., Depth: 4322 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3604 ft., Bottom: 4322 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NEVA2972 ft.
LANSING3460 ft.
DES MOINES4190 ft.
MORROW4650 ft.
MISSISSIPPIAN5072 ft.

Formation LNSNG                   Formation Classification:  OW                   Status:  TA - 7/6/2023                  Interval Top: 4028 ft.    Interval Bottom: 5066 ft.

 Completed Information for Formation LANSING
1st Production Date:3/9/1983Choke Size:
Formation Name:LANSINGCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/1983
Treatment Summary:SEE SCANNED DOC #638857
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 43
CASING_PRESS 54
GRAVITY_OIL 42.7
MCF_GAS 18.2
TUBING_PRESS 33
Perforation Data:
Interval Top:4028 ft.# Of Holes:232
Interval Bottom:5066 ft.Hole Size:
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY06/05/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveYNoticed Date
06/06/2023
Defined Inactive (TA )YDefined Inactive
12/31/2018
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
