Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 18073 ft. Vertical TD: 7648 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/4/2020 | | Proposed Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 1200 FSL 912 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 1176 FSL 332 FEL | | Proposed Depth/Form: | 18063 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-1023 , Unit Acreage: 1280, Drill Unit: 19&20:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18063 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2270, Top: 2060 ft., Bottom: 18063 ft. |
| | |

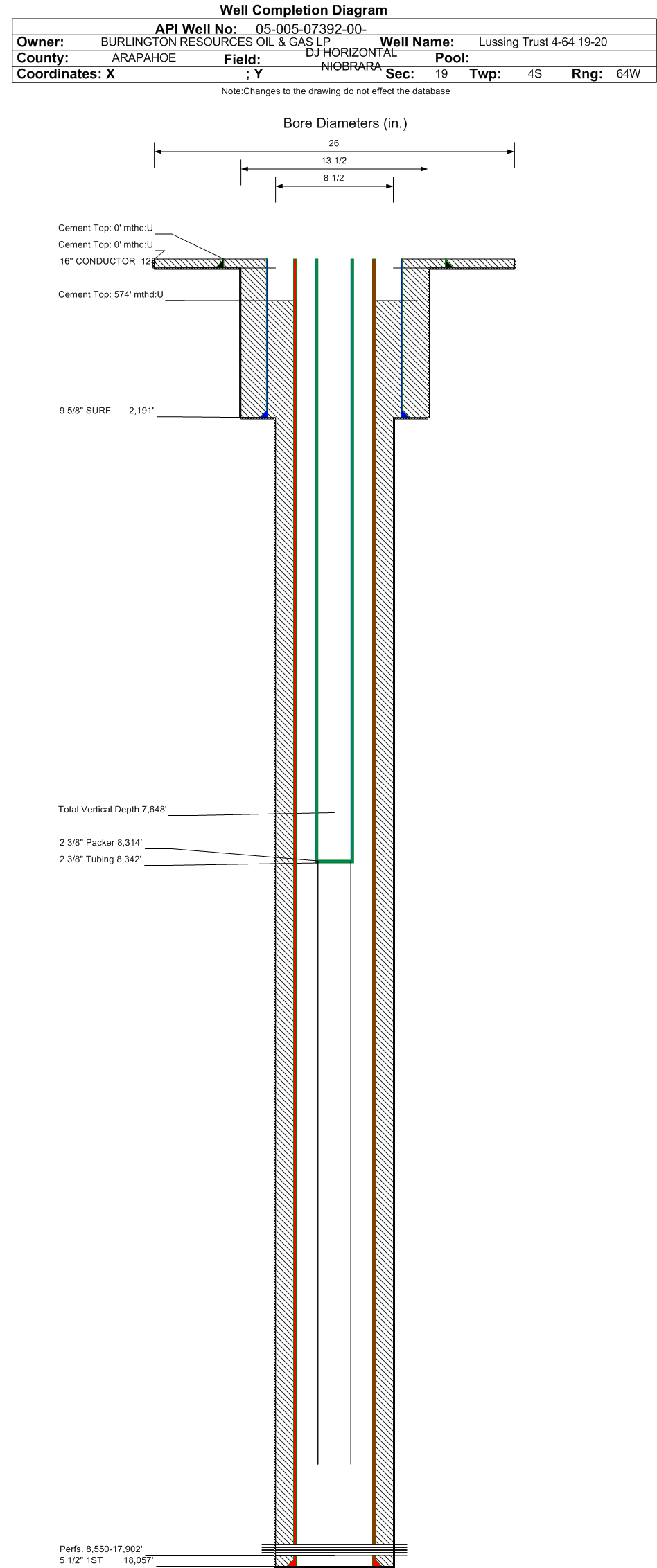

| Wellbore Completed | | Completion Date: | 2/3/2019 | | Spud Date: | 1/5/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 18073 ft. | Measured PB depth: | 17978 ft. | | True Vertical TD: | 7648 ft. | True Vertical PB depth: | 7650 ft. | | Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 1200 FSL 912 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 1176 FSL 332 FEL | | Log Types: | MWD/LWD; Mud Log; CBL; (Resistivity in API 005-07390) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 125 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 125 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2191 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2191 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18057 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 2350, Top: 574 ft., Bottom: 18073 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1714 ft. | | | | | PIERRE | 1860 ft. | | | | | SUSSEX | 7235 ft. | | | | | SHANNON | 7545 ft. | | | | | SHARON SPRINGS | 7750 ft. | | | | | NIOBRARA | 7852 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 8550 ft. Interval Bottom: 17902 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/2/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/29/2019 | Treatment End Date: | 7/12/2019 | | Treatment Summary: | 785 bbls of Fresh Water
316,220 bbls of FR Water
9,490 bbls of Wireline Pump In
429 bbls of 15% HCl Acid
2,357 bbls of 7.5% HCl Acid
1,324,500 pounds of 100 Mesh
11,801,000 pounds of 40/70 White | | Total fluid used in treatment (bbls): | 329281 | Max pressure during treatment (psi): | 9049 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 38 | | Total acid used in treatment (bbls): | 2786 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 12445 | | Fresh water used in treatment (bbls): | 326495 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 13125499 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8342 ft. | | Tubing Packer Depth: | 8334 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/23/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1582 | | BBLS_OIL | 718 | | CALC_BBLS_H2O | 1582 | | CALC_BBLS_OIL | 718 | | CALC_GOR | 1547 | | CALC_MCF_GAS | 1111 | | CASING_PRESS | 25 | | GRAVITY_OIL | 38 | | MCF_GAS | 1111 | | TUBING_PRESS | 1004 |
| | Perforation Data: | | Interval Top: | 8550 ft. | # Of Holes: | 1239 | | Interval Bottom: | 17902 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5387 |
| Total Gas Produced (MCF) | 5463 |
| GOR | 1014 |
| GOR Determination | BOE |
| Average BOE per Day | 17.276 |
| Average MCFE per Day | 100.169 |
| Federal Financial Assurance | i | |
|
|
