Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 18020 ft. Vertical TD: 7636 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/4/2020 | | Proposed Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 2091 FSL 846 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 2105 FSL 338 FEL | | Proposed Depth/Form: | 18023 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-1023 , Unit Acreage: 1280, Drill Unit: 19&20:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18023 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2250, Top: 2060 ft., Bottom: 18023 ft. |
| | |

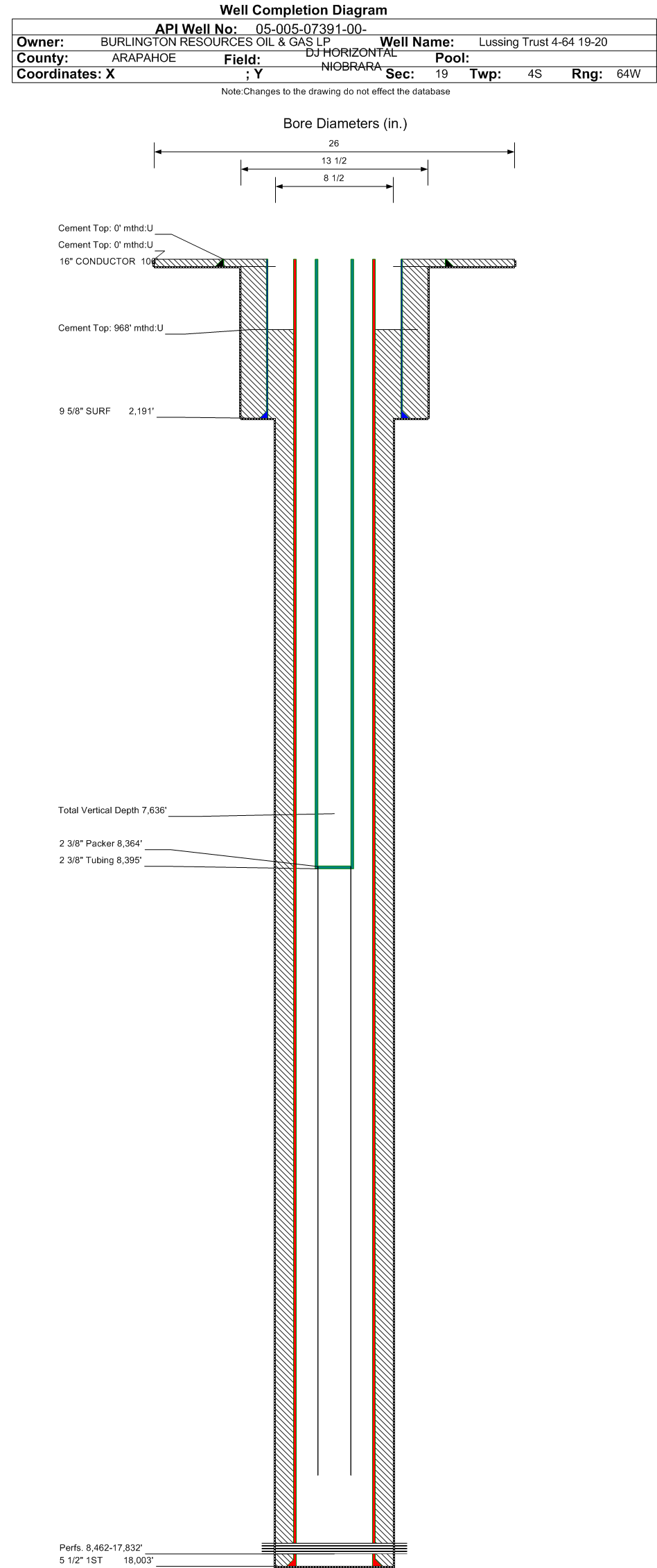

| Wellbore Completed | | Completion Date: | 1/21/2019 | | Spud Date: | 1/7/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 18020 ft. | Measured PB depth: | 17912 ft. | | True Vertical TD: | 7636 ft. | True Vertical PB depth: | 7637 ft. | | Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 2091 FSL 846 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 2105 FSL 338 FEL | | Log Types: | MWD/LWD; Mud; CBL; (Resistivity in API 005-07390) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2191 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2208 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18003 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 2350, Top: 968 ft., Bottom: 18020 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1714 ft. | | | | | PIERRE | 1860 ft. | | | | | SUSSEX | 7210 ft. | | | | | SHANNON | 7527 ft. | | | | | SHARON SPRINGS | 7721 ft. | | | | | NIOBRARA | 7822 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 8462 ft. Interval Bottom: 17832 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/10/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/16/2019 | Treatment End Date: | 6/29/2019 | | Treatment Summary: | 2,234 bbls of Fresh Water
10,983 bbls of Wireline Pump In
302,993 bbls of FR Water
1,317 bbls of 15% HCl Acid
1,643 bbls of 7.5% HCl Acid
1,324,500 pounds of 100 Mesh
11,836,000 pounds of 40/70 White | | Total fluid used in treatment (bbls): | 319170 | Max pressure during treatment (psi): | 9051 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 38 | | Total acid used in treatment (bbls): | 2960 | Min frac gradient (psi/ft): | 0.84 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 18876 | | Fresh water used in treatment (bbls): | 316210 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 13160500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8395 ft. | | Tubing Packer Depth: | 8384 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/27/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1010 | | BBLS_OIL | 782 | | CALC_BBLS_H2O | 1010 | | CALC_BBLS_OIL | 782 | | CALC_GOR | 1099 | | CALC_MCF_GAS | 860 | | GRAVITY_OIL | 38 | | MCF_GAS | 860 | | TUBING_PRESS | 895 |
| | Perforation Data: | | Interval Top: | 8462 ft. | # Of Holes: | 1239 | | Interval Bottom: | 17832 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3048 |
| Total Gas Produced (MCF) | 3090 |
| GOR | 1013 |
| GOR Determination | BOE |
| Average BOE per Day | 9.796 |
| Average MCFE per Day | 56.809 |
| Federal Financial Assurance | i | |
|
|
