Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 18225 ft. Vertical TD: 7673 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/4/2020 | | Proposed Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 686 FSL 845 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 662 FSL 332 FEL | | Proposed Depth/Form: | 18208 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-1023 , Unit Acreage: 1280, Drill Unit: 19&20:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18208 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2280, Top: 2060 ft., Bottom: 18208 ft. |
| | |

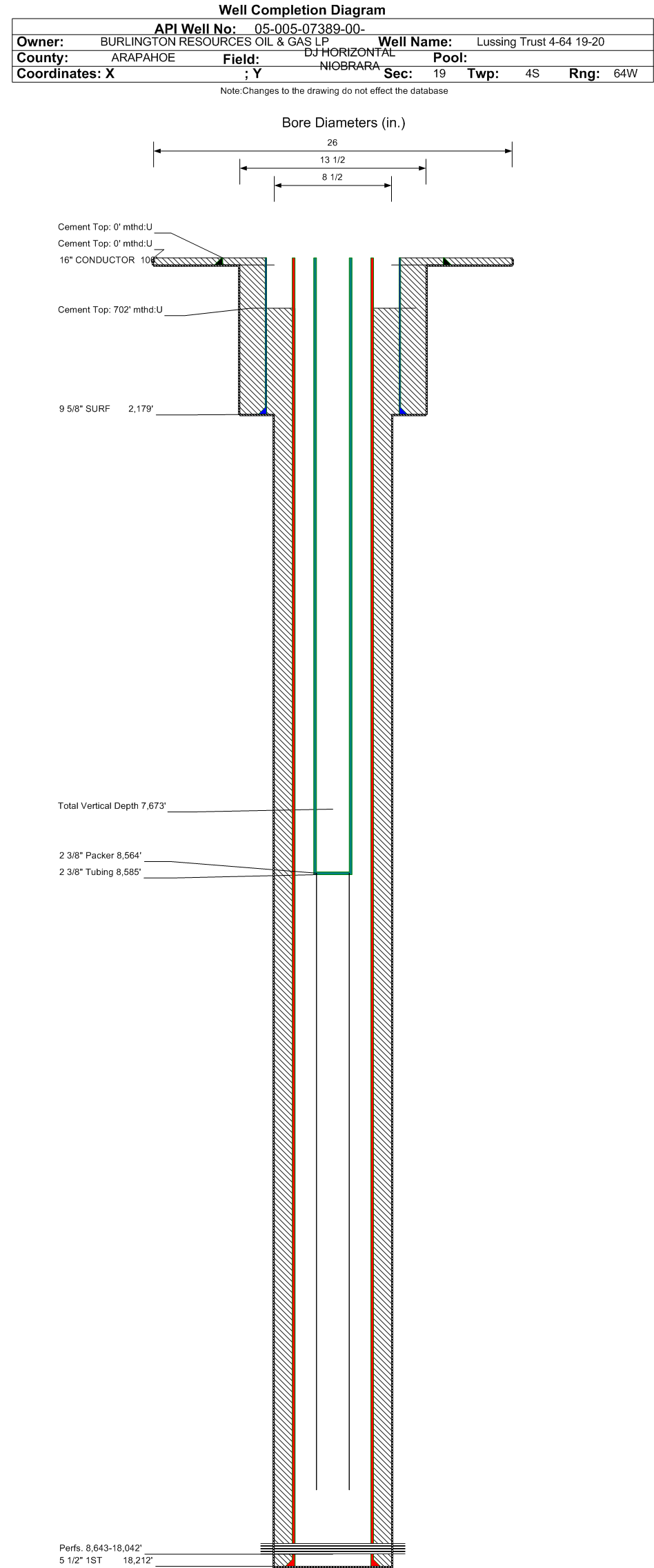

| Wellbore Completed | | Completion Date: | 4/2/2019 | | Spud Date: | 3/25/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 18225 ft. | Measured PB depth: | 18123 ft. | | True Vertical TD: | 7673 ft. | True Vertical PB depth: | 7674 ft. | | Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 686 FSL 845 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 662 FSL 332 FEL | | Log Types: | MWD/LWD; Mud Log; CBL; (Resistivity in API 005-07390) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2179 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2190 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18212 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2393, Top: 702 ft., Bottom: 18225 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1714 ft. | | | | | PIERRE | 1860 ft. | | | | | SUSSEX | 7262 ft. | | | | | SHANNON | 7585 ft. | | | | | SHARON SPRINGS | 7778 ft. | | | | | NIOBRARA | 7870 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 8643 ft. Interval Bottom: 18042 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/22/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/24/2019 | | Treatment Summary: | 693 bbls of Fresh Water
9,473 bbls of Wireline Pump In
274,884 bbls of FR Water
667 bbls of 15% HCl Acid
1,595 bbls of 7.5% HCl
1,110,850 pounds of 100 Mesh
10,489,020 pounds of 40/70 White | | Total fluid used in treatment (bbls): | 287312 | Max pressure during treatment (psi): | 9023 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 32 | | Total acid used in treatment (bbls): | 2262 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 285050 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 11599870 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8585 ft. | | Tubing Packer Depth: | 8584 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/17/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 611 | | BBLS_OIL | 777 | | CALC_BBLS_H2O | 611 | | CALC_BBLS_OIL | 777 | | CALC_GOR | 930 | | CALC_MCF_GAS | 723 | | CASING_PRESS | 76 | | GRAVITY_OIL | 42 | | MCF_GAS | 723 | | TUBING_PRESS | 586 |
| | Perforation Data: | | Interval Top: | 8643 ft. | # Of Holes: | 1039 | | Interval Bottom: | 18042 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4736 |
| Total Gas Produced (MCF) | 697 |
| GOR | 147 |
| GOR Determination | BOE |
| Average BOE per Day | 13.293 |
| Average MCFE per Day | 77.098 |
