Wellbore #00 Wellbore Classification: OW Status: PR - 7/1/2025 Measured TD: 17180 ft. Vertical TD: 7596 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/4/2020 | | Proposed Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 508 FSL 770 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 485 FSL 1199 FEL | | Proposed Depth/Form: | 18170 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-1023 , Unit Acreage: 1280, Drill Unit: 19&20:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18170 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2270, Top: 2060 ft., Bottom: 18170 ft. |
| | |

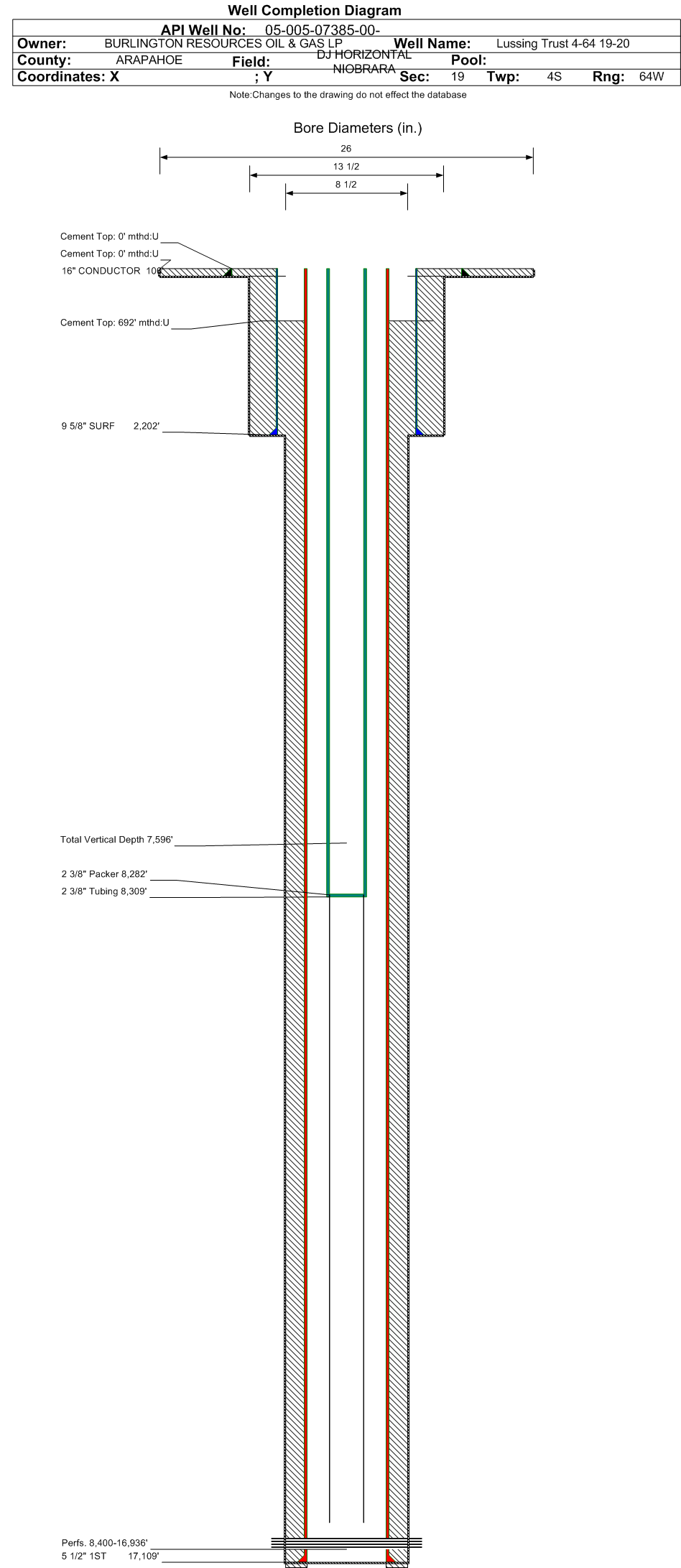

| Wellbore Completed | | Completion Date: | 4/8/2019 | | Spud Date: | 3/26/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 17180 ft. | Measured PB depth: | 17015 ft. | | True Vertical TD: | 7596 ft. | True Vertical PB depth: | 7596 ft. | | Top PZ Location: | Sec:19 Twp: 4S 64W | Footage: 508 FSL 770 FWL | | Bottom Hole Location: | Sec:20 Twp: 4S 64W | Footage: 485 FSL 1199 FEL | | Log Types: | MWD/LWD; Mud Log; CBL; (Resistivity in API 005-07390) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2202 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2212 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17109 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2235, Top: 692 ft., Bottom: 17180 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1714 ft. | | | | | PIERRE | 1855 ft. | | | | | SUSSEX | 7313 ft. | | | | | SHANNON | 7649 ft. | | | | | SHARON SPRINGS | 7911 ft. | | | | | NIOBRARA | 8066 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 7/1/2025 Interval Top: 8400 ft. Interval Bottom: 16936 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/1/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/15/2019 | Treatment End Date: | 7/23/2019 | | Treatment Summary: | 381 bbls of Fresh Water
6,514 bbls of Wireline Pump In
230,038 bbls of FR Water
357 bbls of 15% HCl Acid
1,643 bbls of 7.5% HCl Acid
915,850 pounds of 100 Mesh
8,558,000 pounds of 40/70 White
| | Total fluid used in treatment (bbls): | 238933 | Max pressure during treatment (psi): | 8950 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 2000 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 236933 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9473850 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8309 ft. | | Tubing Packer Depth: | 8302 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/17/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 493 | | BBLS_OIL | 526 | | CALC_BBLS_H2O | 493 | | CALC_BBLS_OIL | 526 | | CALC_GOR | 1150 | | CALC_MCF_GAS | 605 | | CASING_PRESS | 5 | | GRAVITY_OIL | 42 | | MCF_GAS | 605 | | TUBING_PRESS | 666 |
| | Perforation Data: | | Interval Top: | 8400 ft. | # Of Holes: | 934 | | Interval Bottom: | 16936 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
07/2024 - 06/2025 |
| Total Oil Produced (Barrels) | 217 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | BOE |
| Average BOE per Day | 0.584 |
| Average MCFE per Day | 3.390 |
| Federal Financial Assurance | i | |
|
|
