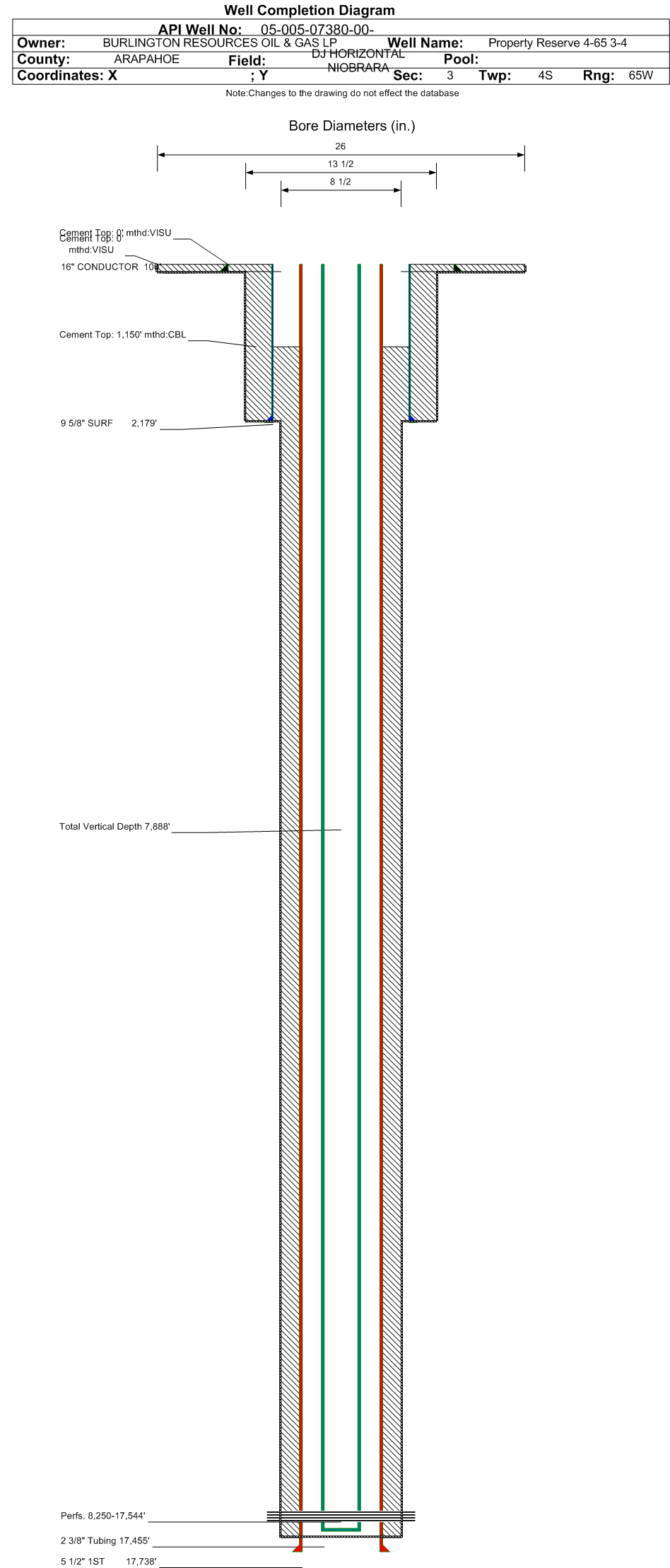

Wellbore #00 Wellbore Classification: OW Status: PR - 2/1/2025 Measured TD: 17762 ft. Vertical TD: 7888 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 8/11/2020 | | Proposed Top PZ Location: | Sec:3 Twp: 4S 65W | Footage: 2145 FNL 724 FEL | | Bottom Hole Location: | Sec:4 Twp: 4S 65W | Footage: 2187 FNL 357 FWL | | Proposed Depth/Form: | 17799 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-906 , Unit Acreage: 1280, Drill Unit: Sec 3 and 4 All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2142 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 590, Top: 0 ft., Bottom: 2142 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17799 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2230, Top: 2142 ft., Bottom: 17799 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/29/2018 | | Spud Date: | 11/5/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 17762 ft. | Measured PB depth: | 17655 ft. | | True Vertical TD: | 7888 ft. | True Vertical PB depth: | 7887 ft. | | Top PZ Location: | Sec:3 Twp: 4S 65W | Footage: 2145 FNL 724 FEL | | Bottom Hole Location: | Sec:4 Twp: 4S 65W | Footage: 2187 FNL 357 FWL | | Log Types: | LWD/MWD; Mud Log; CBL; (Resistivity in API 005-07379) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2179 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 835, Top: 0 ft., Bottom: 2190 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17738 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 2340, Top: 1150 ft., Bottom: 17762 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1717 ft. | | | | | PIERRE | 1948 ft. | | | | | SUSSEX | 7223 ft. | | | | | SHANNON | 7495 ft. | | | | | SHARON SPRINGS | 7696 ft. | | | | | NIOBRARA | 7776 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 2/1/2025 Interval Top: 8250 ft. Interval Bottom: 17544 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/5/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/20/2019 | Treatment End Date: | 5/29/2019 | | Treatment Summary: | 1,348 bbls of 15% HCl Acid
287,036 bbls of FR Water
1,357 bbls of 7.5% HCl Acid
1,293,627 pounds of 100 Mesh
11,701,339 pounds of 40/70 White | | Total fluid used in treatment (bbls): | 289741 | Max pressure during treatment (psi): | 9153 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 38 | | Total acid used in treatment (bbls): | 2705 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 22454 | | Fresh water used in treatment (bbls): | 287036 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 12994766 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 17455 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/26/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1432 | | BBLS_OIL | 1297 | | CALC_BBLS_H2O | 1432 | | CALC_BBLS_OIL | 1297 | | CALC_GOR | 1086 | | CALC_MCF_GAS | 1409 | | CASING_PRESS | 1207 | | GRAVITY_OIL | 43 | | MCF_GAS | 1409 | | TUBING_PRESS | 987 |
| | Perforation Data: | | Interval Top: | 8250 ft. | # Of Holes: | 1236 | | Interval Bottom: | 17544 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 13370 |
| Total Gas Produced (MCF) | 29702 |
| GOR | 2221 |
| GOR Determination | BOE |
| Average BOE per Day | 50.532 |
| Average MCFE per Day | 293.084 |
| Federal Financial Assurance | i | |
|
|
