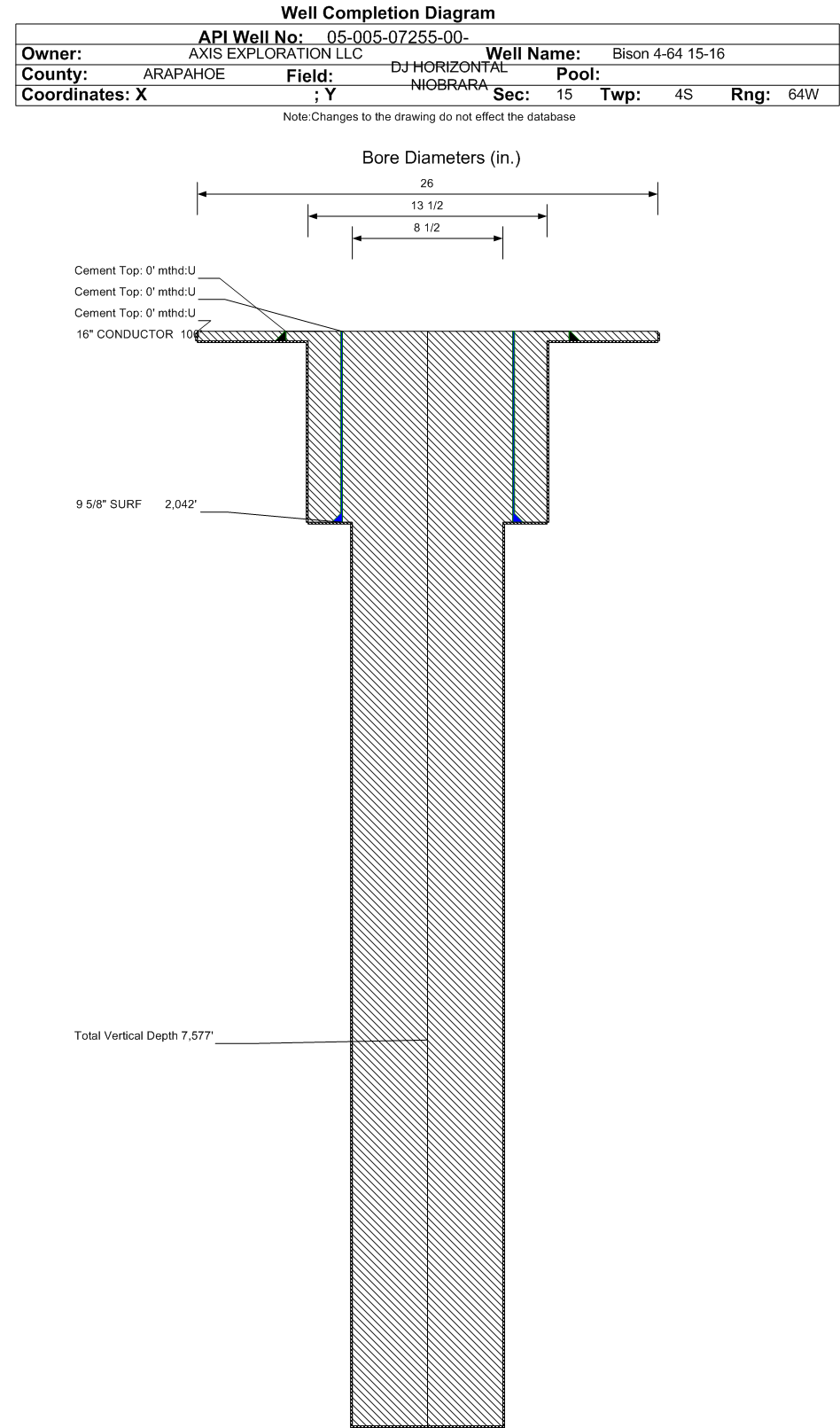

Wellbore #00 Wellbore Classification: OW Status: AB - 2/1/2017 Measured TD: 11703 ft. Vertical TD: 7577 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 2/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/3/2018 | | Proposed Top PZ Location: | Sec:16 Twp: 4S 64W | Footage: 691 FNL 1670 FEL | | Bottom Hole Location: | Sec:16 Twp: 4S 64W | Footage: 691 FNL 1670 FEL | | Proposed Depth/Form: | 15026 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-738 , Unit Acreage: 960, Drill Unit: 15-W/2, 16-ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 1/4 , Citings Type: PLANNED | | Cement: | Sacks: 10, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 2000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 15026 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1710, Top: 1900 ft., Bottom: 15026 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/29/2016 | | Spud Date: | 10/28/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 11703 ft. | Measured PB depth: | 2042 ft. | | True Vertical TD: | 7577 ft. | True Vertical PB depth: | 2042 ft. | | Bottom Hole Location: | Sec:16 Twp: 4S 64W | Footage: 691 FNL 1670 FEL | | Log Types: | DEN, NEU, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2042 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 2042 ft., Determination Method: VISU | | Casing: | String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 2042 ft., Depth: 11703 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1632 ft. | | N | N | | PIERRE | 1802 ft. | | N | N | | SHARON SPRINGS | 7342 ft. | | N | N | | NIOBRARA | 7415 ft. | | N | N | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: PR - 4/1/2024 Measured TD: 15130 ft. Vertical TD: 7546 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW PR - 4/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/3/2018 | | Proposed Top PZ Location: | Sec:15 Twp: 4S 64W | Footage: 650 FNL 2164 FWL | | Bottom Hole Location: | Sec:16 Twp: 4S 64W | Footage: 638 FNL 242 FWL | | Proposed Depth/Form: | 15026 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-738 , Unit Acreage: 960, Drill Unit: 15-W/2, 16-ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 1/4 , Citings Type: PLANNED | | Cement: | Sacks: 10, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2042 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 2042 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15026 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 1710, Top: 1900 ft., Bottom: 15026 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/8/2016 | | Spud Date: | 10/28/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 15130 ft. | Measured PB depth: | 15125 ft. | | True Vertical TD: | 7546 ft. | True Vertical PB depth: | 7546 ft. | | Top PZ Location: | Sec:15 Twp: 4S 64W | Footage: 642 FNL 2300 FWL | | Bottom Hole Location: | Sec:16 Twp: 4S 64W | Footage: 626 FNL 189 FWL | | Log Types: | MWD, MUD, CBL, DEN, NEU | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 0 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2042 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 2042 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15125 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2005, Top: 660 ft., Bottom: 15130 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 1632 ft. | | N | N | | PIERRE | 1802 ft. | | N | N | | SHARON SPRINGS | 7342 ft. | | N | N | | NIOBRARA | 7415 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 4/1/2024 Interval Top: 7717 ft. Interval Bottom: 14966 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/23/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/16/2016 | Treatment End Date: | 12/29/2016 | | Treatment Summary: | 49 stage plug and perf;
597683 total bbls of slickwater and 15% HCl Acid was pumped;
21056252 lbs of 40/70 proppant pumped; | | Total fluid used in treatment (bbls): | 598850 | Max pressure during treatment (psi): | 8680 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 49 | | Total acid used in treatment (bbls): | 1167 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 28796 | | Fresh water used in treatment (bbls): | 597683 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 21056252 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7876 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/23/2017 | Test Method: | | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1576 | | BBLS_OIL | 103 | | BTU_GAS | 1507 | | CALC_BBLS_H2O | 1576 | | CALC_BBLS_OIL | 103 | | CALC_GOR | 2621 | | CALC_MCF_GAS | 270 | | CASING_PRESS | 2 | | GRAVITY_OIL | 40 | | MCF_GAS | 270 | | TUBING_PRESS | 870 |
| | Perforation Data: | | Interval Top: | 7717 ft. | # Of Holes: | 1157 | | Interval Bottom: | 14966 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20196 |
| Total Gas Produced (MCF) | 44684 |
| GOR | 2212 |
| GOR Determination | BOE |
| Average BOE per Day | 73.464 |
| Average MCFE per Day | 426.113 |
| Federal Financial Assurance | i | |
|
|
