Wellbore #00 Wellbore Classification: OW Status: PR - 5/1/2025 Measured TD: 17305 ft. Vertical TD: 7958 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/26/2016 | | Proposed Top PZ Location: | Sec:10 Twp: 4S 65W | Footage: 663 FNL 1262 FEL | | Bottom Hole Location: | Sec:9 Twp: 4S 65W | Footage: 676 FNL 488 FWL | | Proposed Depth/Form: | 17333 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-448 , Unit Acreage: 1280, Drill Unit: S.9&10:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 39.7 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2199 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 690, Top: 0 ft., Bottom: 2199 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17333 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 2170, Top: 2099 ft., Bottom: 17333 ft. |
| | |

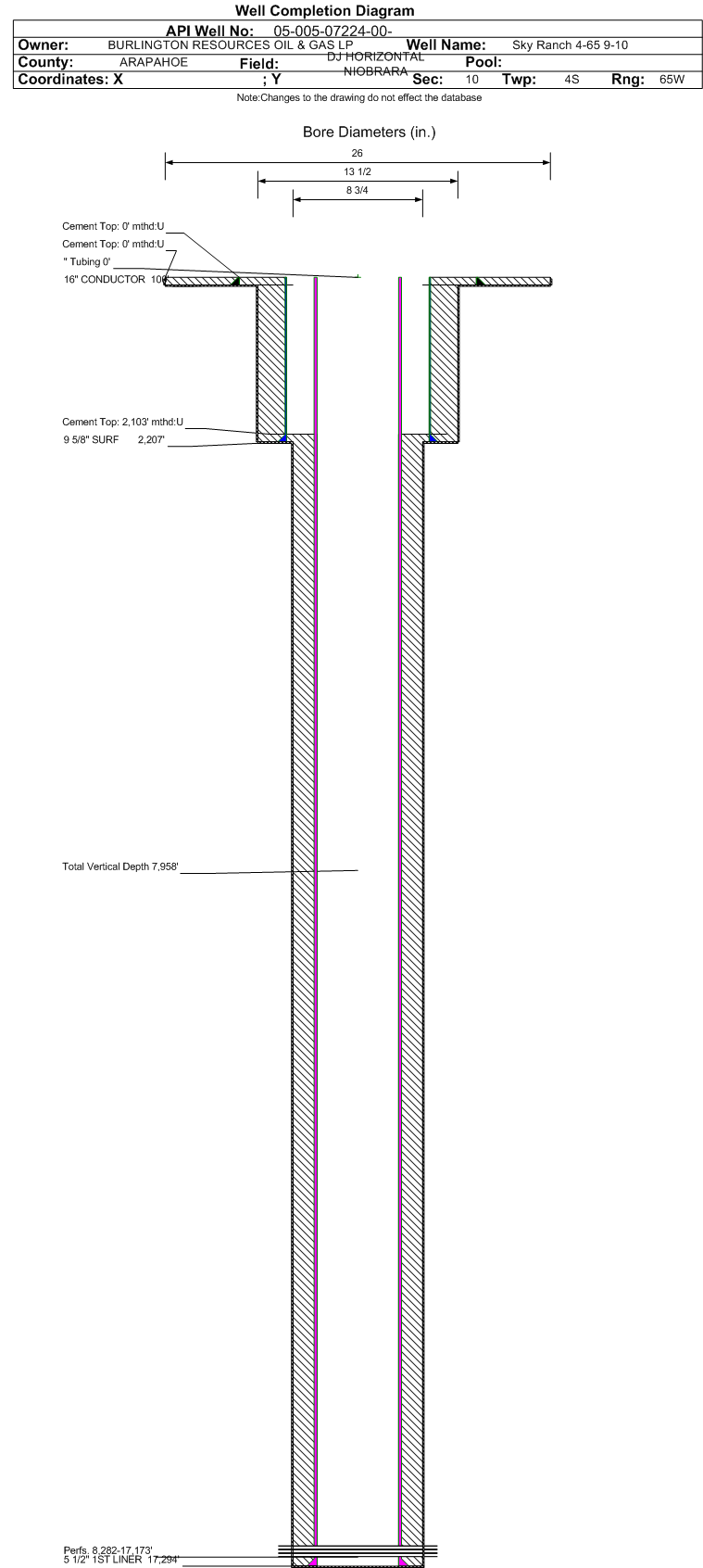

| Wellbore Completed | | Completion Date: | 9/22/2014 | | Spud Date: | 9/6/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 17305 ft. | Measured PB depth: | 17294 ft. | | True Vertical TD: | 7958 ft. | True Vertical PB depth: | 7958 ft. | | Top PZ Location: | Sec:10 Twp: 4S 65W | Footage: 663 FNL 1262 FEL | | Bottom Hole Location: | Sec:9 Twp: 4S 65W | Footage: 676 FNL 488 FWL | | Log Types: | LWD, Mud, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: CMP , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2207 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 0 ft., Bottom: 2207 ft., Determination Method: VISU | | Casing: | String Type: 1ST LINER, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17294 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 2465, Top: 2103 ft., Bottom: 17294 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHANNON | 5103 ft. | | N | N | | SUSSEX | 5594 ft. | | N | N | | SHARON SPRINGS | 7702 ft. | | N | N | | NIOBRARA | 7780 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 5/1/2025 Interval Top: 8282 ft. Interval Bottom: 17173 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/10/2014 | Treatment End Date: | 12/20/2014 | | Treatment Summary: | Frac 48 stages with 11,850,906 lbs total proppant including 1,452,738 lbs 100 Mesh + 10,398,168 lbs 40/70 in 277,493 bbls total base fluids. | | Total fluid used in treatment (bbls): | 277493 | Max pressure during treatment (psi): | 8841 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 48 | | Total acid used in treatment (bbls): | 3357 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 14714 | | Fresh water used in treatment (bbls): | 274136 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 11850906 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 536 | | BBLS_OIL | 1613 | | BTU_GAS | 1432 | | CALC_BBLS_H2O | 536 | | CALC_BBLS_OIL | 1613 | | CALC_GOR | 1661 | | CALC_MCF_GAS | 2679 | | GRAVITY_OIL | 41 | | MCF_GAS | 2679 | | TUBING_PRESS | 690 |
| | Perforation Data: | | Interval Top: | 8282 ft. | # Of Holes: | 1462 | | Interval Bottom: | 17173 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 8244 |
| Total Gas Produced (MCF) | 21657 |
| GOR | 2627 |
| GOR Determination | BOE |
| Average BOE per Day | 32.726 |
| Average MCFE per Day | 189.811 |
| Federal Financial Assurance | i | |
|
|
