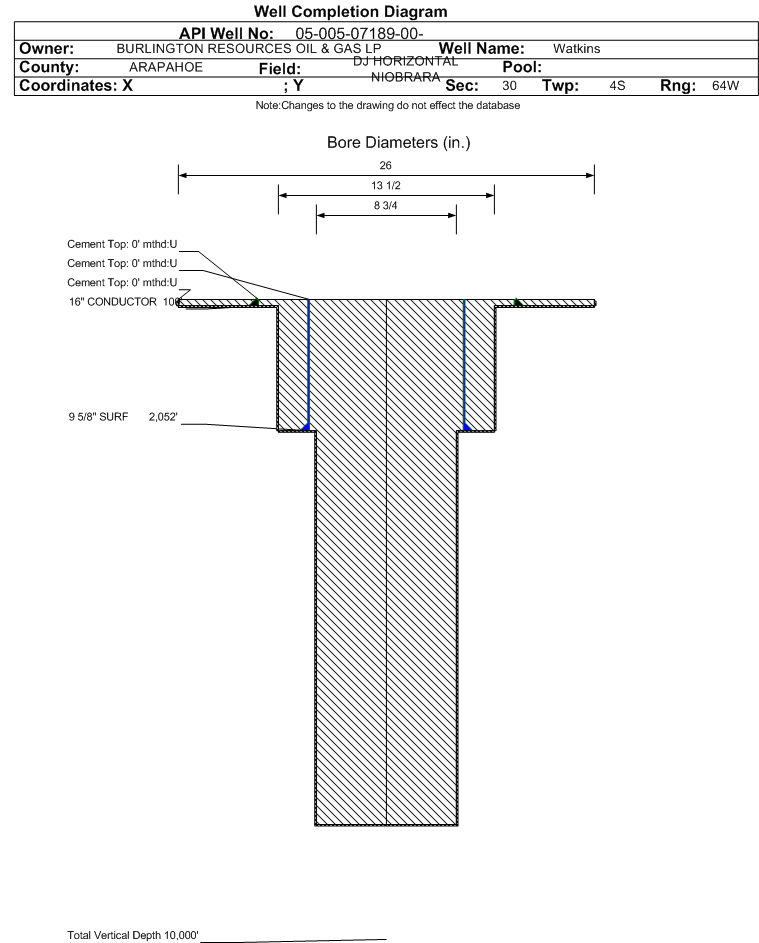

Wellbore #00 Wellbore Classification: OW Status: AB - 3/6/2014 Measured TD: 8203 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 3/6/2014 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 8/2/2014 | | Proposed Top PZ Location: | Sec:30 Twp: 4S 64W | Footage: 2280 FNL 350 FWL | | Bottom Hole Location: | Sec:30 Twp: 4S 64W | Footage: 2280 FNL 350 FWL | | Proposed Depth/Form: | 8203 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-447 , Unit Acreage: 640, Drill Unit: S.30:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 39.7 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 580, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8169 ft., Weight: 26# , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: 0 ft., Bottom: 8169 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7127 ft., Depth: 12525 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: , Bottom: | | Casing: | String Type: OPEN HOLE, Hole Size: 9.625 in., Size: 0 in., Top: 2060 ft., Depth: 8203 ft., Weight: 0 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 3/2/2014 | | Spud Date: | 3/1/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 8203 ft. | Measured PB depth: | 6925 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | LWD, MUD, Wireline | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: CMP , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2052 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 2052 ft., Determination Method: VISU | | Casing: | String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2052 ft., Depth: 8203 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 6976 ft., Depth: 7176 ft., Bottom: 8203 ft., Sacks: 340, Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4922 ft. | 5070 ft. | N | N | | SHANNON | 5257 ft. | 5470 ft. | N | N | | SHARON SPRINGS | 7534 ft. | 7662 ft. | N | N | | NIOBRARA | 7662 ft. | 7972 ft. | N | N | | FORT HAYS | 7972 ft. | 8000 ft. | N | N | | CARLILE | 8000 ft. | 8064 ft. | N | N | | GREENHORN | 8064 ft. | | N | N | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: SI - 10/1/2025 Measured TD: 12116 ft. Vertical TD: 7736 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW SI - 10/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/21/2016 | | Proposed Top PZ Location: | Sec:30 Twp: 4S 64W | Footage: 2300 FNL 930 FWL | | Bottom Hole Location: | Sec:30 Twp: 4S 64W | Footage: 2226 FNL 460 FEL | | Proposed Depth/Form: | 12158 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-447 , Unit Acreage: 640, Drill Unit: S. 30:All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 39.7 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2060 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 580, Top: 0 ft., Bottom: 2060 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12158 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 1170, Top: 1950 ft., Bottom: 12158 ft. |
| | |
| Wellbore Completed | | Completion Date: | 3/17/2014 | | Spud Date: | 3/1/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12116 ft. | Measured PB depth: | 12106 ft. | | True Vertical TD: | 7736 ft. | True Vertical PB depth: | 7736 ft. | | Top PZ Location: | Sec:30 Twp: 4S 64W | Footage: 2302 FNL 943 FWL | | Bottom Hole Location: | Sec:30 Twp: 4S 64W | Footage: 2231 FNL 482 FEL | | Log Types: | LWD, Mud, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: CMP , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2052 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 2052 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 12106 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1425, Top: 2880 ft., Bottom: 12106 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4922 ft. | 5070 ft. | N | N | | SHANNON | 5257 ft. | 5470 ft. | N | N | | SHARON SPRINGS | 7557 ft. | 7724 ft. | N | N | | NIOBRARA | 7724 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: SI - 10/1/2025 Interval Top: 8191 ft. Interval Bottom: 11936 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/30/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/12/2014 | Treatment End Date: | 7/2/2014 | | Treatment Summary: | Frac 22 stages w/ 6,845,454 lbs total proppant including 596,980 lbs 100 Mesh + 5,799,982 lbs 40/70 + 448,492 lbs CRC 40/70 in 171,167 bbls total base fluids. | | Total fluid used in treatment (bbls): | 171167 | Max pressure during treatment (psi): | 8677 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 22 | | Total acid used in treatment (bbls): | 2095 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 4165 | Total flowback volume recovered (bbls): | 13778 | | Fresh water used in treatment (bbls): | 164907 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6845454 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7185 ft. | | Tubing Packer Depth: | 7155 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/17/2014 | Test Method: | Flow | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 245 | | BBLS_OIL | 506 | | BTU_GAS | 1432 | | CALC_BBLS_H2O | 245 | | CALC_BBLS_OIL | 506 | | CALC_GOR | 1320 | | CALC_MCF_GAS | 668 | | GRAVITY_OIL | 41 | | MCF_GAS | 668 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 8191 ft. | # Of Holes: | 624 | | Interval Bottom: | 11936 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3802 |
| Total Gas Produced (MCF) | 1950 |
| GOR | 512 |
| GOR Determination | BOE |
| Average BOE per Day | 9.180 |
| Average MCFE per Day | 53.254 |
