COGIS

Facility Detail

COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-07076		Well Classification: DA Status: PA - 9/21/1995
Well Name/No:UPRR 17 PAN AM #7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MOORE INC* L P - 59920
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/21/1995
FacilityID:204941LocationID:378404
County:ARAPAHOE #005Location:NESW 29 4S60W 6
Field:PEORIA - #68350Elevation:5202 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1986 FWLLat/Long: 39.672506 / -104.127906Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/21/1995             Measured TD: 3830 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/21/1995
Wellbore Permit
Permit #:19941885 Expiration Date:6/11/1995
Proposed Depth/Form:4000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: PRKM , Formation: PARKMAN , Order: 226 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/17/1996
Spud Date:3/12/1996Spud Date Is:ACTUAL
Measured TD:3830 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:

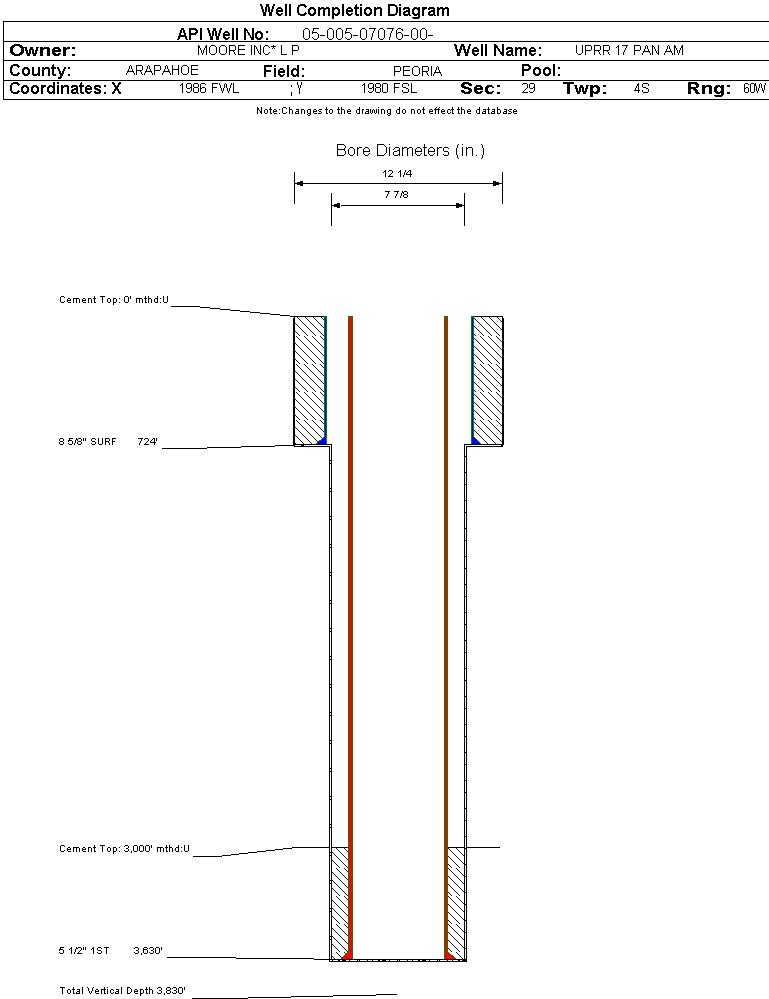

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 724 ft., Weight: 24 , Citings Type: HISTORICAL
Cement:Sacks: , Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 3630 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 3000 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3640 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/21/1995
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
