COGIS - WELL SCOUT CARD

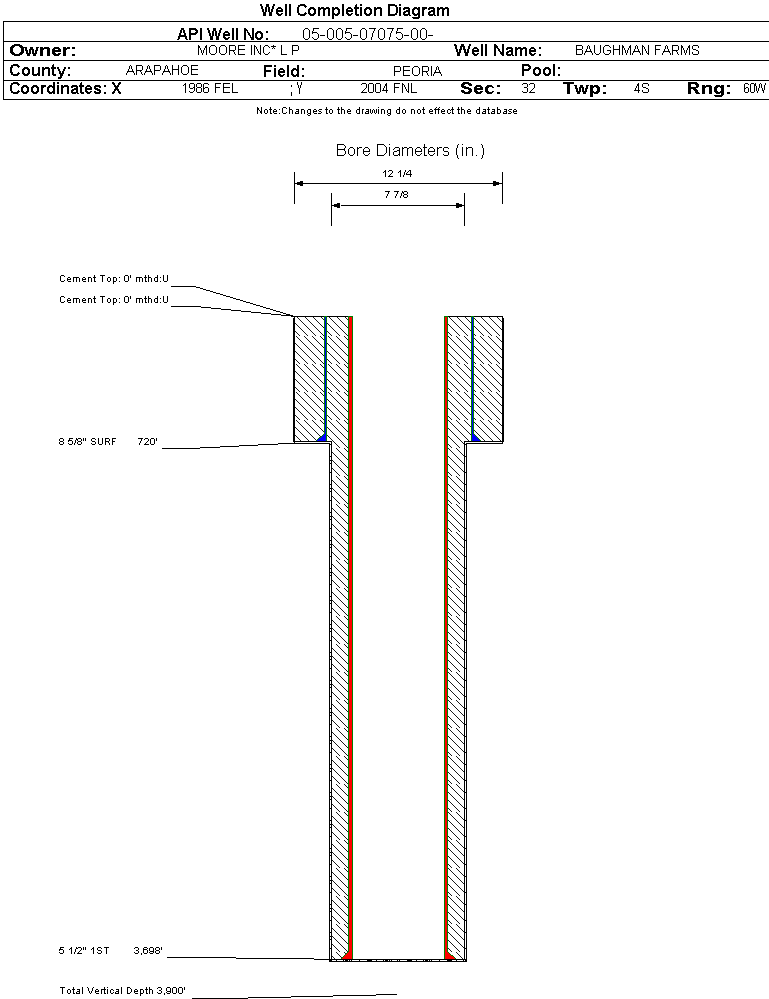

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-07075		Well Classification: DA Status: PA - 9/21/1995
Well Name/No:BAUGHMAN FARMS #6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MOORE INC* L P - 59920
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/21/1995
FacilityID:204940LocationID:378403
County:ARAPAHOE #005Location:SWNE 32 4S60W 6
Field:PEORIA - #68350Elevation:5268 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2004FNL  1986 FELLat/Long: 39.661627 / -104.123465Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/21/1995             Measured TD:     Vertical TD: 3900 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/21/1995
Wellbore Permit
Permit #:19941815 Expiration Date:5/21/1995
Proposed Depth/Form:4000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: PRKM , Formation: PARKMAN , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:3/15/1995
Measured TD:Measured PB depth:
True Vertical TD:3900 ft.True Vertical PB depth:3900 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 720 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3698 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3708 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/21/1995
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
