COGIS - WELL SCOUT CARD

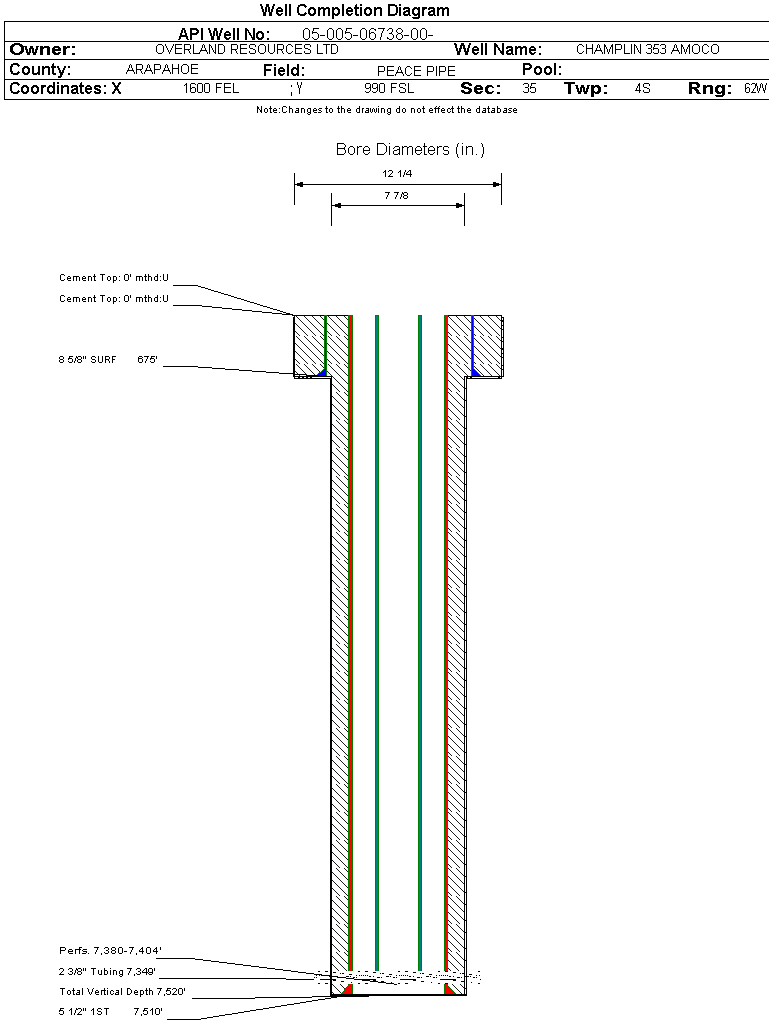

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-005-06738		Well Classification: GW Status: SI - 6/1/2018
Well Name/No:CHAMPLIN 353 AMOCO #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BEHRENS RESOURCES INC - 10695
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2018
FacilityID:204653LocationID:320722
County:ARAPAHOE #005Location:SWSE 35 4S62W 6
Field:PEACE PIPE - #67900Elevation:5620 ft.
Planned Location:990FSL  1600 FELLat/Long: 39.654396 / -104.290610Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.654390 / -104.290440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2018             Measured TD: 7520 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2018
Wellbore Permit
Permit #:19761234 Expiration Date:11/18/1977
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: SWSE
Wellbore Completed
Completion Date:12/5/1976
Spud Date:11/13/1976Spud Date Is:ACTUAL
Measured TD:7520 ft.Measured PB depth:7482 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 675 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 675 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7510 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6359 ft., Bottom: 7510 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1442 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 1442 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1240 ft.
J SAND7330 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 6/1/2018                  Interval Top: 7380 ft.    Interval Bottom: 7404 ft.

 Completed Information for Formation J SAND
1st Production Date:12/7/1976Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/5/1976
Treatment Summary:SEE SCAN DOCUMENT # 378012
Tubing Size:2.375 in.Tubing Setting Depth:7349 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/1976Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 19
CALC_BBLS_H2O 20
CALC_BBLS_OIL 19
CALC_MCF_GAS 2034
CASING_PRESS 450
MCF_GAS 2034
TUBING_PRESS 400
Perforation Data:
Interval Top:7380 ft.# Of Holes:
Interval Bottom:7404 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
05/31/2018
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
